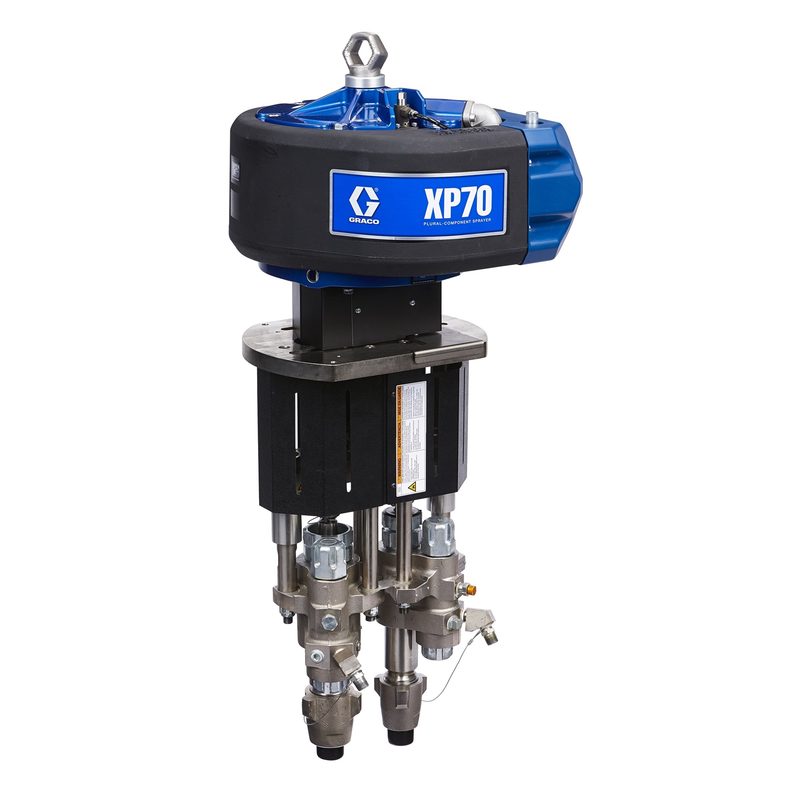

Graco XP70 Hazardous Location Proportioning Pump Package, 1.5:1 Mix Ratio

Graco 571150 XP70 Hazardous Location Proportioning Pump Package, 1.5:1 Mix Ratio, part number 571150. Graco XP70 Hazardous Location Proportioning Pump Package plural component sprayer. Air power source. 7250 psi maximum working pressure. All values read from the Graco product page (571150 on graco.com).

Brand

Graco Family: XP70 Hazardous Location Proportioning Pump Package Part number: 571150 Air Inlet Size (in): 3/4 Air Inlet Thread Gender: Female Air Inlet Thread Type: NPSM Applicator Type: Automatic Airless, Manual Airless Compatible material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents Component Type: Plural-Component Configuration: Bare (Motors and Lowers Only) Fluid Inlet Size (in): 1-1/4 Fluid Inlet Thread Gender: Male Fluid Inlet Thread Type: NPSM Fluid Outlet Size (in): 1/2 Fluid Outlet Thread Gender: Female Fluid Outlet Thread Type: NPT Flush Type: Solvent Includes: Motor, Pump Lowers material Application: Coatings, Paints, Primers Maximum Air Consumption (SCFM): 75 scfm/gpm at 100 psi Maximum Air Inlet Pressure (MPa): 1.21 Maximum Air Inlet Pressure (psi): 175 Maximum Cycle Rate (CPM): 40 Maximum Flow Rate (GPM): 1.5 Maximum Flow Rate (cc/min): 5680 Maximum Fluid Temperature (°F): 160 Maximum Fluid Viscosity (cP): 20000 Maximum Hose Length (ft): 300 Maximum Operating Temperature (°F): 130 Maximum Spray Pressure (MPa): 50 Maximum Spray Pressure (psi): 7250 Maximum Working Pressure (MPa): 50 Maximum Working Pressure (psi): 7250 Measuring Type: Fixed Mechanical Positive Displacement minimum Fluid Viscosity (cP): 200 Mix Accuracy (%): +/- 5 Mix Ratio: 1.5:1 Number of Catalysts: 1 Number of Reducers: 0 Number of Resin Colors: 1 Number of Tanks: 0 Overall Depth (in): 52 Overall Height (in): 62 Overall Width (in): 32 Power Source: Air Product Type: Plural Component Series: XP70 Sound Power Level (dB(A)): 98 Sound Pressure Level (dB(A)): 86 Type: Plural Component Sprayer Weight (lb): 286 Wetted material: Carbon Steel with Electroless Nickel Plating, Plated Carbon Steel, Stainless Steel, Carbide, Acetal, UHMWPE, Nylon, PTFE Solvent Resistant Plastics, Carbon Filled PTFE, Aluminum Maximum Air Inlet Pressure (bar): 12.07 Maximum Air Inlet Pressure (kPa): 1207 Maximum Flow Rate (L/min): 5.68 Maximum Fluid Temperature (°C): 71 Maximum Hose Length (m): 91.4 Maximum Operating Temperature (°C): 54 Maximum Spray Pressure (bar): 500 Maximum Spray Pressure (kPa): 50000 Maximum Working Pressure (bar): 500 Maximum Working Pressure (kPa): 50000 Overall Depth (cm): 132.1 Overall Depth (mm): 1321 Overall Height (cm): 157.5 Overall Height (mm): 1575 Overall Width (cm): 81.3 Overall Width (mm): 813 Weight (kg): 130

Material

Carbon Steel with Electroless Nickel Plating, Plated Carbon Steel, Stainless Steel, Carbide, Acetal, UHMWPE, Nylon, PTFE Solvent Resistant Plastics, Carbon Filled PTFE, Aluminum

Pressure Rating

7250 psi max

Temperature Range

up to 130 °F

HS Code

8424.20
