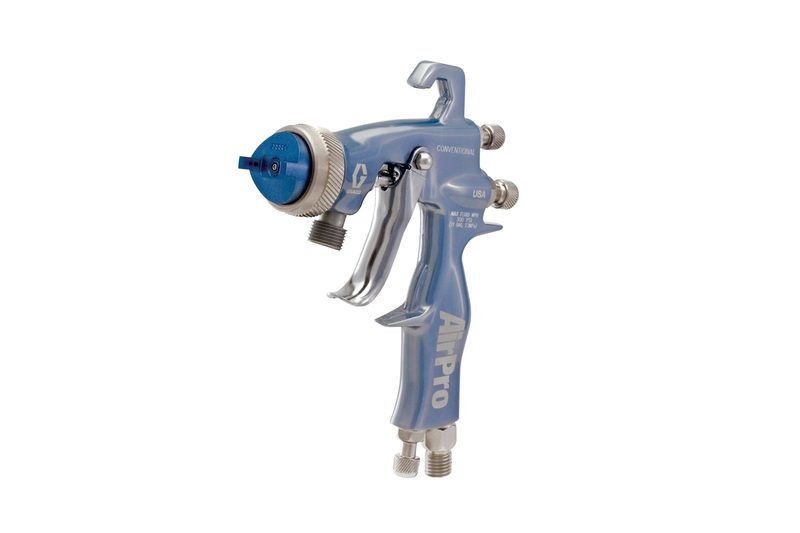

Graco AirPro Conventional air spray gun, pressure feed, 0.040 in. (1.0 mm) fluid nozzle
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 289109 AirPro Conventional air spray gun, part number 289109, a pressure feed hand-held finishing spray gun with a 0.040 in. (1.0 mm) fluid nozzle. Maximum fluid pressure 300 psi (2.1 MPa); maximum air pressure 100 psi (0.7 MPa). Conventional air-spray technology. Listed compatible coatings: Non Grain Raising, Solventborne, Stain, Wood Toner, UV Coating, Waterborne. Supplied with: Air Cap, Needle Assembly, Nozzle, Tool Kit. All values read from the Graco product page (289109 on graco.com).
Technical Specifications
- Brand
- Graco
- Model
- AirPro air spray gun
- Part number
- 289109
- Gun technology
- Conventional
- Feed type
- Pressure Feed
- Fluid orifice (nozzle) size
- 0.040 in. (1.0 mm)
- Maximum fluid pressure
- 300 psi (2.1 MPa)
- Maximum air pressure
- 100 psi (0.7 MPa)
- Maximum fluid temperature
- 109 °F
- Fluid inlet size
- 3/8 in.
- Air inlet size
- 1/4 in.
- Bleed type
- Non-Bleeder
- Application
- Wood
- Compatible material
- Non Grain Raising, Solventborne, Stain, Wood Toner, UV Coating, Waterborne
- Includes
- Air Cap, Needle Assembly, Nozzle, Tool Kit
Standards & Compliance
- Pressure Rating
- 300 psi (2.1 MPa) max fluid
- Temperature Range
- Up to 109 °F fluid
- HS Code
- 8424.20
Compatibility & Fitment
AirPro is Graco's air-spray finishing gun family. This pressure feed Conventional configuration is selected by coating type and required finish; the 0.040 in. fluid nozzle is matched to coating viscosity and flow. Air cap, needle and nozzle are supplied as a matched set per the Includes list. Confirm the air and fluid supply, and the cup option, suit the application before ordering.
