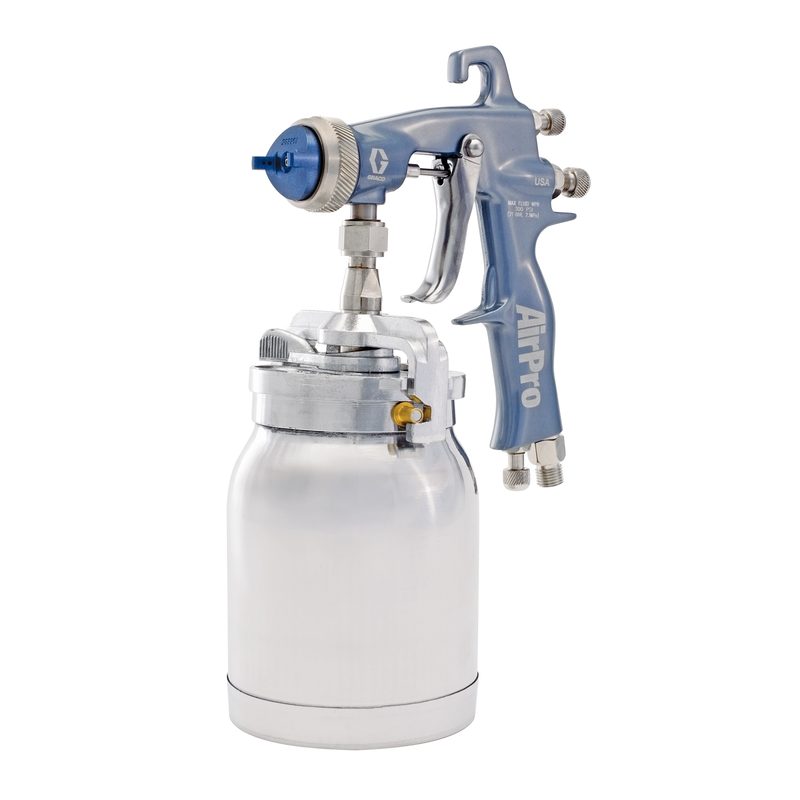

Graco AirPro HVLP air spray gun, siphon feed, 0.055 in. (1.4 mm) fluid nozzle, for specialty applications, with cup

Graco 289030 AirPro HVLP air spray gun, part number 289030, a siphon feed hand-held finishing spray gun with a 0.055 in. (1.4 mm) fluid nozzle, for specialty applications. Supplied complete with cup. Maximum fluid pressure 300 psi (2.1 MPa); maximum air pressure 100 psi (0.7 MPa). HVLP air-spray technology. Listed compatible coatings: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne. Supplied with: Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup. All values read from the Graco product page (289030 on graco.com).

Brand

Graco

Model

AirPro air spray gun

Part number

289030

Gun technology

HVLP

Feed type

Siphon Feed

Fluid orifice (nozzle) size

0.055 in. (1.4 mm)

Maximum fluid pressure

300 psi (2.1 MPa)

Maximum air pressure

100 psi (0.7 MPa)

Maximum fluid temperature

109 °F

Fluid inlet size

3/8 in.

Air inlet size

1/4 in.

Bleed type

Non-Bleeder

Application

Specialty

Compatible material

CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne

Includes

Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup

Pressure Rating

300 psi (2.1 MPa) max fluid

Temperature Range

Up to 109 °F fluid

HS Code

8424.20
