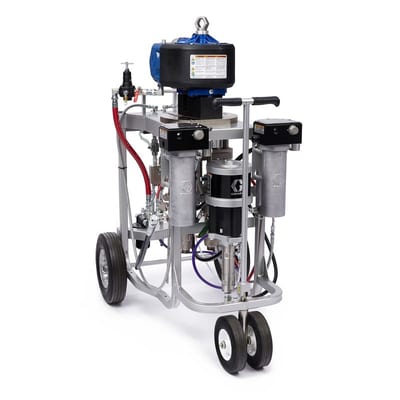

Graco XP35 Hazardous Location Spray Package, Cart, 1:1 Mix Ratio, Solvent Pump, Heaters, XTR Gun, 240V

Graco 281103 XP35 Hazardous Location Spray Package, Cart, 1:1 Mix Ratio, Solvent Pump, Heaters, XTR Gun, 240V, part number 281103. Graco XP35 Hazardous Location Spray Package plural component sprayer. Air power source. 3500 psi maximum working pressure. All values read from the Graco product page (281103 on graco.com).

Brand

Graco Family: XP35 Hazardous Location Spray Package Part number: 281103 Air Inlet Size (in): 3/4 Air Inlet Thread Gender: Female Air Inlet Thread Type: NPSM Applicator Type: Automatic Airless, Manual Airless Compatible material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents Component Type: Plural-Component Configuration: Cart Mount with 7 gallon (26.5 Liter) Hopper Fluid Inlet Size (in): 1-1/4 Fluid Inlet Thread Gender: Male Fluid Inlet Thread Type: NPSM Fluid Outlet Size (in): 1/2 Fluid Outlet Thread Gender: Female Fluid Outlet Thread Type: NPT Flush Type: Solvent Hose Length (ft): 35 Includes: material Hoses, XTR-5 Gun, NXT 3400 Air Motor, Cart, IS Fluid Heater, Solvent Flush Pump material Application: Coatings, Paints, Primers Maximum Air Consumption (SCFM): 50 scfm/gpm at 100 psi Maximum Air Inlet Pressure (MPa): 1.21 Maximum Air Inlet Pressure (psi): 175 Maximum Cycle Rate (CPM): 40 Maximum Flow Rate (GPM): 1.9 Maximum Flow Rate (cc/min): 7200 Maximum Fluid Temperature (°F): 160 Maximum Fluid Viscosity (cP): 20000 Maximum Hose Length (ft): 300 Maximum Operating Temperature (°F): 130 Maximum Spray Pressure (MPa): 24.1 Maximum Spray Pressure (psi): 3500 Maximum Working Pressure (MPa): 24 Maximum Working Pressure (psi): 3500 Measuring Type: Fixed Mechanical Positive Displacement minimum Fluid Viscosity (cP): 200 Mix Accuracy (%): +/- 5 Mix Ratio: 1:1 Number of Catalysts: 1 Number of Reducers: 0 Number of Resin Colors: 1 Number of Tanks: 0 Overall Depth (in): 52 Overall Height (in): 62 Overall Width (in): 35 Power Source: Air Product Type: Plural Component Series: XP35 Sound Power Level (dB(A)): 98 Sound Pressure Level (dB(A)): 86 Type: Plural Component Sprayer Weight (lb): 575 Wetted material: Carbon Steel with Electroless Nickel Plating, Plated Carbon Steel, Stainless Steel, Carbide, Acetal, UHMWPE, Nylon, PTFE Solvent Resistant Plastics, Carbon Filled PTFE, Aluminum Hose Length (m): 10.7 Maximum Air Inlet Pressure (bar): 12.07 Maximum Air Inlet Pressure (kPa): 1207 Maximum Flow Rate (L/min): 7.2 Maximum Fluid Temperature (°C): 71 Maximum Hose Length (m): 91.4 Maximum Operating Temperature (°C): 54 Maximum Spray Pressure (bar): 241 Maximum Spray Pressure (kPa): 24100 Maximum Working Pressure (bar): 241 Maximum Working Pressure (kPa): 24100 Overall Depth (cm): 132.1 Overall Depth (mm): 1321 Overall Height (cm): 157.5 Overall Height (mm): 1575 Overall Width (cm): 88.9 Overall Width (mm): 889 Weight (kg): 261 Voltage: 240 V

Material

Carbon Steel with Electroless Nickel Plating, Plated Carbon Steel, Stainless Steel, Carbide, Acetal, UHMWPE, Nylon, PTFE Solvent Resistant Plastics, Carbon Filled PTFE, Aluminum

Pressure Rating

3500 psi max

Temperature Range

up to 130 °F

HS Code

8424.20
