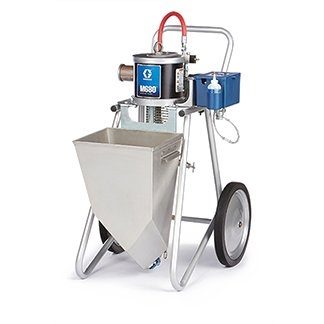

Graco ToughTek M680A CS Package, Flex Hose Applicator

Graco 27A489 ToughTek M680a CS Package, Flex Hose Applicator, part number 27A489. Graco ToughTek M680a piston pump for pumping and spraying cementitious and high-viscosity materials (mortar, plaster, render, stucco, self-levelling underlayment, fireproofing). 600 psi (41 bar) maximum working pressure. 10.8 GPM maximum flow. Compatible material: Cementitious material. All values read from the Graco product page (27A489 on graco.com).

Brand

Graco Line: ToughTek Model: M680a Part number: 27A489 Application: Mortar Compatible material: Cementitious material Fluid Outlet Size (in): 1-1/2 Fluid Section Type: 2-Ball material: Repair Mortar Maximum Continuous Cycle Rate (CPM): 60 Maximum Flow Rate (GPM): 10.8 Maximum Operating Temperature (°F): 120 Maximum Working Pressure (psi): 600 minimum Operating Temperature (°F): 32 Portable: Portable Type: Pneumatic Piston Pump Weight (lb): 250 Fluid Outlet Size (mm): 38.1 Maximum Flow Rate (L/min): 41.2 Maximum Operating Temperature (°C): 49 Maximum Working Pressure (bar): 41 minimum Operating Temperature (°C): 0 Weight (kg): 113

Pressure Rating

600 psi (41 bar) max working

Temperature Range

up to 120 °F (49 °C)

HS Code

8413.50
