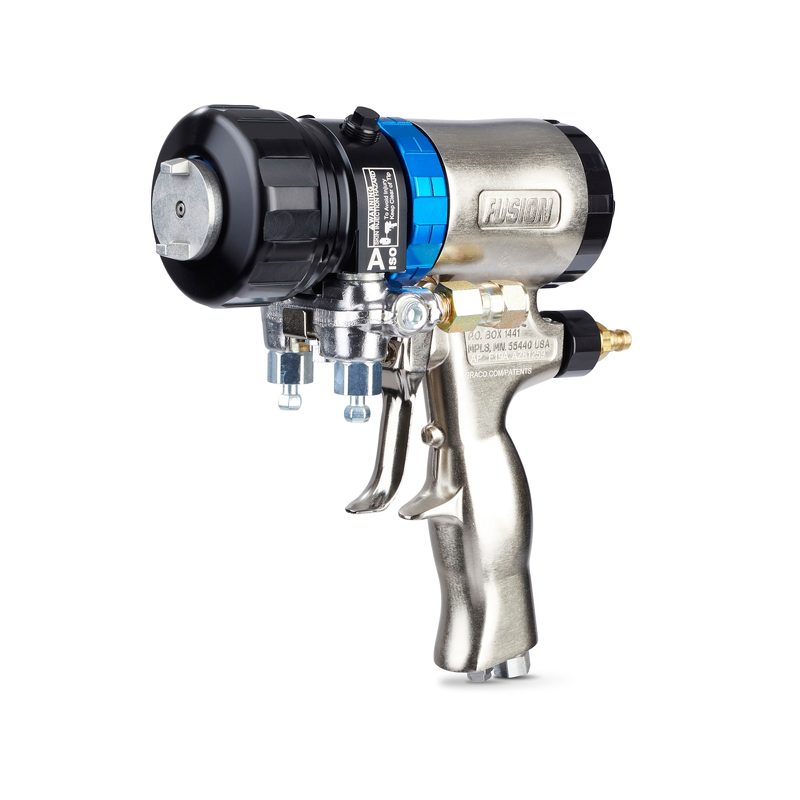

Graco Fusion ProConnect Gun without Mix Chamber
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 25P591 Fusion ProConnect Gun without Mix Chamber, part number 25P591. Fusion PC Round plural-component impingement-mix spray gun, 0.042 in (1.07 mm) fluid orifice, Round spray pattern. Maximum fluid pressure 3500 psi (241 bar). Maximum fluid temperature 200 °F. Compatible material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam. All values read from the Graco product page (25P591 on graco.com).
Technical Specifications
- Brand
- Graco Model: Fusion PC Series: Round Part number: 25P591 Type: Spray Gun Gun type: Air Purge Gun Component type: Plural-Component Applicator type: Manual Trigger type: Two-Finger Compatible material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam Spray pattern: Round Pattern size: NA Fluid orifice size: 0.042 in (1.07 mm) Mix chamber: No Mix Chamber Maximum fluid pressure: 3500 psi (241 bar) Maximum fluid working pressure: 3500 psi (245 bar) Maximum air inlet pressure: 130 psi (9 bar) minimum air inlet pressure: 80 psi (5.5 bar) Maximum fluid temperature: 200 °F (93 °C) Maximum flow rate @ pressure: 50 lb/min Air inlet size: 1/4 in NPT Component A inlet size: 1/2-20 in UNF Component B inlet size: 9/16-18 in UNF Sound pressure level: 81.1 dB(A) Sound power level: 91 dB(A) Gun weight: 2.95 lb (1.3 kg) Overall length: 8 in (203 mm) Overall height: 8.1 in (206 mm) Overall width: 3.3 in (84 mm) For use with: Non-Flammable Foam and Polyurea
Standards & Compliance
- Pressure Rating
- 3500 psi (241 bar) max fluid
- Temperature Range
- up to 200 °F (93 °C)
- HS Code
- 8424.20
Compatibility & Fitment
Fusion is Graco's plural-component impingement-mix spray-gun line for the Reactor proportioner range. Round series; Air Purge Gun; 0.042 in fluid orifice; mix chamber No Mix Chamber; Round spray pattern. Confirm orifice size, mix chamber/module and spray pattern match the material and output before ordering.
Product Documentation
More from Graco
Graco
Graco Fusion ProConnect Retrofit Kit with Round 00 Mix Chamber and 0.029 in (0.74 mm) Orifice Size
25P700
Graco
Graco Fusion ProConnect Retrofit Kit with Round 01 Mix Chamber and 0.042 in (1.06 mm) Orifice Size
25P701
Graco
Graco Fusion ProConnect Retrofit Kit with Round 02 Mix Chamber and 0.052 in (1.3 mm) Orifice Size
25P702
Graco
Graco Fusion ProConnect Retrofit Kit with Round 01-02 Mix Chamber and 0.047 in (1.2 mm) Orifice Size
25P703
Graco
Graco Fusion ProConnect Gun with Round 00-01 Mix Chamber and 0.037 in (0.94 mm) Orifice Size
25R084
Graco
Graco Fusion ProConnect Gun with Round 03 Mix Chamber and 0.060 in (1.5 mm) Orifice Size
25R085
Graco
Graco Fusion ProConnect Gun with Flat 00 Mix Chamber and 0.029 in (0.74 mm) Orifice Size
25R086
Graco
Graco Fusion ProConnect Retrofit Kit with Round 00-01 Mix Chamber and 0.037 in (0.94 mm) Orifice Size
25R087
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 25P591?
- 25P591 can be ordered from cballast.com as a Graco catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Graco product?
- The manufacturer part number is 25P591.
- What is the HS code for 25P591?
- The customs tariff (HS) code for 25P591 is 8424.20.
- Who manufactures 25P591?
- 25P591 is a Graco product in the Tools & Workshop Consumables range.
- Is a datasheet available for 25P591?
- Yes — the 25P591 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 25P591?
- The minimum order quantity is 1.
- Is 25P591 available?
- Yes — 25P591 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
