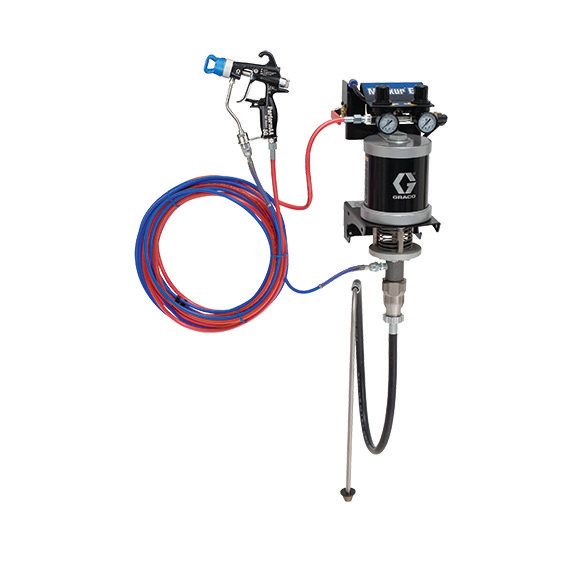

Graco Merkur ES 30:1 air-assisted airless sprayer package, wall mount, PerformAA 50 Air Assist gun, stainless steel pump sleeve, with suction hose
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 24F152 Merkur ES 30:1 air-assisted airless sprayer package, part number 24F152. Pump ratio 30:1; maximum working pressure 3000 psi (207 bar); maximum fluid flow 0.4 gpm (1.5 lpm). Supplied with the PerformAA 50 Air Assist applicator. Wall Mount. Pump sleeve material: Stainless Steel. Includes: PerformAA 50 Gun, Suction Hose, Wall Mount. All values read from the Graco product page (24F152 on graco.com).
Technical Specifications
- Brand
- Graco
- Model
- Merkur
- Series
- ES
- Part number
- 24F152
- Product type
- Spray Package
- Pump ratio
- 30:1
- Maximum working pressure
- 3000 psi (207 bar) (20.7 MPa)
- Maximum flow rate
- 0.4 gpm (1.5 lpm)
- Maximum tip size
- 0.019 in. (0.4826 mm)
- Pump type
- Pneumatic Piston Pump
- Pump sleeve material
- Stainless Steel
- Motor type
- Pneumatic
- Power source
- Air
- Gun model
- PerformAA 50 Air Assist
- Gun technology
- Air-Assisted
- Number of guns
- 1
- Spray type
- Air-Assisted
- Pressure type
- High Pressure
- Mount type
- Wall Mount
- Fluid outlet size
- 1/4 in. (6.35 mm)
- Fluid outlet thread type
- NPSM
- Maximum hose length
- 25 ft (7.6 m)
- Weight
- 23 lb (10.4 kg)
- Wetted material
- Stainless Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Engineered Plastic, Nylon, Fluoroelastomer, Polyethylene
- Includes
- PerformAA 50 Gun, Suction Hose, Wall Mount
Standards & Compliance
- Material
- Pump sleeve: Stainless Steel
- Pressure Rating
- 3000 psi (207 bar) max working
- HS Code
- 8424.20
Compatibility & Fitment
Merkur is Graco's pneumatic piston pump / air-assisted spray line. The 30:1 pump ratio sets the fluid pressure from the air supply; the stainless steel pump sleeve is matched to the fluid being handled (a stainless sleeve resists more corrosive or waterborne fluids than a plated-steel sleeve). The PerformAA 50 Air Assist gun is included; confirm the tip size suits the coating and required finish. Confirm the air supply and mount suit the installation before ordering.
Product Documentation
More from Graco
Graco
Graco Merkur ES 30:1 air-assisted airless sprayer package, stand mount, PerformAA 50 Air Assist gun, stainless steel pump sleeve, with suction hose
24F153
Graco
Graco Merkur ES 30:1 airless sprayer package, wall mount, PerformAA 50 Airless gun, with suction hose
24F154
Graco
Graco Merkur ES 30:1 airless sprayer package, stand mount, PerformAA 50 Airless gun, carbon steel pump sleeve, with suction hose
24F155
Graco
Graco Merkur ES 30:1 air-assisted airless sprayer package, wall mount, PerformAA 50 Air Assist gun, with suction hose
24F156
Graco
Graco Merkur ES 30:1 air-assisted airless sprayer package, stand mount, PerformAA 50 Air Assist gun, carbon steel pump sleeve, with suction hose
24F157
Graco
Graco Merkur ES 15:1 air-assisted airless sprayer package, wall mount, PerformAA 15 Air Assist gun, stainless steel pump sleeve, with suction hose
24F158
Graco
Graco Merkur ES 15:1 air-assisted airless sprayer package, stand mount, PerformAA 15 Air Assist gun, stainless steel pump sleeve, with suction hose
24F159
Graco
Graco Merkur ES 15:1 air-assisted airless sprayer package, stand mount, PerformAA 15 Air Assist gun, carbon steel pump sleeve, with hopper
24W281
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 24F152?
- 24F152 can be ordered from cballast.com as a Graco catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Graco product?
- The manufacturer part number is 24F152.
- What is the HS code for 24F152?
- The customs tariff (HS) code for 24F152 is 8424.20.
- Who manufactures 24F152?
- 24F152 is a Graco product in the Tools & Workshop Consumables range.
- Is a datasheet available for 24F152?
- Yes — the 24F152 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 24F152?
- The minimum order quantity is 1.
- Is 24F152 available?
- Yes — 24F152 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
