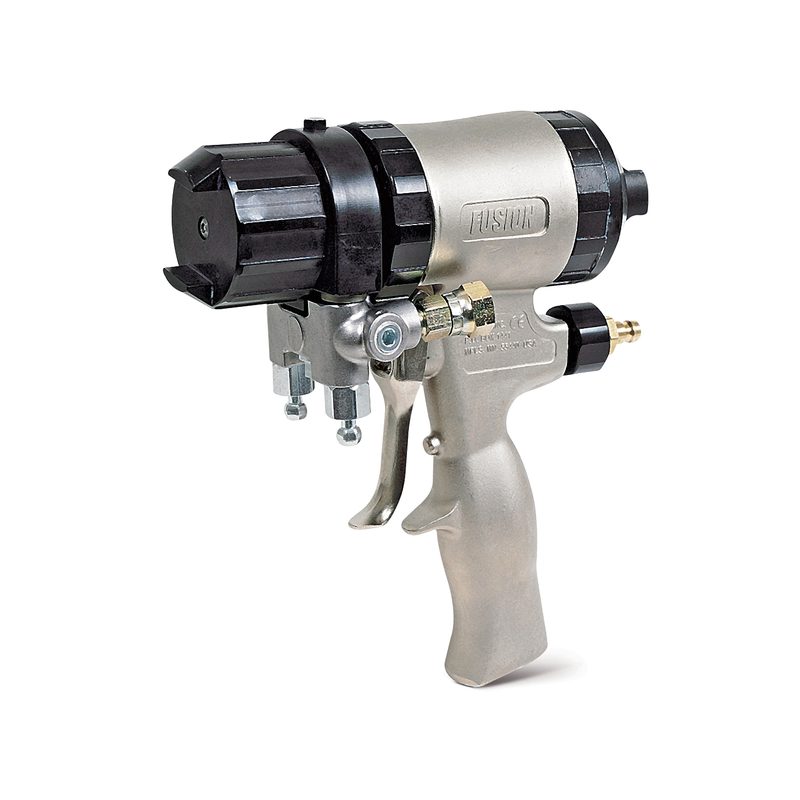

Graco Flat Pattern Fusion Mechanical Purge Direct Impingement Gun, 0.024 in (0.61 mm) Orifice Size & Mix Chamber, 0.013 in (0.33 mm) Impingement Port

Graco 247051 Flat Pattern Fusion Mechanical Purge Direct Impingement Gun, 0.024 in (0.61 mm) Orifice Size & Mix Chamber, 0.013 in (0.33 mm) Impingement Port, part number 247051. Fusion MP Direct Impingement plural-component impingement-mix spray gun, 0.024 in (0.61 mm) fluid orifice, Flat spray pattern. Maximum fluid pressure 3500 psi (241 bar). Maximum fluid temperature 200 °F. Compatible material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam. All values read from the Graco product page (247051 on graco.com).

Brand

Graco Model: Fusion MP Series: Direct Impingement Part number: 247051 Type: Spray Gun Gun type: Mechanical-Purge Compatible material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam Impingement type: Direct Impingement (DI) Spray pattern: Flat Pattern size: 10 in @ 24 in from target Fluid orifice size: 0.024 in (0.61 mm) Mix module: .013 Maximum fluid pressure: 3500 psi (241 bar) Maximum air inlet pressure: 130 psi (9 bar) minimum air inlet pressure: 80 psi (5.5 bar) Maximum fluid temperature: 200 °F (93 °C) Maximum flow rate @ pressure: 50 lb/min Sound pressure level: 70 dB(A) Sound power level: 79.9 dB(A) Gun weight: 2.9 lb (1.32 kg) Overall length: 7.6 in (193 mm) Overall height: 8.1 in (206 mm) Overall width: 3.1 in (79 mm)

Pressure Rating

3500 psi (241 bar) max fluid

Temperature Range

up to 200 °F (93 °C)

HS Code

8424.20
