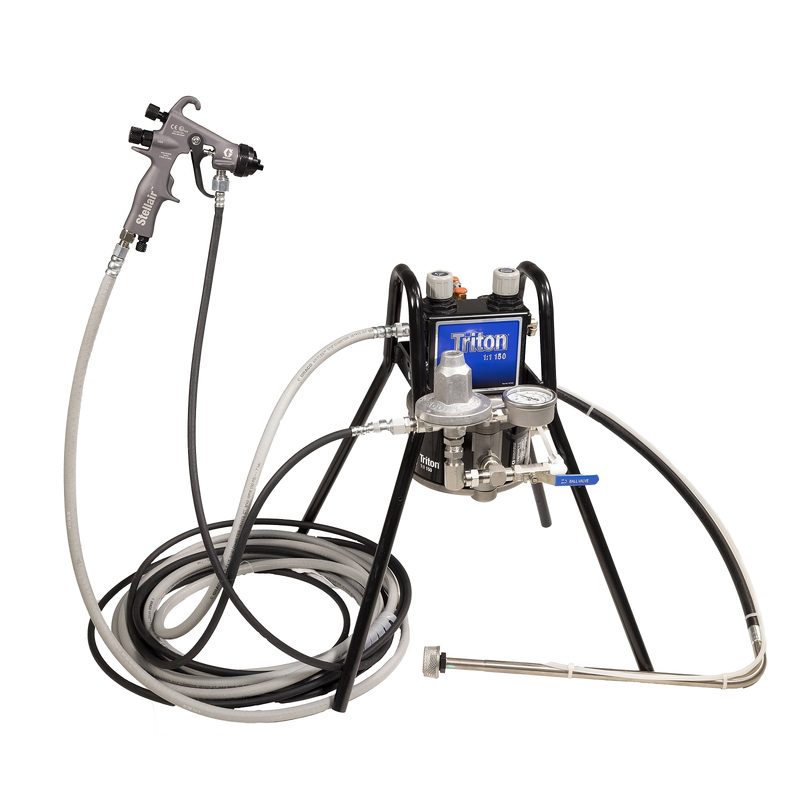

Graco Triton 308 8.5 gpm stainless steel spray package, stand mount, Stellair Conventional gun
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 233476 Triton 308 8.5 gpm stainless steel spray package, stand mount, Stellair Conventional gun, part number 233476. Pneumatic Diaphragm Pump, 1:1 pump ratio. Maximum working pressure 100 psi (7 bar); maximum fluid flow 8.5 gpm (32 lpm). Stainless Steel fluid section. Stand Mount. Supplied with the Stellair Conventional applicator. Includes: 25 ft Air Hose, 25 ft Fluid Hose, Applicator. All values read from the Graco product page (233476 on graco.com).
Technical Specifications
- Brand
- Graco
- Model
- Triton
- Series
- 308
- Part number
- 233476
- Product type
- Spray Package
- Material
- Stainless Steel
- Pump type
- Pneumatic Diaphragm Pump
- Pump ratio
- 1:1
- Power source
- Air
- Maximum working pressure
- 100 psi (7 bar)
- Maximum flow rate
- 8.5 gpm (32 lpm)
- Maximum air inlet pressure
- 100 psi (7 bar)
- Pressure type
- Low Pressure
- Gun model
- Stellair
- Gun technology
- Conventional
- Gun type
- Air Spray
- Sprayer type
- Air Spray
- Mount type
- Stand Mount
- Feed type
- Suction Hose
- Fluid inlet size
- 3/4 in. (19.05 mm)
- Fluid inlet thread type
- NPT
- Fluid outlet size
- 3/8 in. (9.525 mm)
- Fluid outlet thread type
- NPT
- Compatible material
- CARC, Enamel, Epoxy, High Solids, Latex, Lacquer, Metallics, Stain, Single-Component, Solventborne Paints, Solventborne, Varnish Primer, Waterborne
- Application
- Metal
- Weight
- 27 lb (12.25 kg)
- Includes
- 25 ft Air Hose, 25 ft Fluid Hose, Applicator
Standards & Compliance
- Material
- Stainless Steel
- Pressure Rating
- 100 psi (7 bar) max working
- HS Code
- 8424.20
Compatibility & Fitment
Triton is Graco's air-powered (pneumatic diaphragm) finishing pump line. The 1:1 pump ratio feeds fluid at supply-air pressure; the stainless steel fluid section is matched to the coating being handled. The Stellair Conventional gun is included; included items: 25 ft Air Hose, 25 ft Fluid Hose, Applicator. confirm the gun nozzle suits the coating and required finish. Confirm the compressed-air supply and mount suit the installation before ordering.
