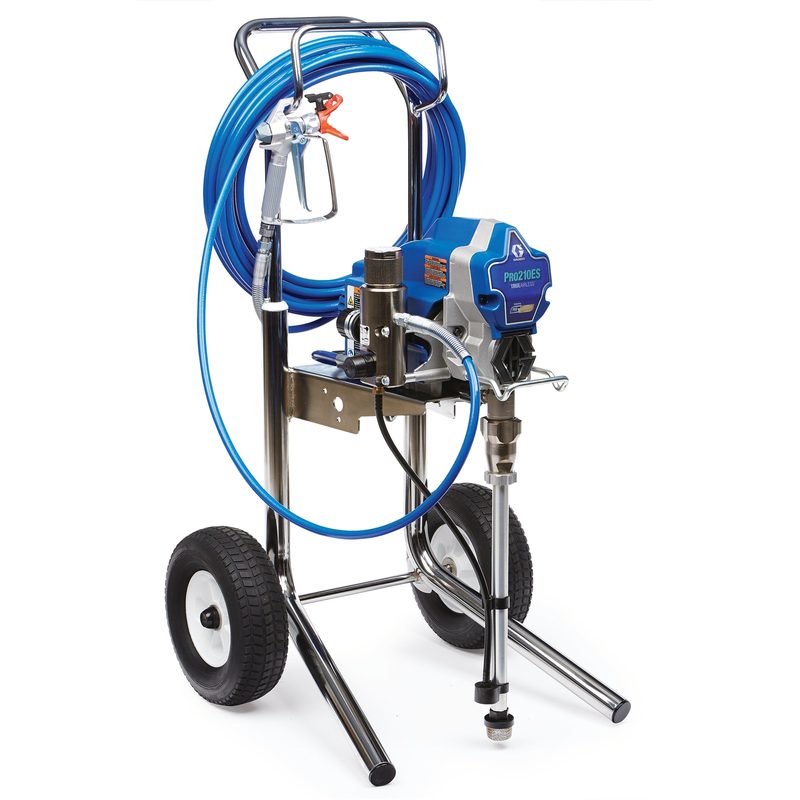

Graco PRO210ES Electric Airless Sprayer, Cart
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 17C305 Pro210ES Electric Airless Sprayer, Cart, part number 17C305. Graco Pro210ES Electric Airless Sprayer airless sprayer. Electric power source. 3000 psi maximum working pressure. Maximum tip size 0.021 in. Endurance pump. Hi-Boy frame. All values read from the Graco product page (17C305 on graco.com).
Technical Specifications
- Brand
- Graco Family: Pro210ES Electric Airless Sprayer Part number: 17C305 Amperage (A): 13 Compatible Replacement Pump: 17C721 Compatible Tip Size (in): 0.009, 0.011, 0.013, 0.015, 0.017, 0.019, 0.021 Engine Size (HP): 1.0 Fluid Outlet Size (in): 1/4 Fluid Outlet Thread Type: NPSM Frame Configuration: Hi-Boy Includes: SG3 Spray Gun, TrueAirless 515 Spray Tip, Tip Guard, 1/4 in x 50 ft DuraFlex Hose, TSL 4 oz, Quick start-Up Guide Maximum Flow Rate (GPM): 0.47 Maximum Hose Length (ft): 200 Maximum Sound Pressure Level (dB(A)): 90 Maximum Tip Size (in): 0.021 Maximum Working Pressure (MPa): 20.7 Maximum Working Pressure (psi): 3000 minimum Generator Power (W): 3000 Model: Graco Motor Type: DC Number of Guns: 1 Outlet Paint Filter: 60 Mesh Stainless Steel Screen Overall Height (in): 28.25 Overall Length (in): 23.25 Overall Width (in): 20.5 Phase: 1 Power Rating (HP): 1.0 Power Rating (W): 746 Power Rating (kW): 0.75 Power Source: Electric Pressure Control Type: Mechanical Pressure Control Pump Mount Type: ProConnect Pump Rod Type: Chromex Pump Sleeve material: Hardened Steel Pump Type: Endurance Series: Pro210ES Type: Airless Sprayer Voltage (V): 120 Weight (lb): 69 Wetted material: Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel Fluid Outlet Size (mm): 6.35 Maximum Flow Rate (L/min): 1.8 Maximum Working Pressure (bar): 207 Maximum Working Pressure (kPa): 20700 Overall Height (cm): 71.8 Overall Height (mm): 718 Overall Length (cm): 59.1 Overall Length (mm): 591 Overall Width (cm): 52.1 Overall Width (mm): 521 Weight (kg): 31
Standards & Compliance
- Material
- Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
- Pressure Rating
- 3000 psi max
- HS Code
- 8424.20
Compatibility & Fitment
Complete spray system/package. Confirm power source/battery, maximum tip size, pump type and frame configuration against the coating and layout before ordering; bundled items are listed under "Includes" in the specifications.
