Glamox

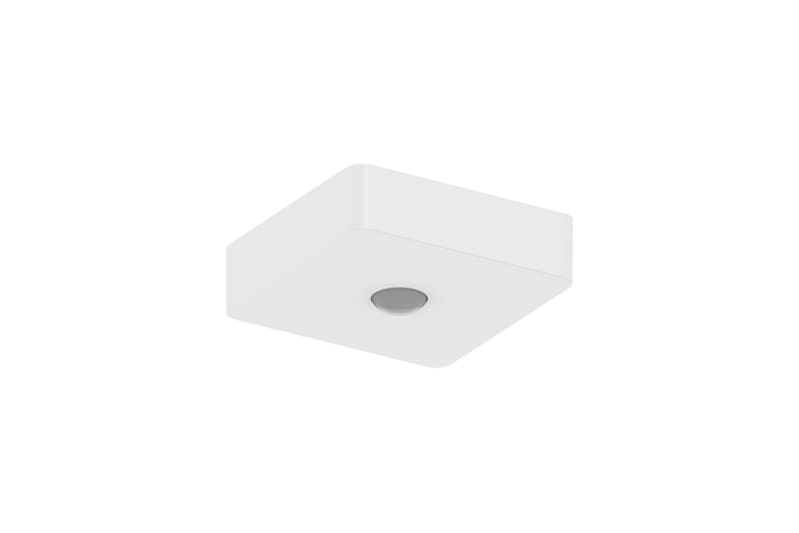

LUMI-S WH 400 E1/ST XWB
Part numberLUM590613EAN / GTIN5901155906139
Lighting & Electrical Accessories
Emergency Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Glamox LUM590613 LUMI-S WH 400 E1/ST XWB.
Technical Specifications
- Manufacturer part number (MPN)
- LUM590613 EAN / GTIN: 5901155906139 Sales unit: pcs Product shape: Square Certification: CNBOP,HACCP+ minimum TA (ºC): 0 Maximum TA (ºC): 30 IK classification: 05 IP classification: 65 Light source: LED Lumen Out (lm): 420 Lumen Per Watt (lm/W): 53 Lamp colour temp (K): 5700 Colour Rendering Index: >70 Light Distribution Up %: 0 Light Distribution Down %: 100 MacAdam step: 3 Light Source Included: Yes PstLM: Flicker (<): 0.08 SVM: Stroboscopic Visibility Measure (<): 0.03 Type of LED Driver: HF: Non dimmable Number of Driver: 1 LED Lifetime L70B50 Ta25 (h): >100000 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 8.30 IEC Protection Class: II Emergency Type: ST = Self test Duration (hrs): 1 Charging power consumption (Emg) (W): 1.50 Battery Type: LiFePO4 Battery Form: SideBySide Battery mAh: 2.200 Battery Voltage (V): 6.40 Battery Sparepart No: SP-MY-413-LI2200F Battery Termination: NS39 Optic Name: XWB - Extreme wide beam Diffuser material: PMMA Diffuser material Design: Clear Body material: Polycarbonate Body Colour: WH - White Main Body Colour Name: White Length (mm): 130 Width (mm): 130 Height (mm): 43 Item Net Weight (kg): 0.40 Termination: 5x2.5mm2 Push In Cable Gland: M20-Polyamide Number of Glands: 2 Repairable/Changeable Parts: LED module,Internal driver,Optic Packaging material: Plastic,Recycled cardboard,Paper Product Mounting: Ceiling surface Item Gross Weight (kg): 0.43
Cross References
- EAN 5901155906139
- SAP 1201020666
- Code 84388983
Product Documentation
Document preview: LUMI-S WH 400 E1/ST XWB (LUM590613) — Specification sheet
More from Glamox
Glamox
COBRA-R70 WH 400 NM E1/ST LI CR L8Y
CBR151351
Glamox
COBRA-R70 WH 400 NM E1/ST LI XWB L8Y
CBR151352
Glamox

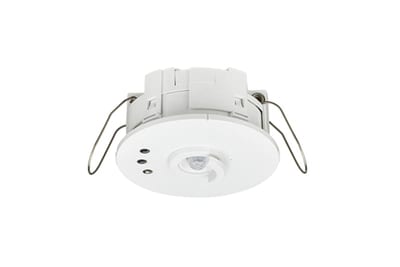

LMS Zigbee PIR CLS Sensor-R 230V
B12201004
Glamox

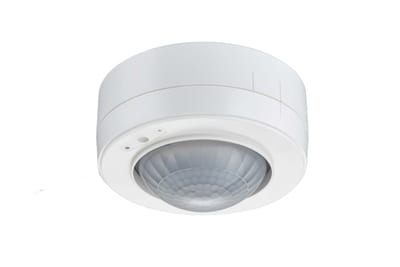

LMS Zigbee PIR CLS Sensor-S 8M 230V
B12201005
Glamox

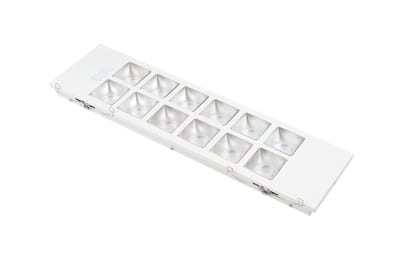

C10/20-S KIT 1225 (2X28) 830 DALI 2XSM
CX0041377
Glamox

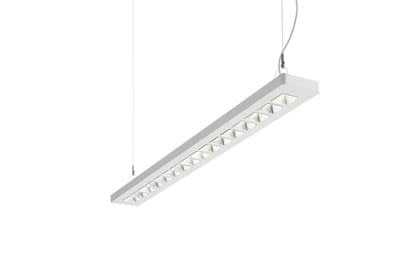

C77-P1200 WH 40/60 7000LM 830 SPR CSD SM
C77099730
Glamox

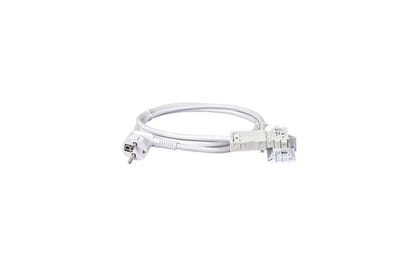

Cable 2M Linect 5P for Schuko
51240780
Glamox

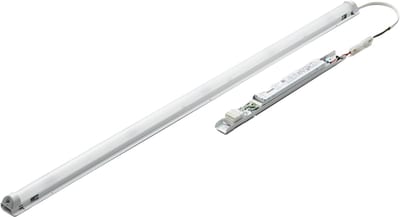

ULK 1X1200 (1X36W) 2800 DALI 840
