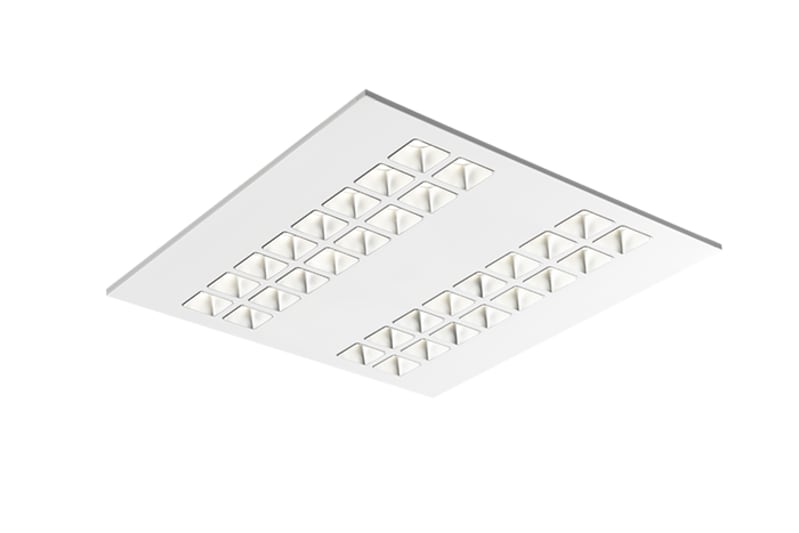

C77-R600X600 WH 4000 DALI 840 LI 4XSM

Glamox C77103141 C77-R600x600 WH 4000 DALI 840 LI 4xSM.

Manufacturer part number (MPN)

C77103141 EAN / GTIN: 7054131031412 Sales unit: pcs Product shape: Rectangular EPD (Environmental Product Declaration): Yes Number of DALI addresses: 1 DALI 2 certified: Yes minimum TA (ºC): -25 Maximum TA (ºC): 40 IK classification: 08 IP classification: 40 from underneath \ 20 from above Light source: LED Lumen Out (lm): 4.078 Lumen Per Watt (lm/W): 151 Lamp colour temp (K): 4000 Colour Rendering Index: >80 MacAdam step: 3 Energy Class Light Source: D PstLM: Flicker (<): 1 SVM: Stroboscopic Visibility Measure (<): 0.40 Type of LED Driver: DALI: Dimming Number of Driver: 1 LED Lifetime L80B50 Ta25 (h): 100000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Driver lifetime at Ta=45, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.96 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 27 Number Of Luminaire MCB 10B: 10 Number Of Luminaire MCB 10C: 21 Number Of Luminaire MCB 16C: 35 Optic Name: SM - Silver matt reflector UGR (70/50/20 & 4H-8H crosswise): 16 Optic main category: Reflector Body material: Steel Body Colour: WH - White Main Body Colour Name: Traffic white Main Body Colour RAL code: RAL 9016 Length (mm): 595 Width (mm): 595 Height (mm): 32 Item Net Weight (kg): 4.14 Termination: 5x2x2.5mm2 Push In Plug Type: Linect 5 Cradle To Gate A1-A3 (Kg C02-eq): 69.86 Total Recyclable material %: 63.2 Actual Recycled material - EN15804 %: 31.73 Repairable/Changeable Parts: LED module,Internal driver,External driver,Optic,Sensor Packaging material: Recycled cardboard Product Mounting: Ceiling recessed Item Gross Weight (kg): 4.50

• EAN 7054131031412
• SAP 1200790609
• Code 83957593
