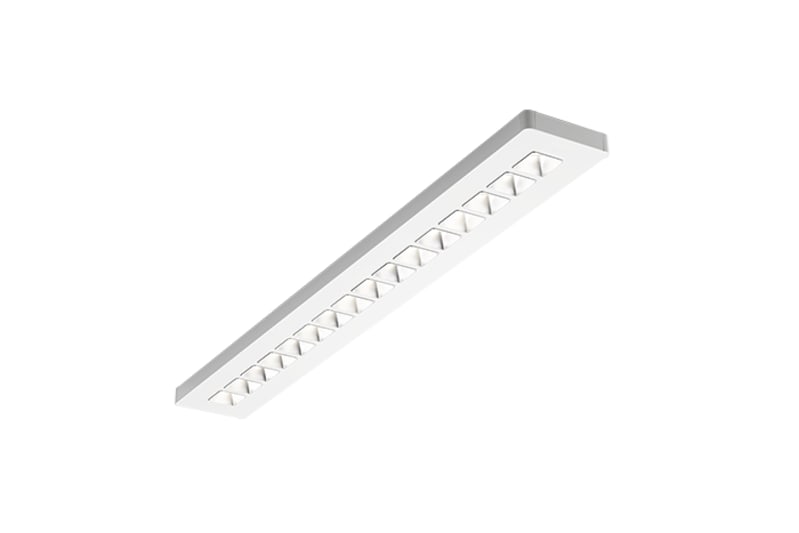

C77-S150X1200 WH 3000 DALI 840 SM

Glamox C77099266 C77 is a series slim luminaires with rounded corners and et commercial appearance.

Manufacturer part number (MPN)

C77099266 EAN / GTIN: 7054130992660 Sales unit: pcs Product shape: Rectangular Certification: ENEC DALI 2 certified: Yes Number of DALI addresses: 1 minimum TA (ºC): -25 Maximum TA (ºC): 45 IK classification: 08 IP classification: 20 Light source: LED Lumen Out (lm): 3.225 Lumen Per Watt (lm/W): 138 Lamp colour temp (K): 4000 Colour Rendering Index: >80 MacAdam step: 3 Energy Class Light Source: D minimum Dim Level (%): 1 Type of LED Driver: DALI: Dimming Number of Driver: 1 LED Lifetime L80B50 Ta25 (h): 100000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Driver lifetime at Ta=45, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.96 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 23.43 Number Of Luminaire MCB 10B: 12 Number Of Luminaire MCB 10C: 21 Number Of Luminaire MCB 16C: 35 Optic Name: SM - Silver matt reflector UGR (70/50/20 & 4H-8H crosswise): 18 Optic main category: Reflector Body material: Steel Body Colour: WH - White Main Body Colour Name: Traffic white Main Body Colour RAL code: RAL 9016 Length (mm): 1.179 Width (mm): 151 Height (mm): 54 Item Net Weight (kg): 4.10 Termination: 5x2x2.5mm2 Push In Repairable/Changeable Parts: LED module,Internal driver Packaging material: Cardboard,Recycled cardboard Product Mounting: Ceiling surface Item Gross Weight (kg): 4.46

HS Code

9405.11

• EAN 7054130992660
• SAP 1200713198
• Code 83835951
