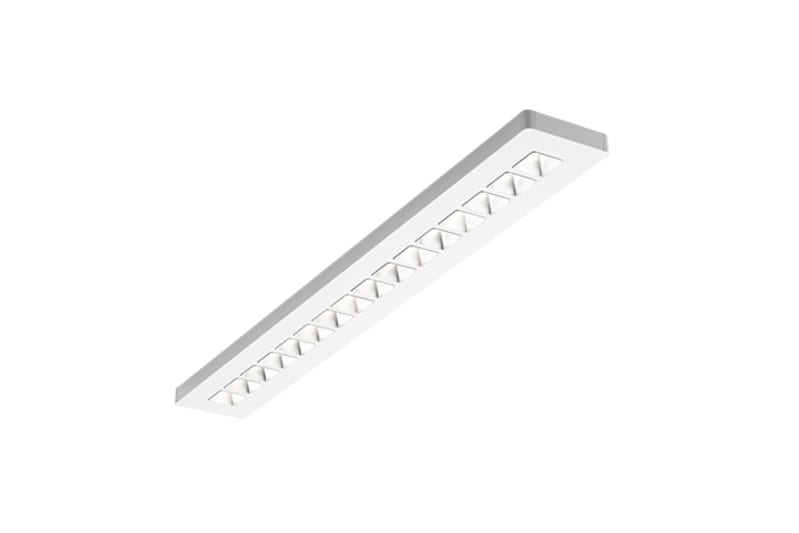

C77-S150X1500 WH 5000 HF 840 SM

Glamox C77099607 C77-S150x1500 WH 5000 HF 840 SM.

Manufacturer part number (MPN)

C77099607 EAN / GTIN: 7054130996071 Sales unit: pcs Product shape: Rectangular Certification: ENEC minimum ambient temperature (ºC): -25 Maximum ambient temperature (°C): 40 IK classification: 08 IP classification: 20 Light source: LED Lumen out (lm): 5.154 Lumen per Watt (lm/W): 133 Lamp colour temp (K): 4000 CRI Colour rendering index: >80 MacAdam step: 3 Energy class light source: D minimum dim level (%): 1 Type of LED Driver: HF: Non dimmable Number of Driver: 1 L80 Median useful life LED Ta25 (hr): 100000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Driver lifetime at Ta=45, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.96 Voltage from (V): 220 Maximum voltage (V): 240 minimum frequency (Hz): 50 Maximum frequency (Hz): 60 Total consumption (W): 38.61 Number of luminaires on a 10A MCB type B: 9 Number of luminaires on a 10A MCB type C: 16 Number of luminaires on a 16A MCB type C: 27 Optic: SM - Silver matt reflector UGR (70/50/20 & 4H-8H crosswise): 19 Optic main category: Reflector Main body material: Steel Body colour: WH - White Main body colour name: Traffic white Main body colour RAL code: RAL 9016 Length (mm): 1.451 Width (mm): 151 Height (mm): 54 Net weight (kg): 5.15 Termination: 5x2x2.5mm2 Push In Repairable/Changeable Parts: LED module,Internal driver Packaging material: Cardboard,Recycled cardboard Product mounting: Ceiling surface Item gross weight (kg): 5.60

HS Code

9405.11

• EAN 7054130996071
• SAP 1200790578
• Code 83957625
