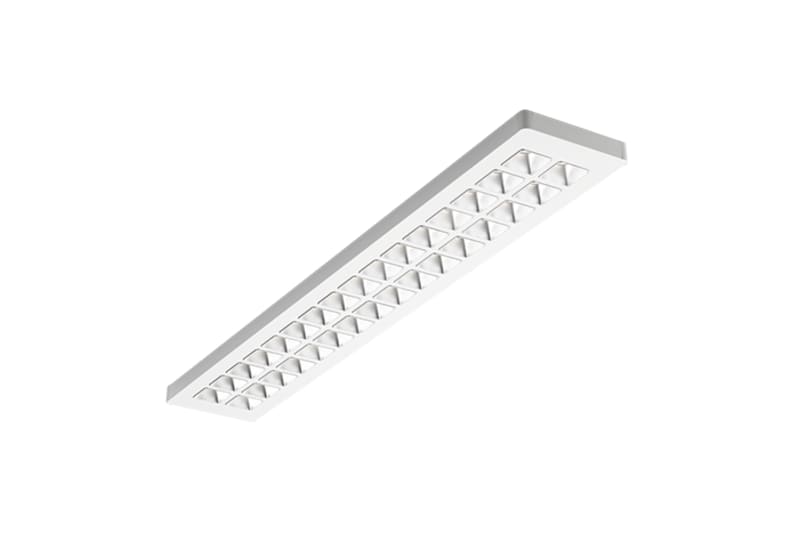

C77-S200X1200 WH 4000 DALI 830 SM

Glamox C77099256 C77-S200x1200 WH 4000 DALI 830 SM.

Manufacturer part number (MPN)

C77099256 EAN / GTIN: 7054130992561 Sales unit: pcs Product shape: Rectangular Certification: ENEC DALI 2 certified: Yes Leakage current (mA): 0.35 Voltage from (V): 220 Maximum voltage (V): 240 minimum frequency (Hz): 50 Maximum frequency (Hz): 60 Total consumption (W): 28.42 Number of luminaires on a 10A MCB type B: 12 Number of luminaires on a 10A MCB type C: 21 Number of luminaires on a 16A MCB type C: 35 Number of DALI addresses: 1 LMS Protocol: DALI minimum ambient temperature (ºC): -25 Maximum ambient temperature (°C): 40 IK classification: 08 IP classification: 20 Light source: LED Lumen out (lm): 3.934 Lumen per Watt (lm/W): 138 Lamp colour temp (K): 3000 CRI Colour rendering index: >80 MacAdam step: 3 Energy class light source: D minimum dim level (%): 1 Type of LED Driver: DALI: Dimming Number of Driver: 1 L80 Median useful life LED Ta25 (hr): 100000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Driver lifetime at Ta=45, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.96 Optic: SM - Silver matt reflector UGR (70/50/20 & 4H-8H crosswise): 16 Optic main category: Reflector Main body material: Steel Body colour: WH - White Main body colour name: Traffic white Main body colour RAL code: RAL 9016 Length (mm): 1.179 Width (mm): 191 Height (mm): 54 Net weight (kg): 4.75 Termination: 5x2x2.5mm2 Push In Repairable/Changeable Parts: LED module,Internal driver Packaging material: Cardboard,Recycled cardboard Product mounting: Ceiling surface Item gross weight (kg): 5.16

HS Code

9405.11

• EAN 7054130992561
• SAP 1200790573
• Code 83957613
