Glamox

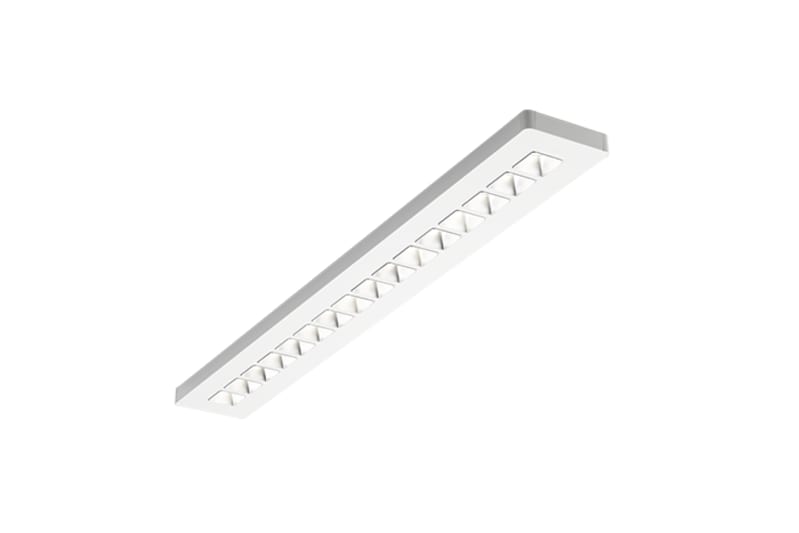

C77-S150X1200 WH 4000 DALI 830 SM
Part numberC77099540EAN / GTIN7054130995401HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Glamox C77099540 C77-S150x1200 WH 4000 DALI 830 SM.
Technical Specifications
- Manufacturer part number (MPN)
- C77099540 EAN / GTIN: 7054130995401 Sales unit: pcs Product shape: Rectangular EPD (Environmental Product Declaration): Yes Certification: ENEC DALI 2 certified: Yes Leakage Current (mA): 0.35 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 31.50 Number Of Luminaire MCB 10B: 12 Number Of Luminaire MCB 10C: 21 Number Of Luminaire MCB 16C: 35 Number of DALI addresses: 1 minimum TA (ºC): -25 Maximum TA (ºC): 40 IK classification: 08 IP classification: 20 Light source: LED Lumen Out (lm): 4.021 Lumen Per Watt (lm/W): 128 Lamp colour temp (K): 3000 Colour Rendering Index: >80 MacAdam step: 3 Energy Class Light Source: D minimum Dim Level (%): 1 Type of LED Driver: DALI: Dimming Number of Driver: 1 LED Lifetime L80B50 Ta25 (h): 100000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Driver lifetime at Ta=45, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.96 Optic Name: SM - Silver matt reflector UGR (70/50/20 & 4H-8H crosswise): 19 Optic main category: Reflector Body material: Steel Body Colour: WH - White Main Body Colour Name: Traffic white Main Body Colour RAL code: RAL 9016 Length (mm): 1.179 Width (mm): 151 Height (mm): 54 Item Net Weight (kg): 4.14 Termination: 5x2x2.5mm2 Push In Cradle To Gate A1-A3 (Kg C02-eq): 51.52 Total Recyclable material %: 70.73 Actual Recycled material - EN15804 %: 34.06 Repairable/Changeable Parts: LED module,Internal driver Packaging material: Cardboard,Recycled cardboard Product Mounting: Ceiling surface Item Gross Weight (kg): 4.50
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7054130995401
- SAP 1200790577
- Code 83957655
Product Documentation
Document preview: C77-S150X1200 WH 4000 DALI 830 SM (C77099540) — Specification sheet
