Glamox

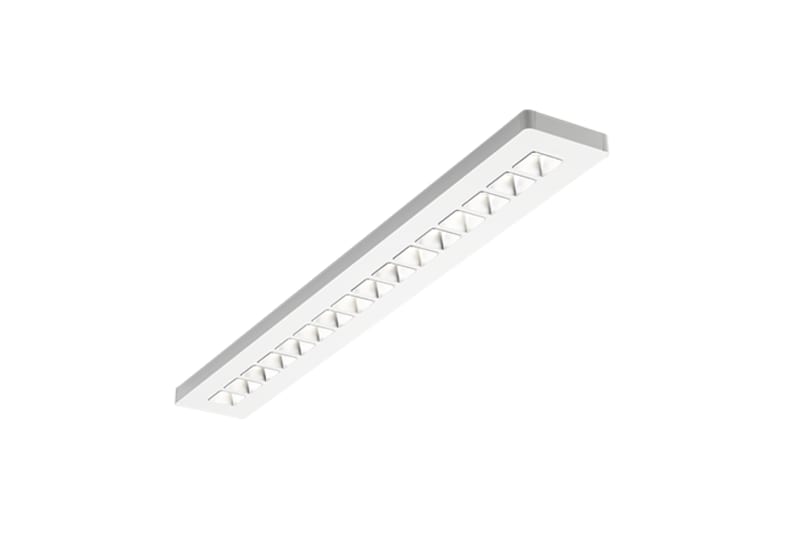

C77-S150X1200 WH 4000 DALI 840 SM
Part numberC77099541EAN / GTIN7054130995418HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Glamox C77099541 C77-S150x1200 WH 4000 DALI 840 SM.
Technical Specifications
- Manufacturer part number (MPN)
- C77099541 EAN / GTIN: 7054130995418 Sales unit: pcs Product shape: Rectangular EPD (Environmental Product Declaration): Yes Certification: ENEC DALI 2 certified: Yes Leakage Current (mA): 0.35 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 31.50 Number Of Luminaire MCB 10B: 12 Number Of Luminaire MCB 10C: 21 Number Of Luminaire MCB 16C: 35 Number of DALI addresses: 1 minimum TA (ºC): -25 Maximum TA (ºC): 40 IK classification: 08 IP classification: 20 Light source: LED Lumen Out (lm): 4.176 Lumen Per Watt (lm/W): 133 Lamp colour temp (K): 4000 Colour Rendering Index: >80 MacAdam step: 3 Energy Class Light Source: D minimum Dim Level (%): 1 Type of LED Driver: DALI: Dimming Number of Driver: 1 LED Lifetime L80B50 Ta25 (h): 100000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Driver lifetime at Ta=45, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.96 Optic Name: SM - Silver matt reflector UGR (70/50/20 & 4H-8H crosswise): 19 Optic main category: Reflector Body material: Steel Body Colour: WH - White Main Body Colour Name: Traffic white Main Body Colour RAL code: RAL 9016 Length (mm): 1.179 Width (mm): 151 Height (mm): 54 Item Net Weight (kg): 4.14 Termination: 5x2x2.5mm2 Push In Cradle To Gate A1-A3 (Kg C02-eq): 51.52 Total Recyclable material %: 70.73 Actual Recycled material - EN15804 %: 34.06 Repairable/Changeable Parts: LED module,Internal driver Packaging material: Cardboard,Recycled cardboard Product Mounting: Ceiling surface Item Gross Weight (kg): 4.50
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7054130995418
- SAP 1200790576
- Code 83957656
Product Documentation
Document preview: C77-S150X1200 WH 4000 DALI 840 SM (C77099541) — Specification sheet
More from Glamox
Glamox
RLXCXZ1 80WAC1D MB40 2HCAABK
LN1002267
Glamox
C10/C20-S LED KIT 1225 WH (2X54W)
CX0103486
Glamox
A10-S440 LED KIT 2500 HF 830
A10200016
Glamox
RLXDXZ2.21 240WAC1D OBH 3HEBABK
LN1002751
Glamox
C10/C20-S LED KIT 1525 WH (2X49W)
CX0104398
Glamox
A25-S280 1100 HF SMR-SEN 830
3385186
Glamox
I10-1200 ANTI-Glare Lamella
I10000000
Glamox
CLIP Diffuser MAX (3380437)
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy C77099541?
- C77099541 can be ordered from cballast.com as a Glamox catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Glamox product?
- The manufacturer part number is C77099541.
- What is the HS code for C77099541?
- The customs tariff (HS) code for C77099541 is 9405.11.
- Who manufactures C77099541?
- C77099541 is a Glamox product in the Lighting & Electrical Accessories range.
- Is a datasheet available for C77099541?
- Yes — the C77099541 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for C77099541?
- The minimum order quantity is 1.
- Is C77099541 available?
- Yes — C77099541 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
