Glamox
MAX KIT-1200 G2 5000HF 840 EB3/S 220-254
Part numberMAX102884EAN / GTIN7054131028849
Hazardous Area Equipment
ATEX Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

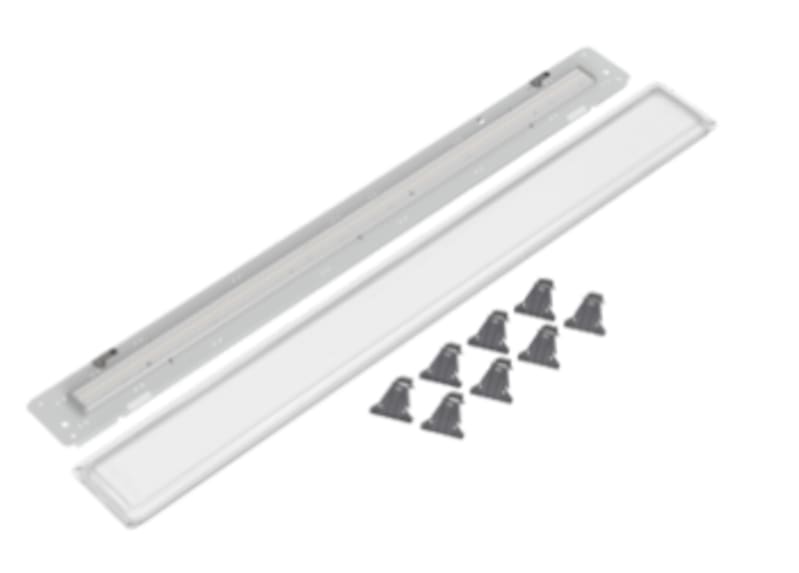

Kit for to oppgradere MAX T8 36W for energieffektiv LED-solution. MAX KIT-1200 G2 5000 HF EB3/S 840 FR/PC 220-254V IP66/67.
Technical Specifications
- Manufacturer part number (MPN)
- MAX102884 EAN / GTIN: 7054131028849 Sales unit: pcs For special markets: WorldWide Product shape: Linear EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck Leakage current (mA): 0.45 Voltage from (V): 220 Maximum voltage (V): 254 minimum frequency (Hz): 50 Maximum frequency (Hz): 60 Main Feed DC (V) Min: 220 Main Feed DC (V) Max: 250 Total consumption (W): 38 Total power consumption start (A): 22 Number of luminaires on a 10A MCB type B: 15 Number of luminaires on a 10A MCB type C: 25 Number of luminaires on a 16A MCB type B: 24 Number of luminaires on a 16A MCB type C: 40 Certification: ATEX,IECEx Marine approved: Yes Ignition Class: T4135° Atex start code: II 2GD Class Ex Gas: Ex eb mb IIC Gb Class Ex Dust: Ex tb IIIC Db Max surface temp Dust: 81 EX zone: Ex zone 1,Ex zone 2,Ex zone 21,Ex zone 22 minimum ambient temperature (ºC): -20 Maximum ambient temperature (°C): 50 IP classification: 66/67 Light source: LED Lumen out (lm): 4.894 Number of lamps: 1 Lumen per Watt (lm/W): 129 Lamp colour temp (K): 4000 CRI Colour rendering index: >80 Light distribution up %: 1 Light distribution down %: 99 MacAdam step: 3 Energy class light source: D Light source included: Yes Type of LED Driver: HF: Non dimmable Number of Driver: 1 L70 Median useful life LED MaxTa (hr): 100000 Luminous flux decline (LLMF) 50.000h Ta25: 0.90 Type of emergency: S = Standard Duration in battery mode (hrs): 3 Charging power consumption (Emg) (W): 1.50 Output in battery mode (%): 17 Battery Type: NiCd Battery form: Multi Battery Box Battery mAh: 4.000 Battery Voltage (V): 7.20 Battery sparepart no: PM220105801 Optic: FR/PC - Frosted diffuser in polycarbonate material of diffuser: Polycarbonate Optic main category: Diffuser Main body material: Aluminium/ zinc-treated steel Body colour: WH - White Main body colour name: White Length (mm): 1.250 Net weight (kg): 4.32 Item gross weight (kg): 4.70
Cross References
- EAN 7054131028849
- SAP 1200739147
- Code 83932806
Product Documentation
Document preview: MAX KIT-1200 G2 5000HF 840 EB3/S 220-254 (MAX102884) — Specification sheet
