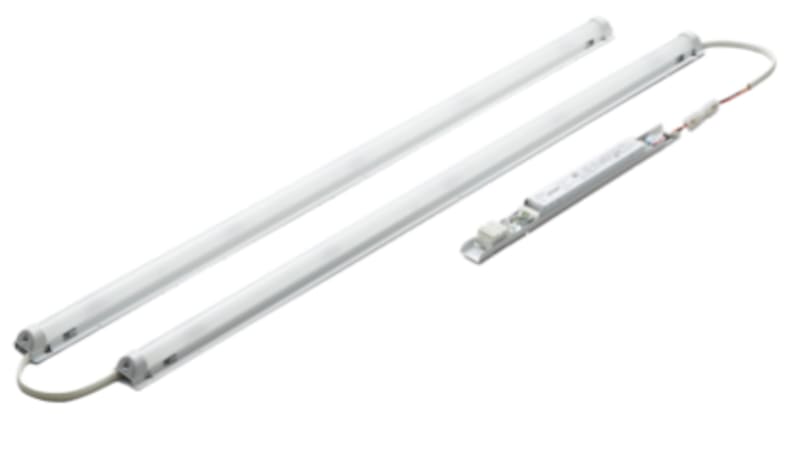

Univ LED-kit (M) 2X1200 5600 DALI 830

Glamox ULK103623 Universal LED-kit in marine version. For 2x36W T8.

Manufacturer part number (MPN)

ULK103623 EAN / GTIN: 7054131036233 Sales unit: pcs Marine Approved: Yes minimum ambient temperature (ºC): -25 Maximum ambient temperature (°C): 45 IP classification: 20 Light source: LED Lumen out (lm): 6.456 Lumen per Watt (lm/W): 124 Lamp colour temp (K): 3000 CRI Colour rendering index: >80 MacAdam step: 3 Energy class light source: C Type of LED Driver: DALI Number of Driver: 1 L80 Median useful life LED Ta25 (hr): 70000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 minimum Voltage -10% (VAC): 220 Maximum voltage +10% (VAC): 240 minimum frequency -5% (Hz): 50 Maximum frequency +5% (Hz): 60 Total consumption (W): 44 Number of luminaires on a 10A MCB type B: 13 Number of luminaires on a 10A MCB type C: 21 Number of luminaires on a 16A MCB type C: 35 Main body material: Steel Body colour: WH - White Main body colour name: Traffic white Main body colour RAL code: RAL 9016 Length (mm): 1.150 Width (mm): 102 Height (mm): 30 Net weight (kg): 1.69 Termination: 5x2x2.5mm2 Push In Product mounting: Ceiling recessed,Ceiling surface Item gross weight (kg): 1.84

HS Code

9405.11

• EAN 7054131036233
• SAP 1200730364
• Code 83856911
