Glamox
RLXD 160WDC2D MB60 2ADAABK
Part numberLN1001823EAN / GTIN7072720000670HS code8543.70
Lighting & Electrical Accessories
Floodlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

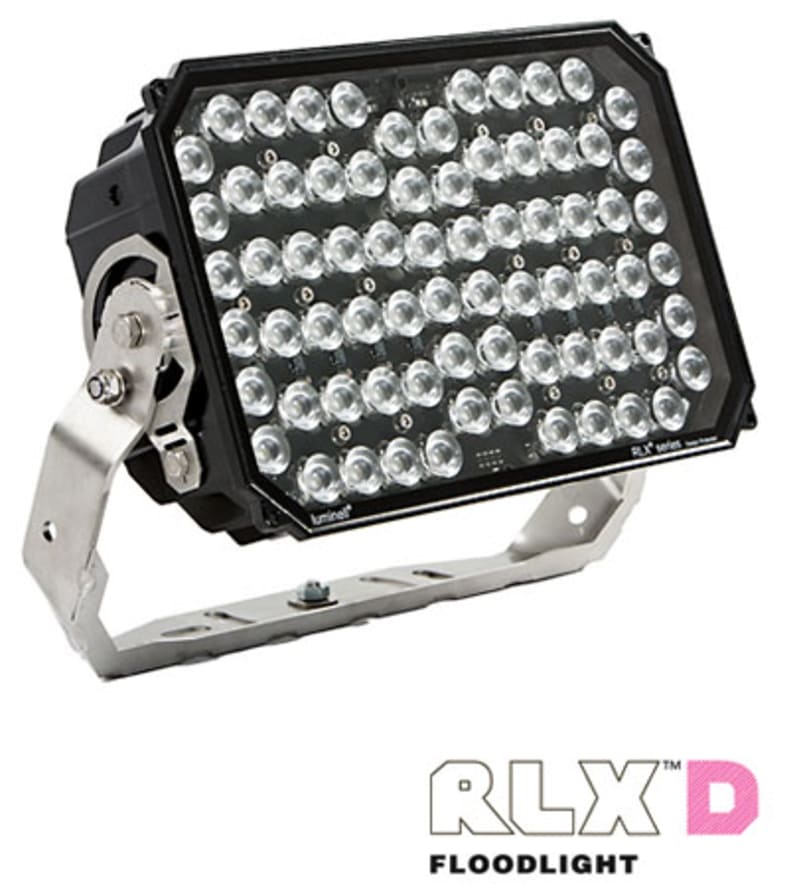

Glamox LN1001823 RLX D Floodlight 160W 24VDC Dimmable Medium Beam 60.
Technical Specifications
- Manufacturer part number (MPN)
- LN1001823 EAN / GTIN: 7072720000670 HS code: 8543.70 Sales unit: pcs EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck Main Feed DC (V) Min: 19 Main Feed DC (V) Max: 30 Total consumption (W): 160 Power factor: 1 Certification: 5 year warranty,DNV,UL,UL 1598 Wet Locations,UL1598/1598A Marine Listed Marine Approved: Yes minimum ambient temperature (ºC): -40 Maximum ambient temperature (°C): 55 IP classification: 66/67 Corrosion class: C5-M Light source: LED Lumen out (lm): 17.910 Number of lamps: 1 Lumen per Watt (lm/W): 112 Lamp colour temp (K): 5000 CRI Colour rendering index: >70 MacAdam step: 3 Light source included: Yes Dimmable: Yes Beam angle (°): 60 Optic: MB60 - Medium Beam 60° material of diffuser: Glass Diffuser material design: Clear Type of LED Driver: HFDa: Dimming Analogue 1-10V L70 Median useful life LED Ta45 (hr): 100000 Main body material: Seawater-resistant aluminium Surface treatment: Anodized Body colour: BL - Black Main body colour name: Graphite black Main body colour surface: Powder coated Main body colour RAL code: RAL 9011 Mounting bracket material: Stainless steel AISI 316 Length (mm): 449 Width (mm): 171 Height (mm): 329 Net weight (kg): 10.58 Termination: 3x2x2.5mm2 Push In Maximum core diameter: 2.5 mm2 minimum core diameter: 0.5 mm2 Type of through wiring: 3x2.5 Cable gland: M20-Nickel plated brass Number of cable glands: 1 Blind plugs: M20-Nickel plated brass Number of blind plugs: 1 Max cable diameter (mm): 13 Min cable diameter (mm): 7 Item gross weight (kg): 11.50
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7072720000670
- SAP 1200575734
- Code 82939855
Product Documentation
Document preview: RLXD 160WDC2D MB60 2ADAABK (LN1001823) — Specification sheet
