Glamox
TX60 4500 850 230 M25 AS
Part numberTX60695400EAN / GTIN4036538585166
Hazardous Area Equipment
ATEX Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

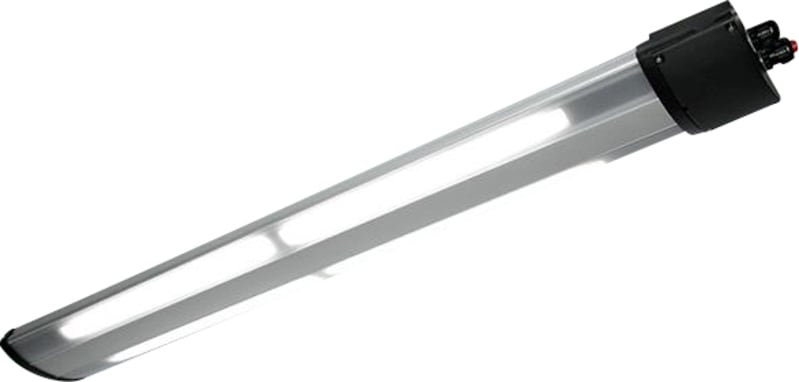

Glamox TX60695400 TX60 4500 850 230 M25 AS.
Technical Specifications
- Manufacturer part number (MPN)
- TX60695400 EAN / GTIN: 4036538585166 Sales unit: pcs Mains Current: 0.203 EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck Main Feed AC (V) Min: 230 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 46 Number Of Luminaire MCB 10B: 39 Number Of Luminaire MCB 16B: 63 Certification: ATEX,IECEx Marine Approved: Yes Ignition Class: T5100° Atex start Code: II 2GD Class Ex Gas: Ex eb mb op is IIC Gb Class Ex Dust: Ex tb op is IIIC Db Max Surface Temp Dust: 100 EX zone: Ex zone 1,Ex zone 2,Ex zone 21,Ex zone 22 minimum TA (ºC): -40 Maximum TA (ºC): 55 IK classification: 10 IP classification: 66/67 Corrosion class: C5-M Light source: LED Lumen Out (lm): 4.144 Lumen Per Watt (lm/W): 90 Lamp colour temp (K): 5000 Colour Rendering Index: >80 MacAdam step: 3 Light Source Included: Yes Type of LED Driver: IC Number of Driver: 4 LED Lifetime L70B50 Ta45 (h): 100000 Optic Name: OP/PC - Opal diffuser in polycarbonate Diffuser material: Polycarbonate Optic main category: Diffuser Body material: Seawater-resistant aluminium Body Colour: GR - Grey Main Body Colour Name: Silver grey End Cap Colour: BL - Black Mounting bracket type: AS Mounting Bracket material: Stainless steel Length (mm): 1.334 Width (mm): 174 Height (mm): 75 CC max: 700 Item Net Weight (kg): 6.81 Maximum Core Diameter: 6 mm2 minimum Core Diameter: 0.5 mm2 Cable Gland: M25-Polyamide Number of Glands: 2 Blinds: M25-Polyamide Number of Blinds: 1 Max Cable Diameter (mm): 17 Min Cable Diameter (mm): 11 Item Gross Weight (kg): 7.40 Min Storage Temp: -50 Max Storage Temp: 80
Cross References
- EAN 4036538585166
- SAP 1200336716
- Code 82324158
Product Documentation
Document preview: TX60 4500 850 230 M25 AS (TX60695400) — Specification sheet
More from Glamox
Glamox

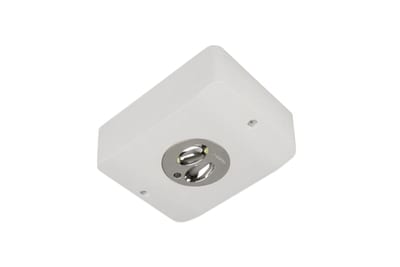

E85-S C E1/ST (E85101200)
Glamox

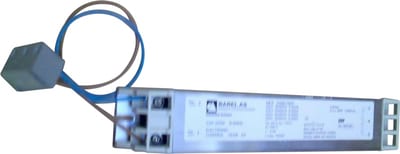

Replacement FOR PCX 218 E003
PA080207006
Glamox

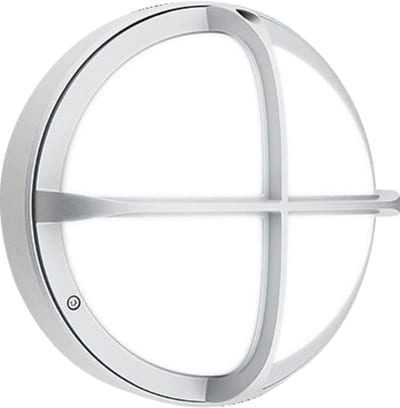

O10-S290-X LED 900 AC 840 AL
3330353
Glamox
FX61 4500 850 230 M25 MB Steel
FX61101001
Glamox

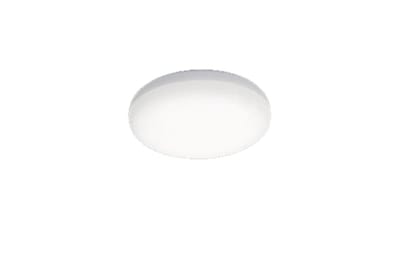

A15-S215 1200 AC 830 SMAB
A15533411
Glamox

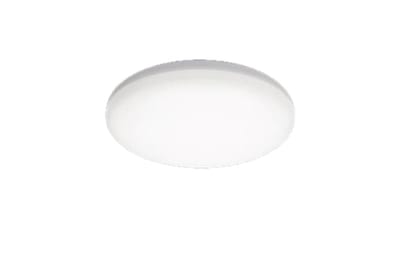

A15-S280 1800 AC 830
A15532888
Glamox

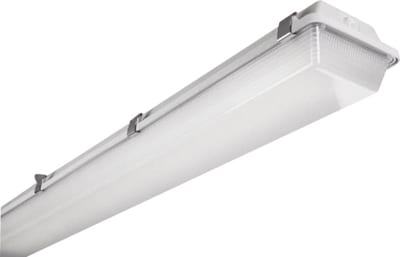

GPV2-LED 4300HF 840 TW PC
