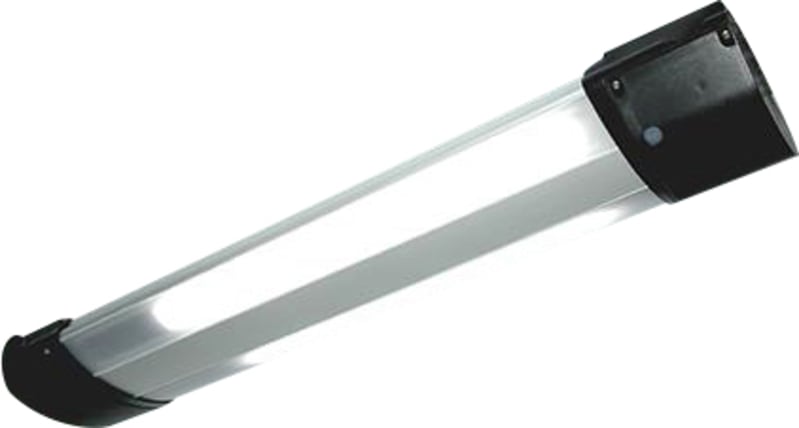

TX60 2200 850 230 HFE1 M25 AS

Glamox TX60195500 TX60 2200 850 230 HFE1 M25 AS.

Manufacturer part number (MPN)

TX60195500 EAN / GTIN: 4036538585135 Sales unit: pcs Mains current: 0.103 EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck minimum Voltage -10% (VAC): 230 minimum frequency -5% (Hz): 50 Maximum frequency +5% (Hz): 60 Total consumption (W): 23 Number of luminaires on a 10A MCB type B: 78 Number of luminaires on a 16A MCB type B: 124 Certification: ATEX,IECEx Marine Approved: Yes Ignition Class: T5100° Atex code: II 2GD Class Ex Gas: Ex eb mb op is IIC Gb Class Ex Dust: Ex tb op is IIIC Db Max surface temp Dust: 100 EX zone: Ex zone 1,Ex zone 2,Ex zone 21,Ex zone 22 minimum ambient temperature (ºC): -40 Maximum ambient temperature (°C): 45 IK classification: 10 IP classification: 66/67 Corrosion class: C5-M Light source: LED Lumen out (lm): 2.076 Lumen per Watt (lm/W): 90 Lamp colour temp (K): 5000 CRI Colour rendering index: >80 MacAdam step: 3 Light source included: Yes Type of LED Driver: IC Number of Driver: 2 L70 Median useful life LED Ta45 (hr): 100000 Type of emergency: Standard battery backup Duration in battery mode (hrs): 1.5 Charging power consumption (Emg) (W): 1.50 Output in battery mode (%): 25 Optic: OP/PC - Opal diffuser in polycarbonate material of diffuser: Polycarbonate Optic main category: Diffuser Main body material: Seawater-resistant aluminium Body colour: GR - Grey Main body colour name: Silver grey Mounting bracket type: AS Mounting bracket material: Stainless steel Mounting bracket colour: BL - Black Length (mm): 852 Width (mm): 184 Height (mm): 87 CC max: 400 Net weight (kg): 5.52 Maximum core diameter: 6 mm2 minimum core diameter: 0.5 mm2 Cable gland: M25-Polyamide Number of cable glands: 2 Blind plugs: M25-Polyamide Number of blind plugs: 1 Max cable diameter (mm): 17 Min cable diameter (mm): 11 Item gross weight (kg): 6 Min storage temp: -50 Max storage temp: 80

• EAN 4036538585135
• SAP 1200336715
• Code 82324162
