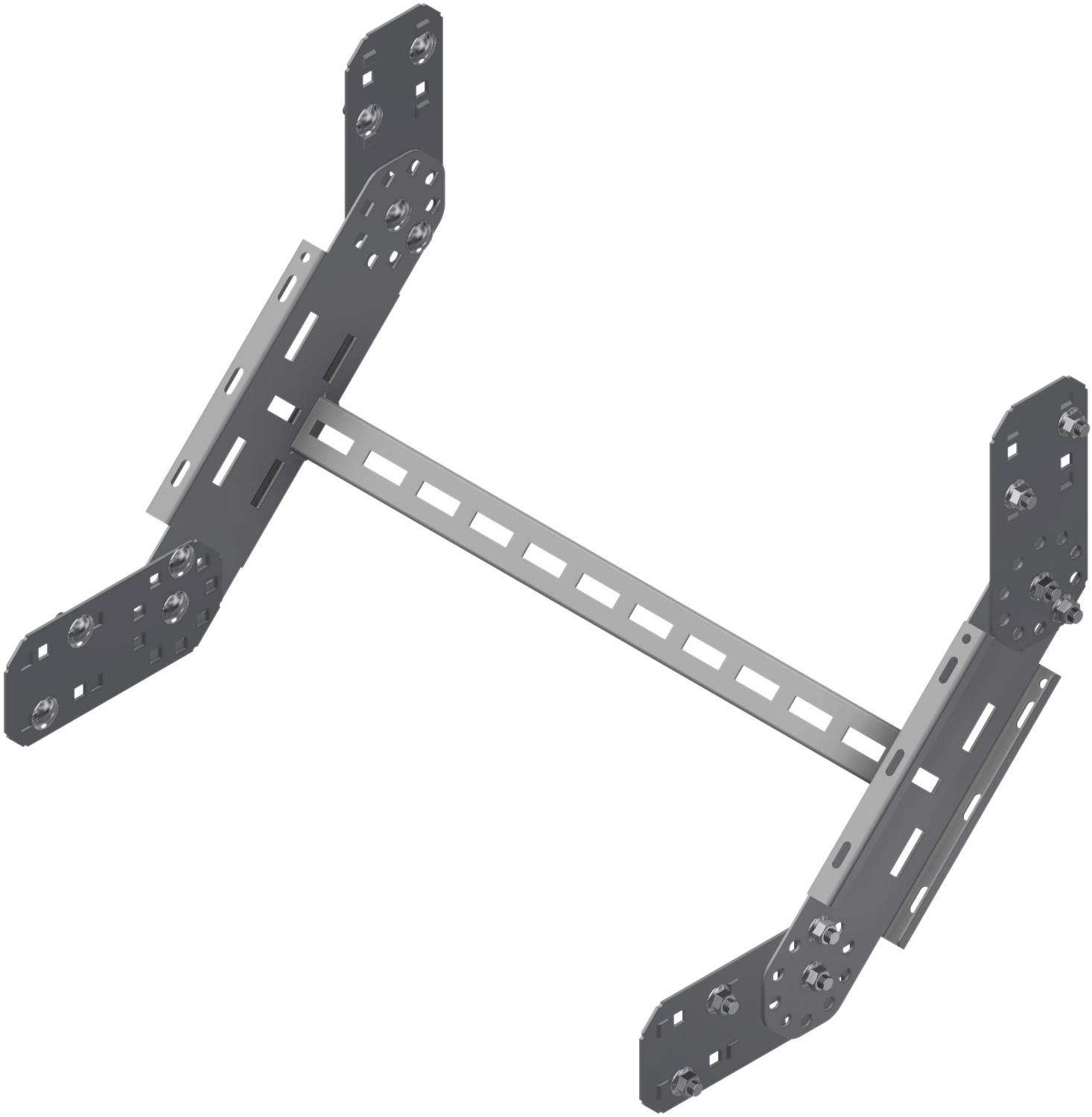

Øglænd System OE100 RI1-MO-600 SS Stainless Cable Ladder Riser 600 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System OE100 RI1-MO-600 SS is a modular vertical riser bend for OE100 cable ladders in 600 mm width, allowing 0-90 degree changes of direction on internal or external corners. The rung is a perforated profile with vertical slots for flexible tie-off, and the piece ships complete with two sets of integrated splice connectors and bolts, so no extra couplers are required. Overall footprint 315.1 x 415.1 mm, material 2.0 mm rustproof and acid-proof stainless steel, weight 3.930 kg. ETIM class EC001535 (bend for cable ladder), country of origin Norway.
Technical Specifications
- Manufacturer part number (MPN)
- OE100 RI1-MO-600 SS
- EAN / GTIN
- 7070693716390
- Sales unit
- pcs
- Type
- Riser modular
- T Material Thickness (mm)
- 2.0
- X (mm)
- 315.1
- Y (mm)
- 415.1
- W1 Width 1 (mm)
- 600
- H Height (mm)
- 100
- Radius
- See ØI-RD-UG-EN-0412
- A Angle (deg)
- 0-90
- CC (mm)
- 50
- Hole size A
- 11x35
- Hole size B
- Ø11
- Hole size C
- 11x11
- D Hole Size (mm)
- 7x20
- O Overlap Integrated Splice (mm)
- 100
- Weight (kg)
- 3.930
- ETIM class
- EC001535 - Bend for cable ladder
- CAD models available for
- AVEVA E3D, Hexagon S3D, Autodesk Revit
- Manufacturer item number
- 1371639
- Hilti item number
- 2302063
- Change of direction
- Vertically rising
- Type of side joist
- Profile (open)
- Side perforation
- Yes
- Type of rung
- Perforated profile
- Suitable for cable ladder height
- 100 mm
- Suitable for cable ladder width
- 600 mm
- Model
- Integrated connector
- Wide span model
- Yes
- Suitable for circuit integrity
- Yes
- Material
- Steel
- Stainless steel, pickled
- Yes
- Material quality
- Rustproof and acidproof steel
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693716390
- SAP 1000045014
- Code 8826457
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System Earthing Strap
A-M EL-300/10-16
Øglænd System
Øglænd System LOE75 Cable Ladder, 200 mm, 3 m
LOE75 CL-200-3000 SS
Øglænd System
Øglænd System SPB Cover, 150 mm, 3 m, Stainless Steel
SPB CO-CT-150-3000 SS
Øglænd System
Øglænd System S-M Cantilever Arm, 150 mm, Stainless Steel
CA-30-150 SS
Øglænd System
Øglænd System FOE-70 Cable Ladder, 200 × 70 mm, 3 m
FOE-70 CL-200-3000
Øglænd System
Øglænd System OE100 RI1-MO-150 SS Stainless Cable Ladder Riser 150 mm
Øglænd System
Øglænd System SPB-RF40 Flat Elbow 45°, 50 mm, R75, Stainless Steel
SPB-RF40 FE45-50-R75 SS
Øglænd System
Ladder LOE-100-300 MM SS L=3M
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy OE100 RI1-MO-600 SS?
- OE100 RI1-MO-600 SS can be ordered from cballast.com as a Øglænd System catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Øglænd System product?
- The manufacturer part number is OE100 RI1-MO-600 SS.
- What is the HS code for OE100 RI1-MO-600 SS?
- The customs tariff (HS) code for OE100 RI1-MO-600 SS is 7308.90.
- Who manufactures OE100 RI1-MO-600 SS?
- OE100 RI1-MO-600 SS is a Øglænd System product in the Cables & Wiring range.
- Is a datasheet available for OE100 RI1-MO-600 SS?
- Yes — the OE100 RI1-MO-600 SS datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for OE100 RI1-MO-600 SS?
- The minimum order quantity is 1.
- Is OE100 RI1-MO-600 SS available?
- Yes — OE100 RI1-MO-600 SS is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
