Øglænd System OE100 RI1-MO-150 SS Stainless Cable Ladder Riser 150 mm
Pricing
Request a quote
We reply within 24 hours
Product Description

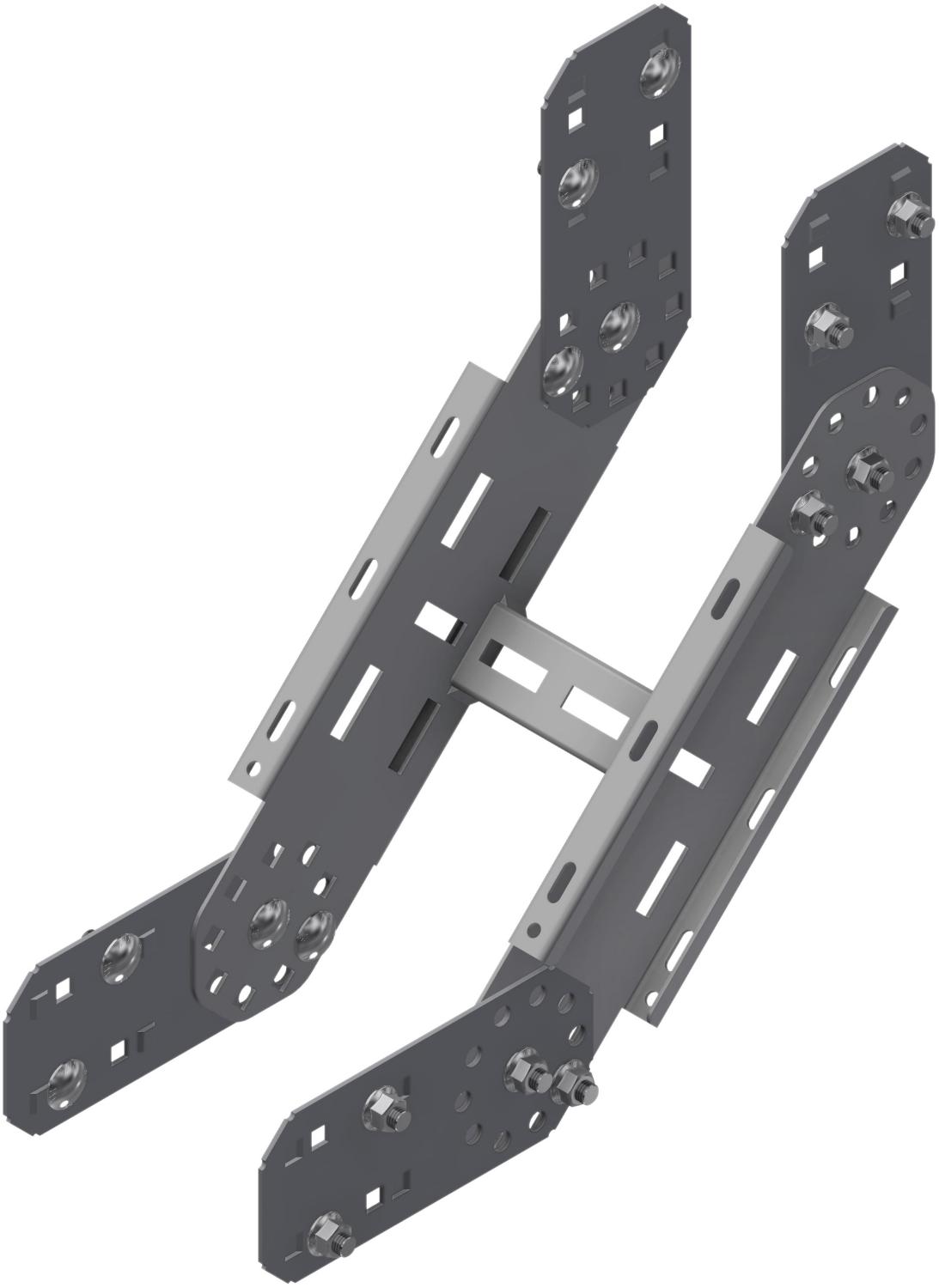

Øglænd System OE100 RI1-MO-150 SS is a modular vertical riser bend for OE100 cable ladders in 150 mm width, allowing 0-90 degree changes of direction on internal or external corners. The perforated-profile rungs carry vertical slots for flexible cable tie-off, and the piece ships complete with two sets of integrated splice connectors and bolts. Overall footprint 315.1 x 415.1 mm, material 2.0 mm rustproof and acid-proof stainless steel, weight 2.600 kg. ETIM class EC001535 (bend for cable ladder), country of origin Norway.
Technical Specifications
- Manufacturer part number (MPN)
- OE100 RI1-MO-150 SS
- EAN / GTIN
- 7070693716369
- Sales unit
- pcs
- Type
- Riser modular
- T Material Thickness (mm)
- 2.0
- X (mm)
- 315.1
- Y (mm)
- 415.1
- W1 Width 1 (mm)
- 150
- H Height (mm)
- 100
- Radius
- See ØI-RD-UG-EN-0412
- A Angle (deg)
- 0-90
- CC (mm)
- 50
- Hole size A
- 11x35
- Hole size B
- Ø11
- Hole size C
- 11x11
- D Hole Size (mm)
- 7x20
- O Overlap Integrated Splice (mm)
- 100
- Weight (kg)
- 2.600
- ETIM class
- EC001535 - Bend for cable ladder
- CAD models available for
- AVEVA E3D, Hexagon S3D, Autodesk Revit
- Manufacturer item number
- 1371636
- Hilti item number
- 2301789
- Change of direction
- Vertically rising
- Type of side joist
- Profile (open)
- Side perforation
- Yes
- Type of rung
- Perforated profile
- Suitable for cable ladder height
- 100 mm
- Suitable for cable ladder width
- 150 mm
- Model
- Integrated connector
- Wide span model
- Yes
- Suitable for circuit integrity
- Yes
- Material
- Steel
- Stainless steel, pickled
- Yes
- Material quality
- Rustproof and acidproof steel
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693716369
- SAP 1000027475
- Code 8217049
Product Documentation
