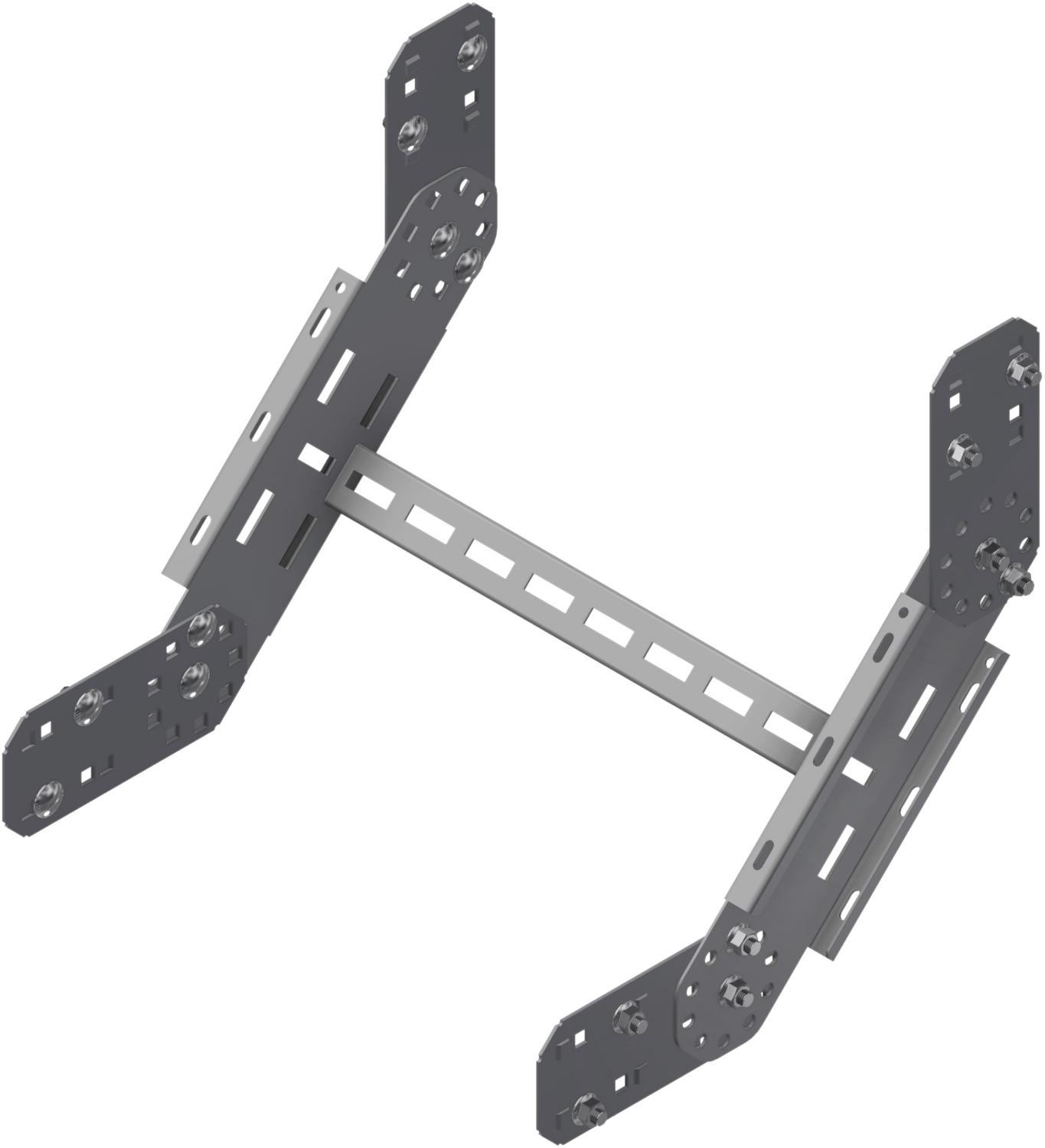

Øglænd System OE100 Riser 0-90° Modular Bend for 450 mm Cable Ladder, Stainless Steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System OE100 RI1-MO-450 SS is a modular riser bend for OE100 cable ladders of 450 mm width and 100 mm side rail height, forming inside or outside vertical changes of direction from 0 to 90 degrees. The rungs carry vertical slots and the bend is delivered complete with two sets of integrated splice connectors and bolts, so no extra joint kit is needed. Fabricated in stainless (rustproof and acid-proof) steel at 2.0 mm material thickness, overall footprint 315.1 x 415.1 mm, weight 2.800 kg; ETIM class EC001535.
Technical Specifications
- Manufacturer part number (MPN)
- OE100 RI1-MO-450 SS
- EAN / GTIN
- 7070693716383
- Sales unit
- pcs
- Type
- Riser modular
- T Material Thickness (mm)
- 2.0
- X (mm)
- 315.1
- Y (mm)
- 415.1
- W1 Width 1 (mm)
- 450
- H Height (mm)
- 100
- Radius
- See ØI-RD-UG-EN-0412
- A Angle (deg)
- 0-90
- CC (mm)
- 50
- Hole size A
- 11x35
- Hole size B
- Ø11
- Hole size C
- 11x11
- D Hole Size (mm)
- 7x20
- O Overlap Integrated Splice (mm)
- 100
- Weight (kg)
- 2.800
- ETIM class
- EC001535 - Bend for cable ladder
- CAD models available for
- AVEVA E3D, Autodesk Revit
- Manufacturer item number
- 1371638
- Hilti item number
- 2308346
- Change of direction
- Vertically rising
- Type of side joist
- Profile (open)
- Side perforation
- Yes
- Type of rung
- Perforated profile
- Suitable for cable ladder height
- 100 mm
- Suitable for cable ladder width
- 450 mm
- Model
- Integrated connector
- Wide span model
- Yes
- Suitable for circuit integrity
- Yes
- Material
- Steel
- Stainless steel, pickled
- Yes
- Material quality
- Rustproof and acidproof steel
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693716383
- SAP 1000010506
- Code 885048
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System LOE75 Cable Ladder, 600 mm, 3 m, Hot-Dip Galvanised
LOE75 CL-600-3000 HDG
Øglænd System
Øglænd System Fixing Clamp
FOE/FTE FC-B40x65
Øglænd System
Øglænd System OE Fixing Clamp, 58 mm, M10, Hot-Dip Galvanised
OE FC-TW-M10 x2 HDG
Øglænd System
Øglænd System SPB Cantilever Arm, 100 mm, Stainless Steel
Mekano CA-38-100 PT SS
Øglænd System
Øglænd System Speaker Bracket, 100 mm, Hot-Dip Galvanised
LSP-EQ-FoS-#2 HDG
Øglænd System
Universal Angle S-M SB-Z 300 M6+M10 SS
S-M SB-Z 300 M6 + M10 SS
Øglænd System
Øglænd System FOE-100 Splice Connector for Cable Ladder, 220 mm, Stainless Steel
SPLICE CONNECTORS FOE100 SC SS
Øglænd System
Øglænd System Locking Bolts LS-M10x50, A4 Stainless Steel
S-M LS-M10x50 A4
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy OE100 RI1-MO-450 SS?
- OE100 RI1-MO-450 SS can be ordered from cballast.com as a Øglænd System catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Øglænd System product?
- The manufacturer part number is OE100 RI1-MO-450 SS.
- What is the HS code for OE100 RI1-MO-450 SS?
- The customs tariff (HS) code for OE100 RI1-MO-450 SS is 7308.90.
- Who manufactures OE100 RI1-MO-450 SS?
- OE100 RI1-MO-450 SS is a Øglænd System product in the Cables & Wiring range.
- Is a datasheet available for OE100 RI1-MO-450 SS?
- Yes — the OE100 RI1-MO-450 SS datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for OE100 RI1-MO-450 SS?
- The minimum order quantity is 1.
- Is OE100 RI1-MO-450 SS available?
- Yes — OE100 RI1-MO-450 SS is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
