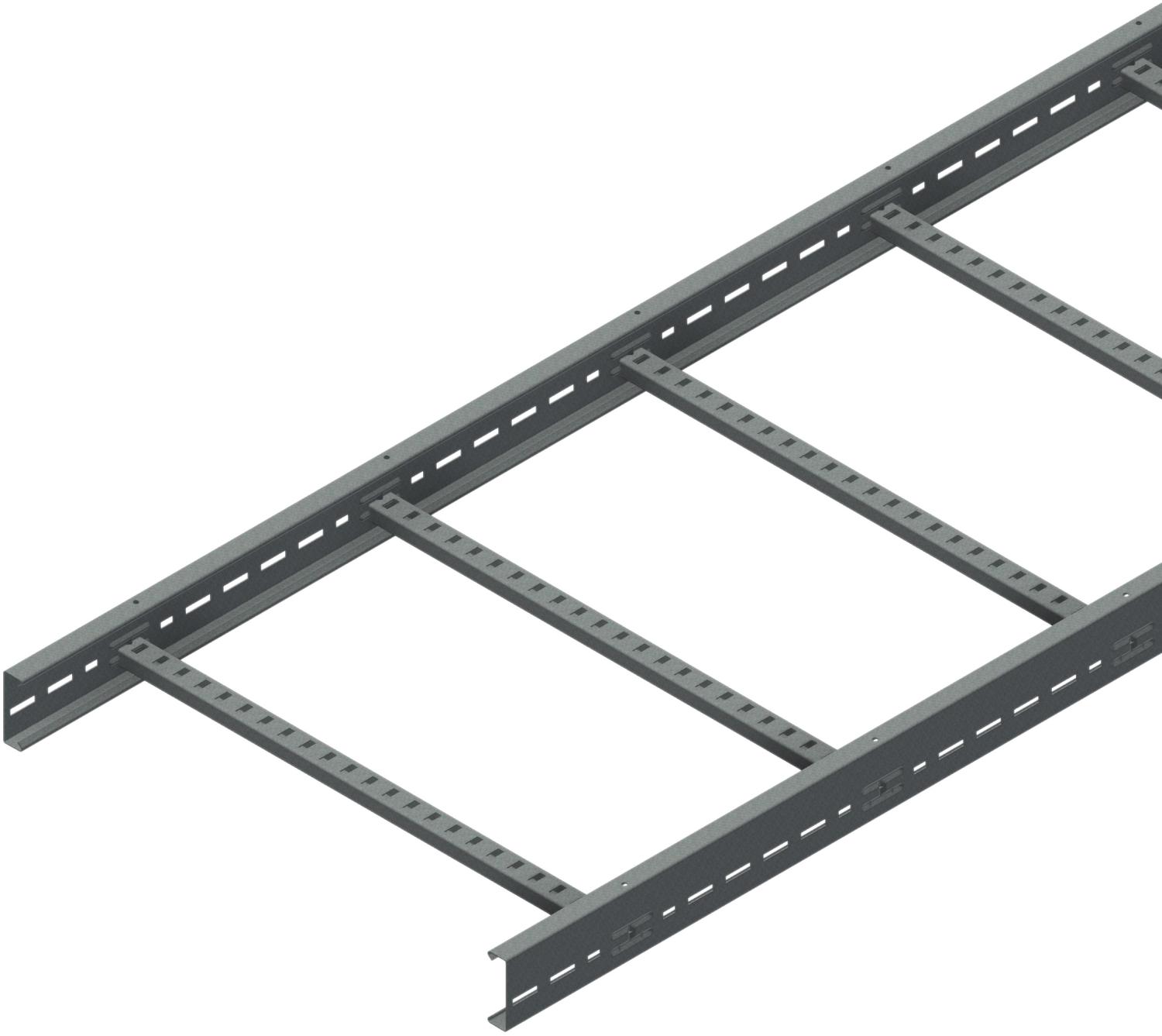

Øglænd System LOE75 Cable Ladder, 600 mm, 3 m, Hot-Dip Galvanised
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System LOE75 cable ladder, 600 mm, length 3 m, hot-dip galvanised. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- LOE75 CL-600-3000 HDG
- EAN / GTIN
- 7070693726511
- Sales unit
- m
- Package quantity
- 3 m
- Type
- Cable ladder
- T Material Thickness (mm)
- 1.25
- T1 Material Thickness (mm)
- 1.25
- X (mm)
- 28
- Y (mm)
- 18
- L Length (mm)
- 3000
- W Width (mm)
- 600
- W1 Width 1 (mm)
- 600
- H Height (mm)
- 75
- CC 1
- 18
- Hole size A
- 7x15
- Hole size B
- 7x30
- Hole size C
- 7x15
- S Spacing (mm)
- 150
- F Flange (mm)
- 14
- D Loading depth (mm)
- 46
- R.S Rung Spacing (mm)
- 300
- Weight (kg)
- 12.500
- ETIM class
- EC000854 - Cable ladder
- CAD models available for
- AVEVA E3D
- Manufacturer item number
- 1372651
- Hilti item number
- 2311013
- Colour
- None
- Rung distance
- 300 mm
- Type of side wall
- Profile (open)
- Type of rung
- Perforated profile
- Side perforation
- Yes
- Length
- 3000 mm
- Material
- Steel
- Usable cross section
- 27600 mm²
- Width cable ladder
- 600 mm
- Height cable ladder
- 75 mm
- Stainless steel, pickled
- No
- Suitable for circuit integrity
- Yes
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693726511
- SAP 1000084444
- Code 8803528
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System Fixing Clamp
FOE/FTE FC-B40x65
Øglænd System
Øglænd System OE Fixing Clamp, 58 mm, M10, Hot-Dip Galvanised
OE FC-TW-M10 x2 HDG
Øglænd System
Øglænd System SPB Cantilever Arm, 100 mm, Stainless Steel
Mekano CA-38-100 PT SS
Øglænd System
Øglænd System Speaker Bracket, 100 mm, Hot-Dip Galvanised
LSP-EQ-FoS-#2 HDG
Øglænd System
Universal Angle S-M SB-Z 300 M6+M10 SS
S-M SB-Z 300 M6 + M10 SS
Øglænd System
Øglænd System FOE-100 Splice Connector for Cable Ladder, 220 mm, Stainless Steel
SPLICE CONNECTORS FOE100 SC SS
Øglænd System
Øglænd System Locking Bolts LS-M10x50, A4 Stainless Steel
S-M LS-M10x50 A4
Øglænd System
Øglænd System S-TOE Pendant Bracket, 400 mm, Stainless Steel/HDG
S-TOE CS-RO-H-400
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LOE75 CL-600-3000 HDG?
- LOE75 CL-600-3000 HDG can be ordered from cballast.com as a Øglænd System catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Øglænd System product?
- The manufacturer part number is LOE75 CL-600-3000 HDG.
- What is the HS code for LOE75 CL-600-3000 HDG?
- The customs tariff (HS) code for LOE75 CL-600-3000 HDG is 7308.90.
- Who manufactures LOE75 CL-600-3000 HDG?
- LOE75 CL-600-3000 HDG is a Øglænd System product in the Cables & Wiring range.
- Is a datasheet available for LOE75 CL-600-3000 HDG?
- Yes — the LOE75 CL-600-3000 HDG datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LOE75 CL-600-3000 HDG?
- The minimum order quantity is 1.
- Is LOE75 CL-600-3000 HDG available?
- Yes — LOE75 CL-600-3000 HDG is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
