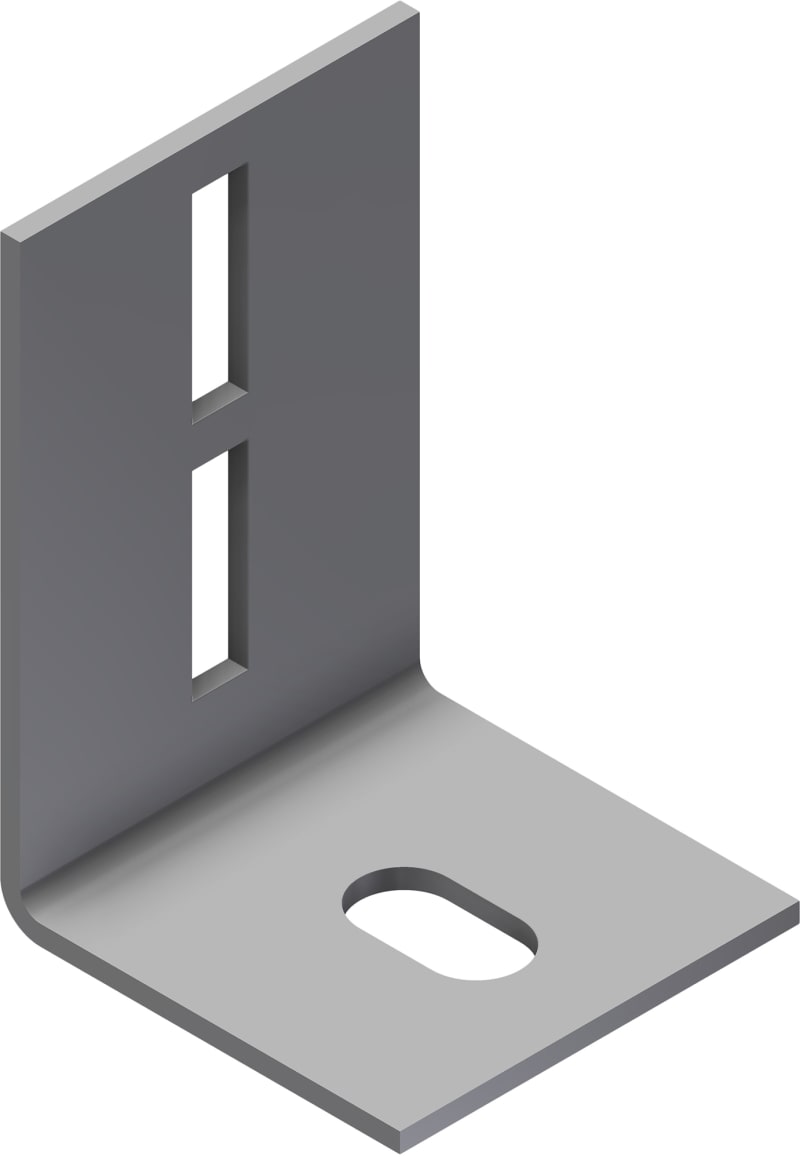

Øglænd System LOE Support Bracket, 50 mm, Stainless Steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System LOE support bracket, 50 mm, stainless steel. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- LOE SB-WL-L-50x75-M10/6 SS
- EAN / GTIN
- 7070693044684
- Sales unit
- pcs
- Type
- Wall Distance Bracket
- T Material Thickness (mm)
- 2.5
- X (mm)
- 50
- Y (mm)
- 75
- Z (mm)
- 50
- CC (mm)
- 30
- Hole size A
- 7x25
- Hole size B
- 11x20
- Weight (kg)
- 0.110
- ETIM class
- EC001005 - Mounting material for cable support system
- CAD models available for
- Autodesk Revit
- Manufacturer item number
- 1304468
- Hilti item number
- 2305105
- Colour
- None
- Width
- 50 mm
- Model
- Profile console
- Height
- 75 mm
- Material quality
- Rustproof and acidproof steel
- Length
- 50 mm
- Material
- Stainless steel
- Stainless steel, pickled
- No
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693044684
- SAP 1200261168
- Code 82301477
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System SPBE20 Flat Elbow 45°, 150 mm, R75, Stainless Steel
SPBE20 FE45-150-R75 SS
Øglænd System
Øglænd System FOE-70 Bend 90°, 400 mm, R300
FOE-70 FE-90-400-R300
Øglænd System
Øglænd System 1301586 ØS Earthing Jumper A-M EL-300/6-10 Cu
Øglænd System
Øglænd System Mekano Beam Clamp, Hot-Dip Galvanised
Mekano 100-4Q BC HDG
Øglænd System
Øglænd System TOE Starter Bracket, 40 mm, Hot-Dip Galvanised
TOE/LOE ST-BO-CS-AP-38 HDG
Øglænd System
Øglænd System LOE Central Support, 50 mm, Pre-Galvanised
LOE CS-CH42-600 PG
Øglænd System
Øglænd System SPB-RF40 Cable Tray, 600 × 40 mm
SPB-RF40-600 ALU
Øglænd System
Øglænd System OE125 Flat Elbow 45°, 450 mm, R600, Stainless Steel
OE125 FE45-450-R600 SS
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LOE SB-WL-L-50x75-M10/6 SS?
- LOE SB-WL-L-50x75-M10/6 SS can be ordered from cballast.com as a Øglænd System catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Øglænd System product?
- The manufacturer part number is LOE SB-WL-L-50x75-M10/6 SS.
- What is the HS code for LOE SB-WL-L-50x75-M10/6 SS?
- The customs tariff (HS) code for LOE SB-WL-L-50x75-M10/6 SS is 7308.90.
- Who manufactures LOE SB-WL-L-50x75-M10/6 SS?
- LOE SB-WL-L-50x75-M10/6 SS is a Øglænd System product in the Cables & Wiring range.
- Is a datasheet available for LOE SB-WL-L-50x75-M10/6 SS?
- Yes — the LOE SB-WL-L-50x75-M10/6 SS datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LOE SB-WL-L-50x75-M10/6 SS?
- The minimum order quantity is 1.
- Is LOE SB-WL-L-50x75-M10/6 SS available?
- Yes — LOE SB-WL-L-50x75-M10/6 SS is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
