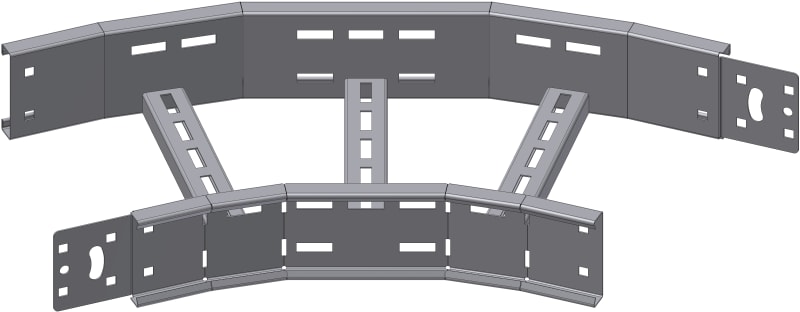

Øglænd System OE125 Flat Elbow 45°, 450 mm, R600, Stainless Steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System OE125 horizontal flat elbow, 45°, 450 mm, radius 600 mm, stainless steel. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- OE125 FE45-450-R600 SS
- EAN / GTIN
- 7070693840620
- Sales unit
- pcs
- Type
- Flat elbow
- T Material Thickness (mm)
- 1.5
- X (mm)
- 665
- Y (mm)
- 758.7
- W1 Width 1 (mm)
- 450
- W2 Width 2 (mm)
- 496
- H Height (mm)
- 125
- Radius
- 600
- A Angle (deg)
- 45
- O Overlap Integrated Splice (mm)
- 80
- D Loading depth (mm)
- 100
- Weight (kg)
- 4.600
- ETIM class
- EC001535 - Bend for cable ladder
- CAD models available for
- AVEVA E3D
- Manufacturer item number
- 1384062
- Hilti item number
- 2301888
- Change of direction
- Horizontal
- Type of side joist
- Profile (open)
- Side perforation
- Yes
- Type of rung
- Perforated profile
- Suitable for cable ladder height
- 125 mm
- Suitable for cable ladder width
- 450 mm
- Model
- Integrated connector
- Inner radius
- 600 mm
- Wide span model
- Yes
- Suitable for circuit integrity
- Yes
- Material
- Steel
- Stainless steel, pickled
- Yes
- Material quality
- Rustproof and acidproof steel
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693840620
- SAP 1000680558
- Code 8284381
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System TOE75 Cable Ladder, 500 mm, 3 m, Stainless Steel
1302042
Øglænd System
Øglænd System SPBE20 Riser, 50 mm, Hot-Dip Galvanised
SPBE20 RI-FX-50 PT HDG
Øglænd System
Øglænd System OE Cable Ladder, Hot-Dip Galvanised
OE FC-B40-54-10/10 HDG
Øglænd System
Øglænd System LOE55 Cross, 400/400 mm, R300, Hot-Dip Galvanised
LOE55 CP400400-R300 HDG
Øglænd System
Øglænd System Detector Bracket, 98 mm, Stainless Steel
DT-EQ-Z SS
Øglænd System
Øglænd System SPBE-20 SC AL Aluminium Joint Bracket
Øglænd System
Øglænd System Angle Profile, 3 m, Hot-Dip Galvanised
AI-LW-50-3000-5-M10 HDG
Øglænd System
Øglænd System OE100 Bend 30°, 450 mm, R600, Stainless Steel
OE100 FE-30-450 R600
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy OE125 FE45-450-R600 SS?
- OE125 FE45-450-R600 SS can be ordered from cballast.com as a Øglænd System catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Øglænd System product?
- The manufacturer part number is OE125 FE45-450-R600 SS.
- What is the HS code for OE125 FE45-450-R600 SS?
- The customs tariff (HS) code for OE125 FE45-450-R600 SS is 7308.90.
- Who manufactures OE125 FE45-450-R600 SS?
- OE125 FE45-450-R600 SS is a Øglænd System product in the Cables & Wiring range.
- Is a datasheet available for OE125 FE45-450-R600 SS?
- Yes — the OE125 FE45-450-R600 SS datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for OE125 FE45-450-R600 SS?
- The minimum order quantity is 1.
- Is OE125 FE45-450-R600 SS available?
- Yes — OE125 FE45-450-R600 SS is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
