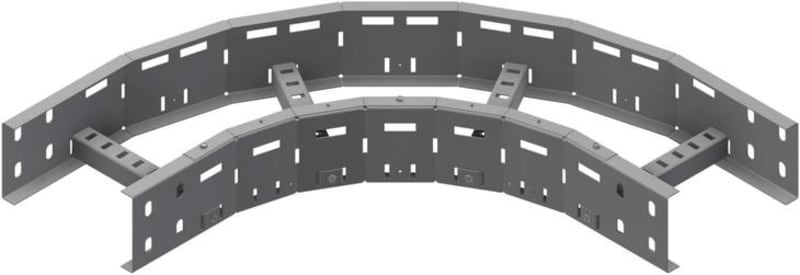

Øglænd System LOE100 Flat Elbow 90°, 200 mm, R300, Stainless Steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System LOE100 horizontal flat elbow, 90°, 200 mm, radius 300 mm, stainless steel. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- LOE100 FE90-200-R300 SS
- EAN / GTIN
- 7070693033855
- Sales unit
- pcs
- T Material Thickness (mm)
- 1.5
- X (mm)
- 631
- Y (mm)
- 631
- W Width (mm)
- 209
- W2 Width 2 (mm)
- 169
- H Height (mm)
- 105
- Radius
- 300
- A Angle (deg)
- 90
- O Overlap Integrated Splice (mm)
- 100
- Fits Ladder Width (mm)
- 200
- Weight (kg)
- 4.900
- ETIM class
- EC001535 - Bend for cable ladder
- CAD models available for
- AVEVA E3D, Hexagon S3D, Autodesk Revit
- Manufacturer item number
- 1303385
- Hilti item number
- 2305843
- Change of direction
- Horizontal
- Type of side joist
- Profile (open)
- Side perforation
- Yes
- Type of rung
- Perforated profile
- Bend model
- Smooth bend
- Hinging
- No
- Suitable for cable ladder height
- 100 mm
- Suitable for cable ladder width
- 200 mm
- Model
- Integrated connector
- Inner radius
- 300 mm
- Wide span model
- No
- Suitable for circuit integrity
- No
- Material
- Stainless steel
- Stainless steel, pickled
- No
- Material quality
- Rustproof and acidproof steel
- Colour
- None
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693033855
- SAP 1200261297
- Code 82301613
Product Documentation
