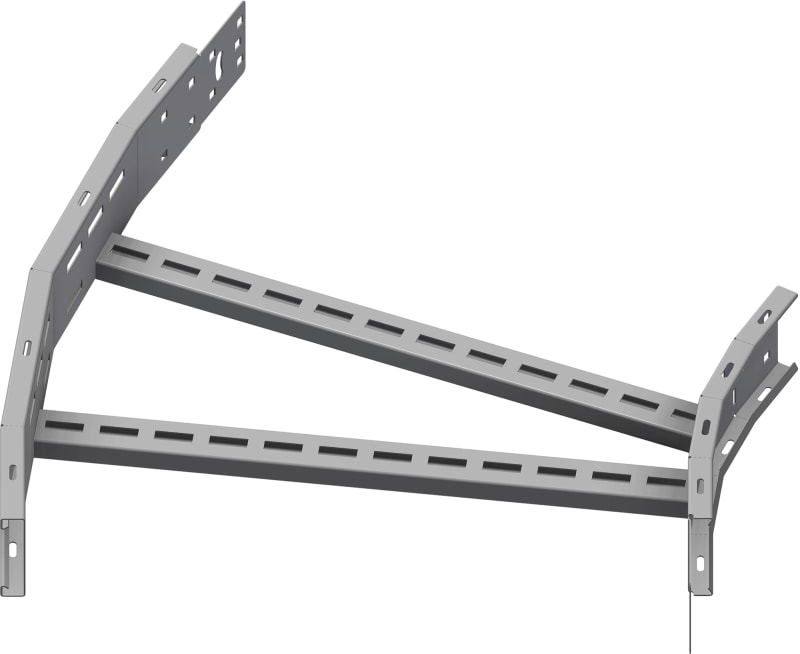

Øglænd System OE100 Flat Elbow 30°, 600 mm, R600, Hot-Dip Galvanised
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System OE100 horizontal flat elbow, 30°, 600 mm, radius 600 mm, hot-dip galvanised. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- OE100 FE30-600-R600 HDG
- EAN / GTIN
- 7070693841474
- Sales unit
- pcs
- Type
- Flat elbow
- T Material Thickness (mm)
- 1.5
- X (mm)
- 723.3
- Y (mm)
- 610.6
- W1 Width 1 (mm)
- 600
- W2 Width 2 (mm)
- 646
- H Height (mm)
- 100
- Width
- 646 mm
- Radius
- 600
- A Angle (deg)
- 30
- O Overlap Integrated Splice (mm)
- 80
- D Loading depth (mm)
- 75
- Rung width
- 600 mm
- Weight (kg)
- 3.500
- ETIM class
- EC001535 - Bend for cable ladder
- CAD models available for
- AVEVA E3D
- Manufacturer item number
- 1384147
- Hilti item number
- 2301864
- Change of direction
- Horizontal
- Type of side joist
- Profile (open)
- Side perforation
- Yes
- Type of rung
- Perforated profile
- Suitable for cable ladder height
- 100 mm
- Suitable for cable ladder width
- 600 mm
- Model
- Integrated connector
- Inner radius
- 600 mm
- Wide span model
- Yes
- Suitable for circuit integrity
- Yes
- Material
- Steel
- Stainless steel, pickled
- No
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693841474
- SAP 1200261067
- Code 82301668
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System OE125 Divider, 350 mm, Stainless Steel
1372022
Øglænd System
TOE/LOE ST-BO-CS-AP-38 ZM
1375422
Øglænd System

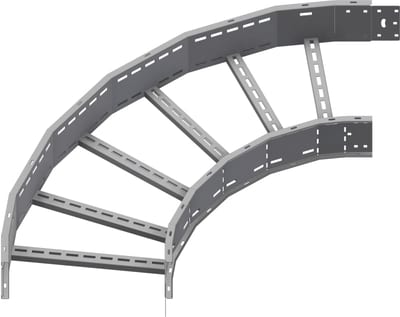

Øglænd System OE150 Flat Elbow 90°, 450 mm, R600, Stainless Steel
1384134
Øglænd System

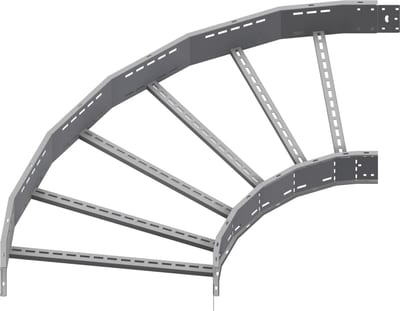

Øglænd System OE150 Flat Elbow 90°, 750 mm, R600, Hot-Dip Galvanised
1384280
Øglænd System

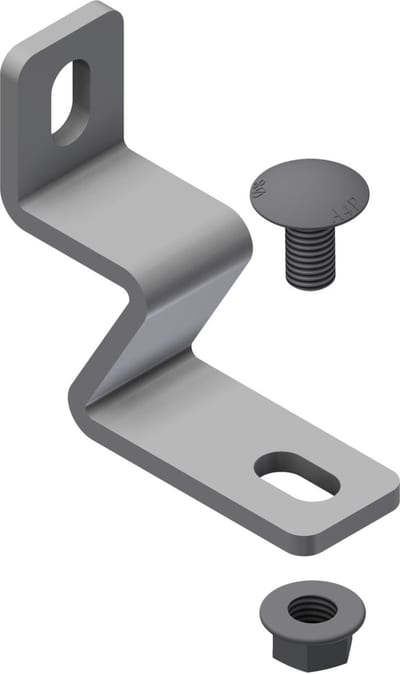

Øglænd System S-SPB Cantilever Arm, 30 mm, Pre-Galvanised
SPB-LB CA-CS-IN-Z-75 PG
Øglænd System

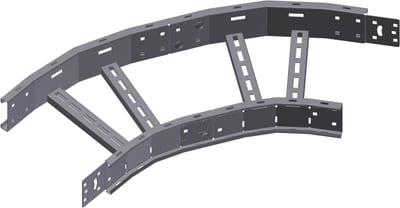

Øglænd System OE100 Bend 60°, 150 mm, R900, Stainless Steel
OE100 FE-60-150 R900
Øglænd System
S-M CH100-2T3-3000 (Mekano CH100-2T-3-MD-3000 HDG)
Øglænd System

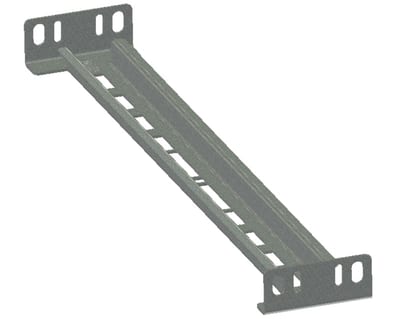

Øglænd System LOE Central Support, 600 mm, Stainless Steel
