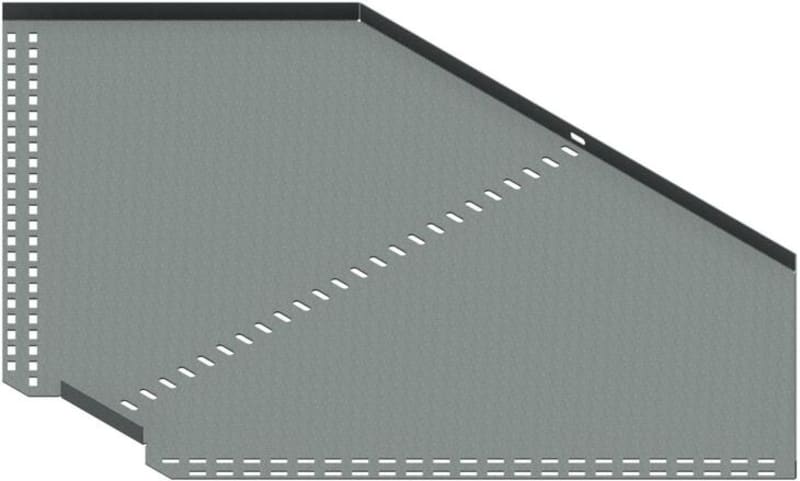

Øglænd System SPBE20 Flat Elbow 90°, 600 mm, R75, Hot-Dip Galvanised
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System SPBE20 horizontal flat elbow, 90°, 600 mm, radius 75 mm, hot-dip galvanised. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- SPBE20 FE90-600-R75 HDG
- EAN / GTIN
- 7070693020176
- Sales unit
- pcs
- Type
- Standard Elbow
- T Material Thickness (mm)
- 1.5
- X (mm)
- 735
- Y (mm)
- 735
- W Width (mm)
- 600
- H Height (mm)
- 22
- Radius
- 75
- A Angle (deg)
- 90
- Hole size A
- 7x20
- Hole size B
- 7x20
- O Overlap Integrated Splice (mm)
- 52
- Fits Tray Width (mm)
- 600
- Weight (kg)
- 6.930
- ETIM class
- EC002400 - Bend for cable tray
- CAD models available for
- Hexagon S3D
- Manufacturer item number
- 1302017
- Change of direction
- Horizontal
- Construction type
- Bend rigid
- Bend model
- Smooth bend
- Inner radius
- 75 mm
- Suitable for cable tray height
- 20 mm
- Suitable for cable tray width
- 600 mm
- Material thickness
- 1.5 mm
- Side perforation
- No
- Bottom perforation
- Yes
- Model
- Integrated connector
- Wide span model
- No
- Material
- Steel
- Stainless steel, pickled
- No
- Colour
- None
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693020176
- SAP 1000063529
- Code 8726933
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System OE100 Cable Ladder, R600
OE100 CP-450 R600
Øglænd System
Øglænd System LOE55 Tee, 300/300 mm, R300, Stainless Steel
LOE55 TE300/300-R300 SS
Øglænd System
Øglænd System UNO Cantilever Arm, 750 mm, Stainless Steel
UNO CA-U-41-2-750 SS
Øglænd System
Øglænd System SPB-LB40 Flat Elbow 90°, 150 mm, R75
1303403
Øglænd System
Øglænd System Instrument Stand IS-1500-1-CH100-2T2 Stainless Steel
INST.STAND CH100-2T3-1500-1 SS
Øglænd System
TOE100 LF-500-THORN-D SS
1302672
Øglænd System
Øglænd System UNO Splice Connector, Hot-Dip Galvanised
UNO SC-D-25 HDG
Øglænd System

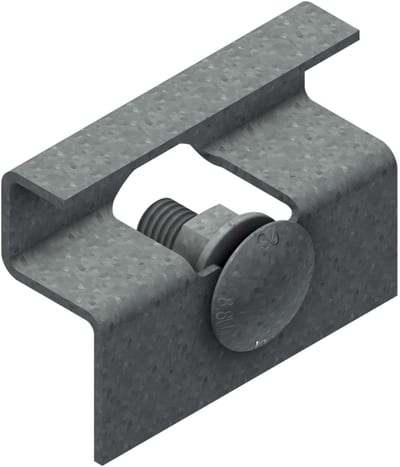

Øglænd System OE Cover Clamp, Hot-Dip Galvanised
OE CC HDG
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy SPBE20 FE90-600-R75 HDG?
- SPBE20 FE90-600-R75 HDG can be ordered from cballast.com as a Øglænd System catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Øglænd System product?
- The manufacturer part number is SPBE20 FE90-600-R75 HDG.
- What is the HS code for SPBE20 FE90-600-R75 HDG?
- The customs tariff (HS) code for SPBE20 FE90-600-R75 HDG is 7308.90.
- Who manufactures SPBE20 FE90-600-R75 HDG?
- SPBE20 FE90-600-R75 HDG is a Øglænd System product in the Cables & Wiring range.
- Is a datasheet available for SPBE20 FE90-600-R75 HDG?
- Yes — the SPBE20 FE90-600-R75 HDG datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SPBE20 FE90-600-R75 HDG?
- The minimum order quantity is 1.
- Is SPBE20 FE90-600-R75 HDG available?
- Yes — SPBE20 FE90-600-R75 HDG is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
