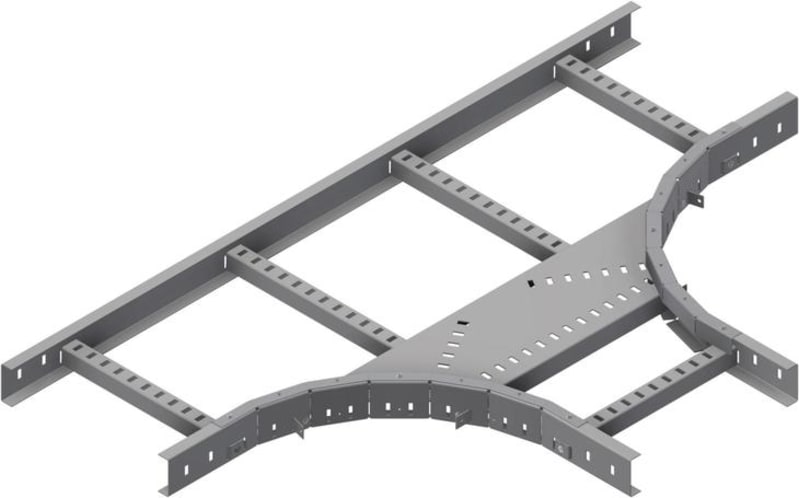

Øglænd System LOE55 Tee, 300/300 mm, R300, Stainless Steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System LOE55 tee (branch piece), 300/300 mm, radius 300 mm, stainless steel. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- LOE55 TE300/300-R300 SS
- EAN / GTIN
- 7070693723510
- Sales unit
- pcs
- T Material Thickness (mm)
- 1.5
- X (mm)
- 1159
- Y (mm)
- 734
- W Width (mm)
- 309
- W2 Width 2 (mm)
- 309
- H Height (mm)
- 60
- Radius
- 300
- A Angle (deg)
- 90°
- CC (mm)
- 25
- Hole size A
- 7x15
- O Overlap Integrated Splice (mm)
- 100
- D Loading depth (mm)
- 27
- Fits Ladder Width (mm)
- 300
- Weight (kg)
- 6.300
- ETIM class
- EC001540 - Tee for cable ladder
- CAD models available for
- AVEVA E3D, Hexagon S3D, Autodesk Revit
- Manufacturer item number
- 1372351
- Hilti item number
- 2308317
- Colour
- None
- Model
- Integrated connector
- Type of rung
- Perforated profile
- Material quality
- Rustproof and acidproof steel
- Material
- Stainless steel
- Inner radius
- 300 mm
- Cable ladder branch width
- 300 mm
- Suitable for cable ladder height
- 55 mm
- Stainless steel, pickled
- No
- Wide span model
- No
- Type of side joist
- Profile (open)
- Suitable for circuit integrity
- Yes
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693723510
- SAP 1200261198
- Code 82301551
Product Documentation
