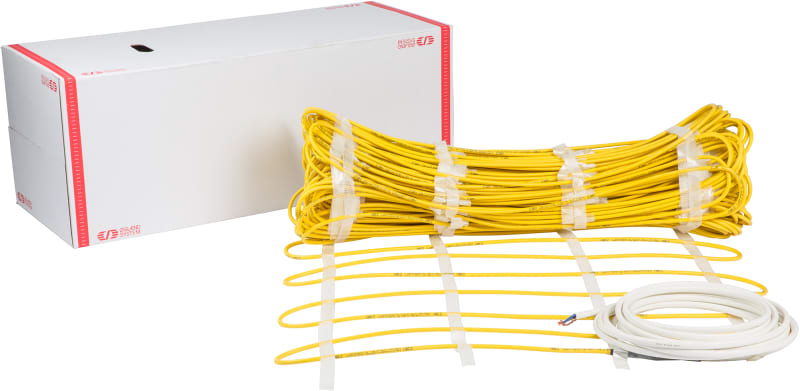

Øglænd System 1037473 ØS Snow-Melting Mat 300 W/m², 1.0 x 17.0 m, 400 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System 1037473 is a ØS outdoor snow-melting mat rated 300 W/m² over a 17 m² heated area, connected at 400 V for a 5100 W total load. The mat measures 1.0 by 17.0 m at 8.3 mm thickness, with a heating conductor load of 30 W/m and one 10 m cold-conductor lead. Not self-adhesive; supplied without room thermostat, floor sensor, or support mat. Country of origin is Sweden.
Technical Specifications
- Manufacturer part number (MPN)
- 1037473
- Sales unit
- pcs
- El-nummer (NO)
- 1037473
- ETIM class
- SC000405
- Voltage
- 400 V
- Width
- 1000 mm
- Application
- Cable
- Power
- 300 W/m²
- Thickness
- 8.3 mm
- Self-adhesive
- No
- Surface
- 17 m²
- With room temperature controller
- No
- Length
- 17000 mm
- Heating conductor load
- 30 W/m
- With support mat
- No
- Number of cold conductors
- 1
- Length of cold conductors
- 10000 mm
- With controller
- No
- Connection voltage
- 400 V
- Connected load
- 5100 W
- With floor temperature sensor
- No
- Suitable as outdoor surface heating
- Yes
- Suitable as roof surface heating
- No
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8516.80
Cross References
- 7331002914808
- El-nr 1037473
Product Documentation
More from Øglænd System
Øglænd System

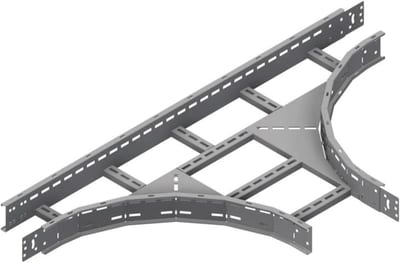

Øglænd System OE100 Tee, 150/300 mm, R600, Stainless Steel
OE100 TE150/300-R600 PT SS
Øglænd System

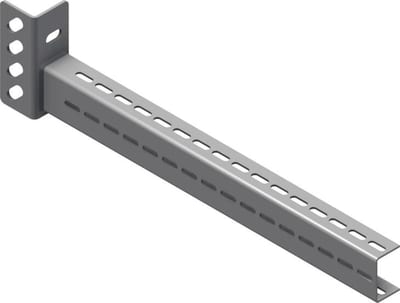

Øglænd System SPB Cantilever Arm, 400 mm, Stainless Steel
Mekano CA-50-400 PT SS
Øglænd System

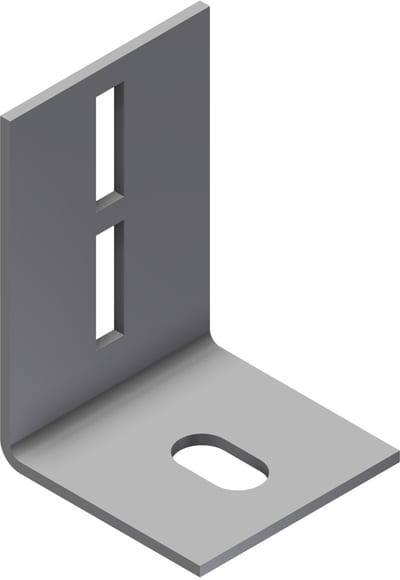

Øglænd System LOE Support Bracket, 50 mm, Stainless Steel
LOE SB-WL-L-50x75-M10/6 SS
Øglænd System

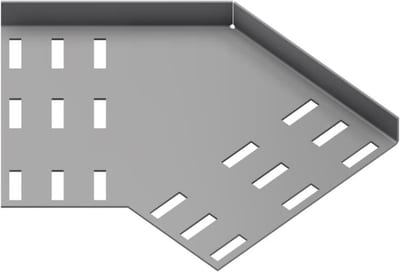

Øglænd System SPBE20 Flat Elbow 45°, 150 mm, R75, Stainless Steel
SPBE20 FE45-150-R75 SS
Øglænd System

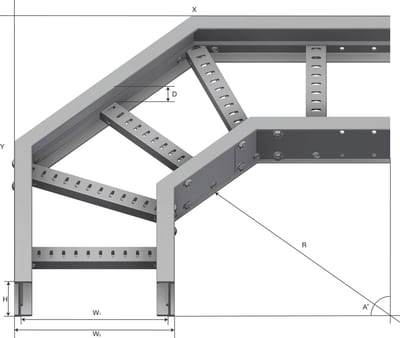

Øglænd System FOE-70 Bend 90°, 400 mm, R300
FOE-70 FE-90-400-R300
Øglænd System

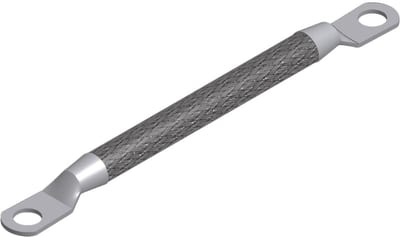

Øglænd System 1301586 ØS Earthing Jumper A-M EL-300/6-10 Cu
Øglænd System

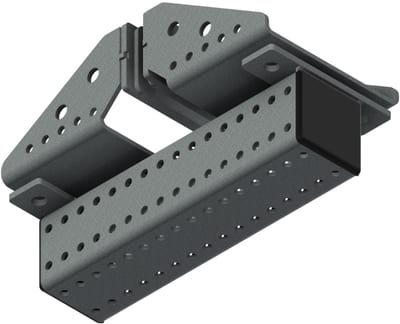

Øglænd System Mekano Beam Clamp, Hot-Dip Galvanised
Mekano 100-4Q BC HDG
Øglænd System

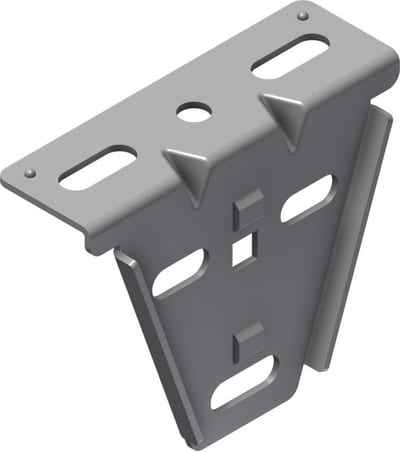

Øglænd System TOE Starter Bracket, 40 mm, Hot-Dip Galvanised
