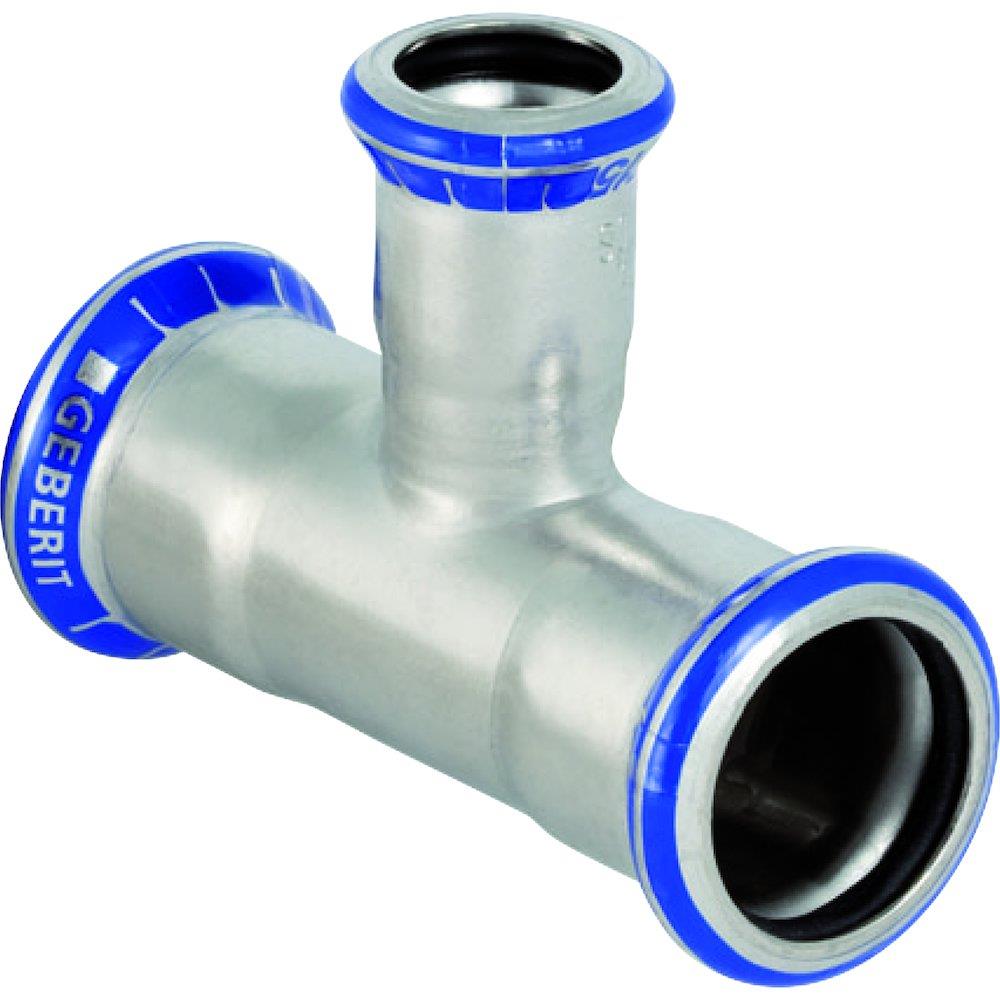

Geberit Mapress T-Piece with reduced branch - 22mm, 18mm, 15mm, 3PCS, coupling
Pricing
Request a quote
We reply within 24 hours
Product Description
Geberit Mapress T-Piece with reduced branch. T-pieces (Plumbing / Press fittings and pipes / Mapress stainless acid-resistant). Principal data: pipe dimension 1 22 mm, pipe dimension 2 18 mm, dimension on branch 15 mm, number of pressure sleeves 3 pcs. Supplied under manufacturer part number 31227, EAN 4024723312277, HS code 7307.29, country of origin Germany.
Technical Specifications
- Product type
- T-pieces
- Product group
- Press fittings and pipes
- Pipe dimension 1
- 22 mm
- Pipe dimension 2
- 18 mm
- Dimension on branch
- 15 mm
- Number of pressure sleeves
- 3 pcs
- Press end type
- Socket
- DN dimension
- 20/12/15
- Angle
- 90°
- Length built-in dimension
- 85 mm
- Material
- CrNiMo-steel 1.4401 (DIN EN 10088)
- Jointing system
- Press
- O ring
- CIIR black
- Press jaw
- M jaws
- Temperature max
- 120 °C
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.5160 kg CO2e per pcs
- Environmental declaration
- EPD third-party verified
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 73072980
- HS code
- 7307.29
- Manufacturer part number
- 31227
- GTIN (EAN)
- 4024723312277
- VVS number
- 034330268
Standards & Compliance
- HS Code
- 7307.29
Cross References
- MPN 31227
- EAN 4024723312277
- VVS 034330268
