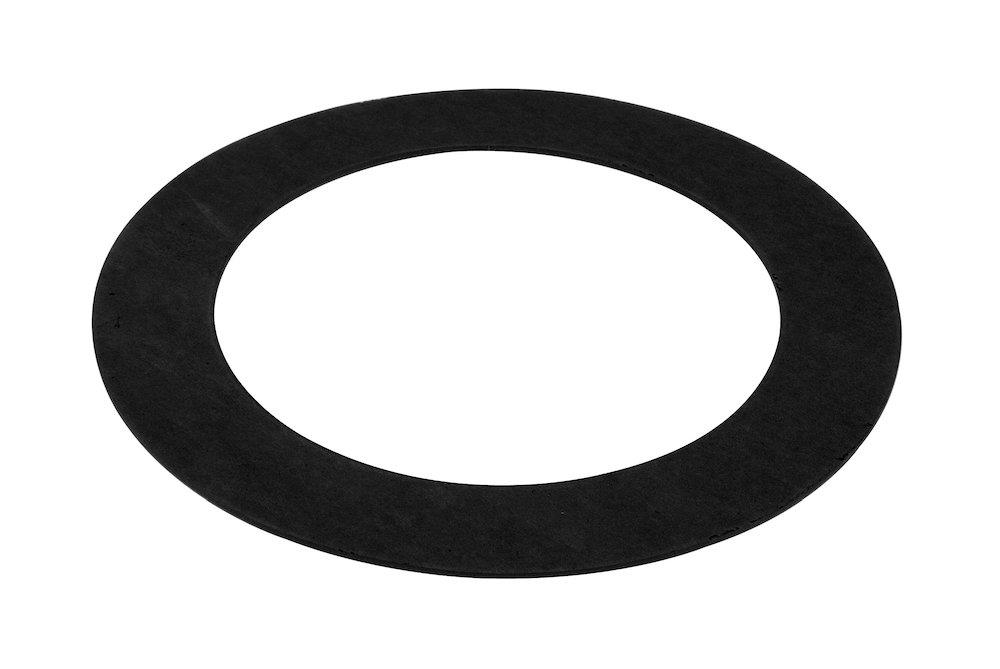

Steel-Reinforced EPDM Flange Gasket, DN 65 PN 10-40, 127 x 77 x 4 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
EPDM flange gasket with a steel insert for DN 65 flanges, 127 mm outside diameter, 77 mm inside diameter and 4 mm thick, sized for pipes with a 76.1 mm outside diameter. Hardness 70 ±5 IRHD, rated PN 10-40 across -30 °C to 120 °C and KTW drinking-water approved. Country of origin Germany.
Technical Specifications
- Product type
- Flange gaskets Product group: Pipes and fittings Outer diameter: 127 mm Inner diameter: 77 mm Thickness: 4 mm DN dimension: 65 For pipes with outer diameter: 76.1 mm Hardness: 70±5 Type: with steel insert EPDM Temperature min: -30 °C Temperature max: 120 °C Approval: KTW Drikkevands godkendt Pressure PN: 10 to 40 Carbon footprint (EPD): 0.2579 kg CO2e per pcs Country of origin: Germany Customs tariff code (EU CN): 69149000 HS code: 6914.90 Manufacturer part number: FP-EPDM-DN065 VVS number: 000664076
Standards & Compliance
- HS Code
- 6914.90
Cross References
- MPN FP-EPDM-DN065
