Function

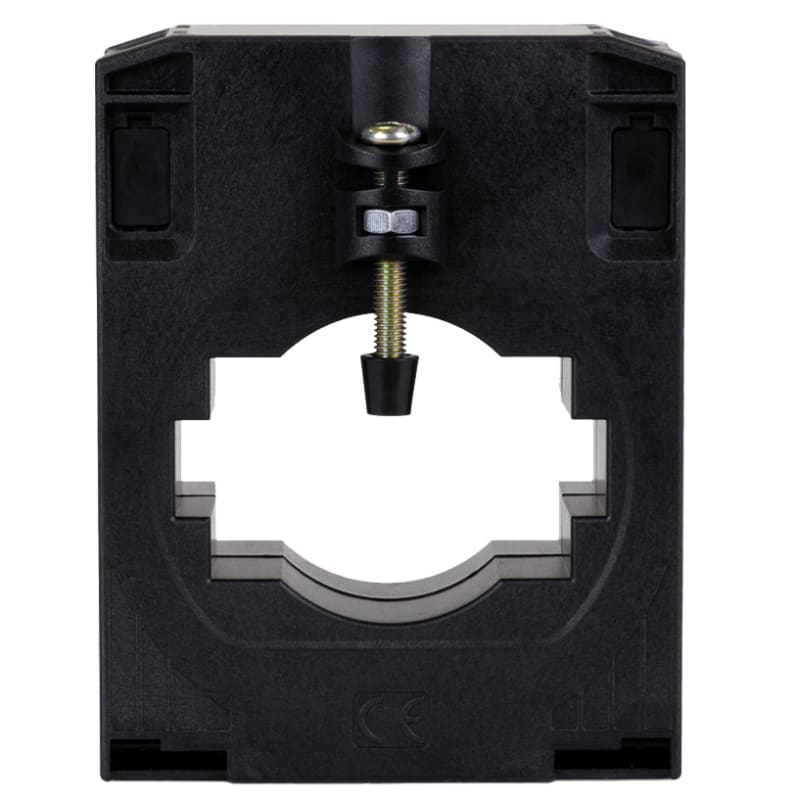

Current Transformer TD8 500/5A kl 0,5
Part numberCI7506CEAN / GTIN8433059310141HS code8504.31
Electrical Components
Current Transformers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Function CI7506C Current transformer TD8 500/5A class 0,5.
Technical Specifications
- Manufacturer part number (MPN)
- CI7506C
- EAN / GTIN
- 8433059310141
- Sales unit
- pcs
- Model
- Through-feed current converter
- Rated primary current
- 500 A
- Rated secondary current
- 5 A
- Rated secondary apparent power
- 2.5 VA
- Accuracy class
- 0.5
- Overcurrent limiting factor
- FS 5
- Calibrated
- Yes
- With contact protection
- No
- Height opening
- 0–30 mm
- Width opening
- 0–50 mm
- Opening diameter
- 43 mm
- Snap mounting
- No
- With copper rail
- No
- Number of primary inputs
- 2
- Secondary connection
- Screw connection
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 8433059310141
- SAP 1200723845
- Code 83860301
Product Documentation
Document preview: Current Transformer TD8 500/5A kl 0,5 (CI7506C) — Specification sheet
