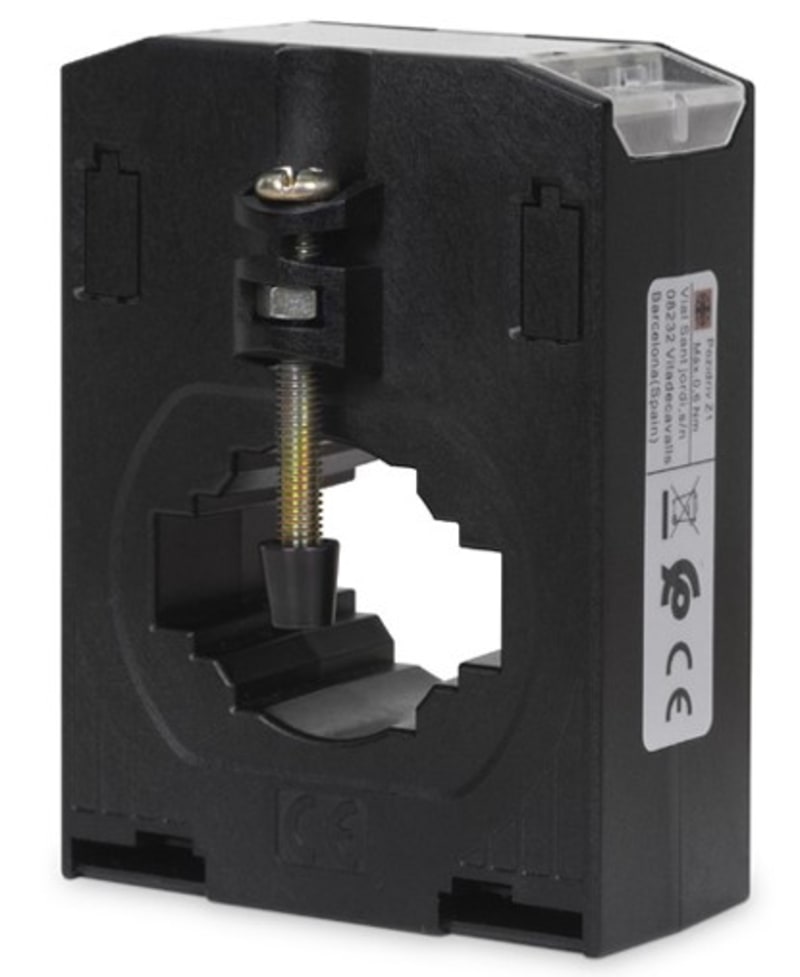

Current Transformer TDH6,2 400/5A kl 0,2S (CI7705BFU01)
Function

Current Transformer TDH6,2 400/5A kl 0,2S

Part numberCI7705BFU01EAN / GTIN8433059423070HS code8504.31
Electrical Components
Current Transformers
MOQ:1

Pricing

Request a quote

We reply within 24 hours

Request Quote
EmailDatasheet

Product Description

Function CI7705BFU01 Current transformer TDH6,2 400/5A kl 0,2s.

Technical Specifications

Manufacturer part number (MPN)
CI7705BFU01 EAN / GTIN: 8433059423070 Sales unit: pcs minimum order quantity: 3 Model: Through-feed current converter Rated primary current: 400 A Rated secondary current: 5 A Rated secondary apparent power: 5 VA Accuracy class: 0.2S Overcurrent limiting factor: FS 5 Calibrated: Yes With contact protection: No Height opening: 0–25 mm Width opening: 0–30 mm Opening diameter: 26 mm With copper rail: No Number of primary inputs: 2 Secondary connection: Screw connection Country of origin: Spain

Standards & Compliance

HS Code
8504.31

Cross References

  • EAN 8433059423070
  • SAP 1200880967
  • Code 84111653

Product Documentation

Current Transformer TDH6,2 400/5A kl 0,2S (CI7705BFU01) — Specification sheetDownload
Document preview: Current Transformer TDH6,2 400/5A kl 0,2S (CI7705BFU01) — Specification sheet
