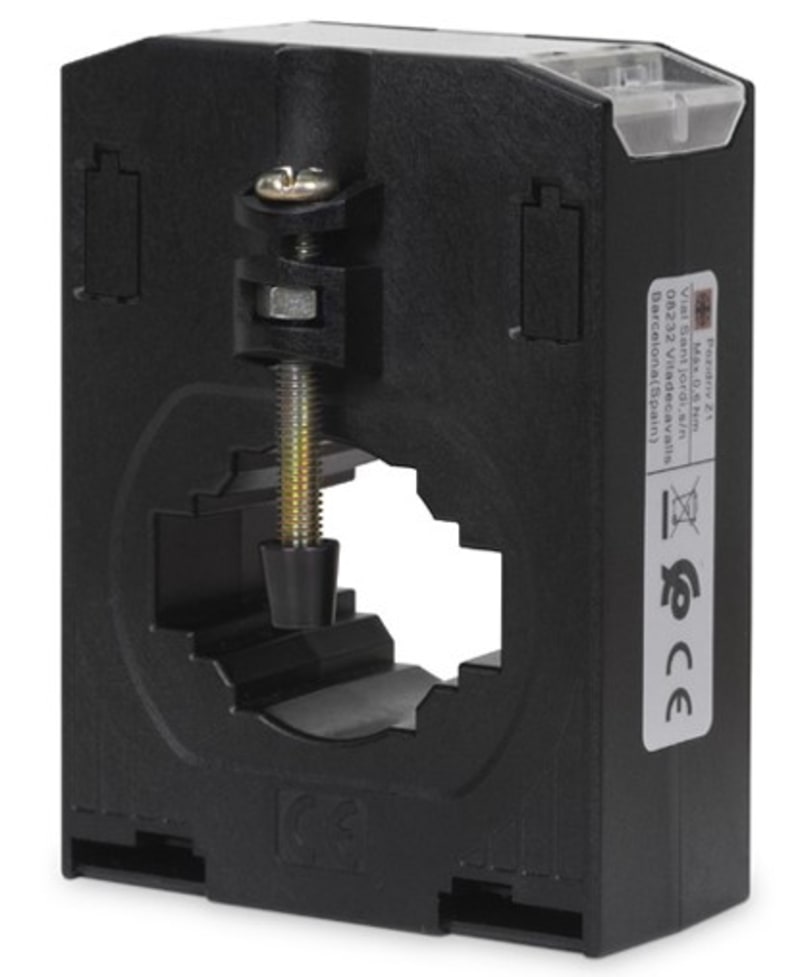

Current Transformer TDH6 200/5A kl 0,2S (CI77048FU01)
Function

Current Transformer TDH6 200/5A kl 0,2S

Part numberCI77048FU01EAN / GTIN8433059423247HS code8504.31
Electrical Components
Current Transformers
MOQ:1

Pricing

Request a quote

We reply within 24 hours

Request Quote
EmailDatasheet

Product Description

Function CI77048FU01 Current transformer TDH6 200/5A kl 0,2s.

Technical Specifications

Manufacturer part number (MPN)
CI77048FU01 EAN / GTIN: 8433059423247 Sales unit: pcs minimum order quantity: 3 Model: Through-feed current converter Rated primary current: 200 A Rated secondary current: 5 A Rated secondary apparent power: 1.25 VA Accuracy class: 0.2S Overcurrent limiting factor: FS 5 Calibrated: Yes With contact protection: No Height opening: 0–30 mm Width opening: 0–40 mm Opening diameter: 28 mm With copper rail: No Number of primary inputs: 2 Secondary connection: Screw connection Country of origin: Spain

Standards & Compliance

HS Code
8504.31

Cross References

  • EAN 8433059423247
  • SAP 1200880954
  • Code 84111649

Product Documentation

Current Transformer TDH6 200/5A kl 0,2S (CI77048FU01) — Specification sheetDownload
Document preview: Current Transformer TDH6 200/5A kl 0,2S (CI77048FU01) — Specification sheet

More from Function

Current Transformer TP-PUSH816 1000/5A

Function

Current Transformer TP-PUSH816 1000/5A

SL29511000

Current Transformer TDH6 300/5A kl 0,2S

Function

Current Transformer TDH6 300/5A kl 0,2S

CI7704AFU01

Current Transformer TP-PUSH812 2000/5A

Function

Current Transformer TP-PUSH812 2000/5A

SL28512000

Current Transformer TDH6,2 200/5A kl 0,2S

Function

Current Transformer TDH6,2 200/5A kl 0,2S

CI77058FU01

Current Transformer TP-PUSH816 2500/5A

Function

Current Transformer TP-PUSH816 2500/5A

SL29512500

Current Transformer TP-PUSH68 500/5A

Function

Current Transformer TP-PUSH68 500/5A

SL11510500

Current Transformer TP-PUSH816 1250/5A

Function

Current Transformer TP-PUSH816 1250/5A

SL29511250

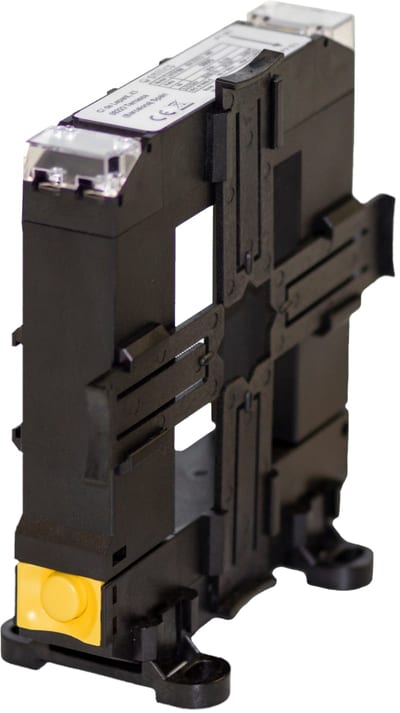

Current Transformer TP-PUSH812 800/5A

Function

Current Transformer TP-PUSH812 800/5A

SL28510800

Technical guides

More Function Electrical Components →

Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.

Frequently asked questions

Where can I buy CI77048FU01?
CI77048FU01 can be ordered from cballast.com as a Function catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
What is the manufacturer part number for this Function product?
The manufacturer part number is CI77048FU01.
What is the HS code for CI77048FU01?
The customs tariff (HS) code for CI77048FU01 is 8504.31.
Who manufactures CI77048FU01?
CI77048FU01 is a Function product in the Electrical Components range.
Is a datasheet available for CI77048FU01?
Yes — the CI77048FU01 datasheet can be viewed and downloaded on this page.
What is the minimum order quantity for CI77048FU01?
The minimum order quantity is 1.
Is CI77048FU01 available?
Yes — CI77048FU01 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
