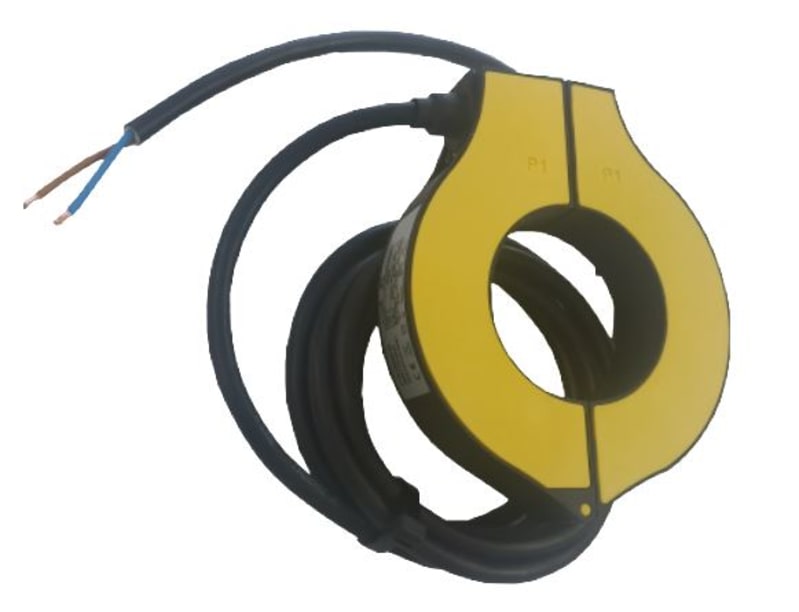

Function TP-Loop80 Split-Core Current Transformer 2000/5 A Class 0.5
Pricing
Request a quote
We reply within 24 hours
Product Description
Function SL13512000 is a TP-Loop80 split-core current transformer with a primary rating of 2000 A and a secondary of 5 A. Accuracy class is 0.5 with a rated burden of 8 VA and overcurrent limiting factor FS 10. The window has a diameter of 80 mm to fit large busbars or cable runs. A 3 m secondary cable with 2.5 mm² conductors is included.
Technical Specifications
- Manufacturer part number (MPN)
- SL13512000
- EAN / GTIN
- 7070738012722
- Sales unit
- pcs
- Model
- Pipe stick current converter
- Rated primary current
- 2000 A
- Rated secondary current
- 5 A
- Rated secondary apparent power
- 8 VA
- Accuracy class
- 0.5
- Overcurrent limiting factor
- FS 10
- With contact protection
- Yes
- Height opening
- 80 mm
- Width opening
- 80 mm
- Opening diameter
- 80 mm
- Snap mounting
- Yes
- With copper rail
- No
- Number of primary inputs
- 1
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 7070738012722
- SAP 1200477136
- Code 82557778
Product Documentation
