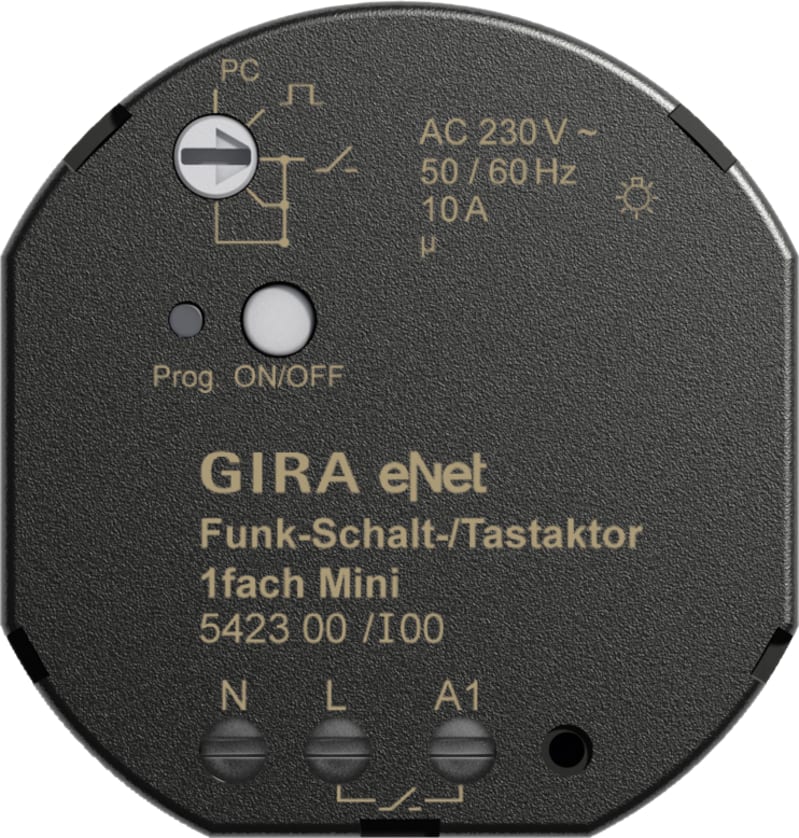

Function GE542300 eNet Single-Channel Mini Impulse Relay Module
Pricing
Request a quote
We reply within 24 hours
Product Description
Function GE542300 is an eNet radio-frequency single-channel impulse relay module in mini format, controlling loads up to 2300 W and up to 500 W of LED lighting. The module supports bidirectional radio communication, local hand operation and connection to differing phases at 230 V rated voltage. IP20 rated with a minimum flush-box depth of 25 mm and one digital input. Supplied in packs of 10.
Technical Specifications
- Manufacturer part number (MPN)
- GE542300
- EAN / GTIN
- 4010337774204
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Bus system KNX
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- Yes
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- eNet
- Radio frequency bidirectional
- Yes
- Local operation/hand operation
- Yes
- With LED indication
- No
- Number of digital inputs
- 1
- Max. switching power
- 2300 W
- Max. switching power LED
- 500 W
- Suitable for C-load
- No
- Max. number of switching contacts
- 1
- Rated operating voltage
- 230 V
- Different phases connectable
- Yes
- With bus connection
- Yes
- Bus module detachable
- No
- Min. depth of built-in installation box
- 25 mm
- Modular expandability
- No
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8526.92
Cross References
- EAN 4010337774204
- SAP 1000603413
- Code 8719830
