Function

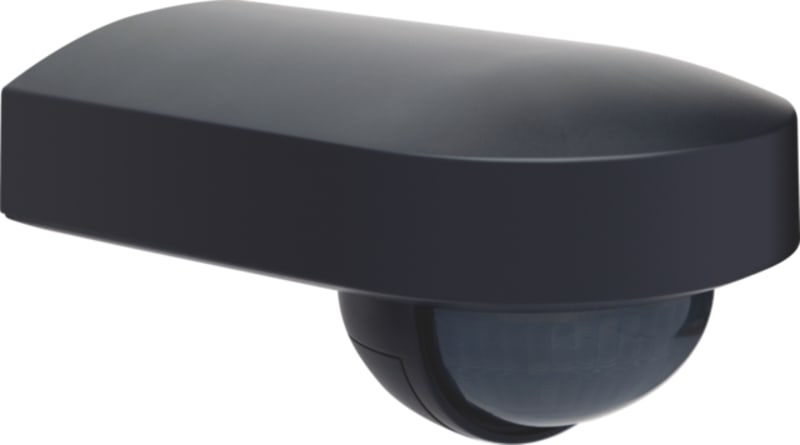

Motion sensor wall/ceiling 180° anthracite
Part number41-232/ANEAN / GTIN5703102205605HS code8536.90
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Function 41-232/AN Motion sensor wall/ceiling 180° antrasitta.
Technical Specifications
- Manufacturer part number (MPN)
- 41-232/AN
- EAN / GTIN
- 5703102205605
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Nominal voltage
- 230 V
- Mounting method
- Surface mounted
- Colour
- Anthracite
- Width
- 90 mm
- Model
- Movement sensor
- Halogen free
- Yes
- Height
- 70 mm
- Depth
- 130 mm
- Connection type
- Screwed terminal
- Creep-under protection
- No
- Voltage type
- AC
- Switch-off delay
- 1800 s
- Frequency
- 50 Hz
- With remote control
- No
- Staircase light controller
- No
- Bridging switch
- No
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. reach frontally
- 11 m
- Max. reach sideways
- 11 m
- Max. switching power
- 2300 W
- Temperature
- -20–45 °C
- Max. starting current
- 800 A
- Material
- Plastic
- Response value sensitivity adjustable
- Yes
- Dim function with dimmer basic element
- No
- Response value luminosity
- 5–50000 lx
- Suitable for C-load
- Yes
- Diameter reach on floor
- 11 m
- Remote operation
- No
- HVAC-control
- No
- Constant light control
- No
- Substation input
- No
- RAL-number (similar)
- 7016
- With signal unit
- No
- Teach-function for response value luminosity
- No
- Networkable
- No
- Forced switch off
- No
- Scan angle
- 180 °
- Degree of protection (IP)
- IP54
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Surface finishing
- Matt
- Detection angle horizontal
- 0–180 °
- Min. switch-on time
- 0.01 s
- Max. duty cycle
- 0.01 min
- Response value luminosity adjustable
- Yes
- Optimum mounting height
- 2.5 m
- Number of switching zones
- 10
- With DALI interface
- No
- IFTTT support available
- No
- Forced switch on
- No
- Min. starting current
- 0 A
- Min. depth of built-in installation box
- 0 mm
- Max. presence range
- 48 m²
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Sensor type
- Passive infrared
- Suitable for ceiling mounting
- Yes
- Anti-bacterial treatment
- No
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 5703102205605
- SAP 1000420115
- Code 8504170
Product Documentation
Document preview: Motion sensor wall/ceiling 180° anthracite (41-232/AN) — Specification sheet
