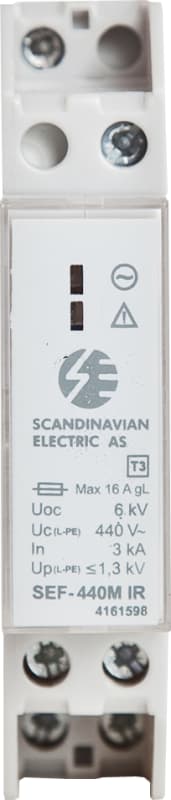

1 Moduls Finvern Protection 16A T3
Pricing
Request a quote
We reply within 24 hours
Product Description
Function SEF-440M-IR 1 module surge protector/finvern protection max. 16A, T3 with alarm connector.
Technical Specifications
- Manufacturer part number (MPN)
- SEF-440M-IR
- EAN / GTIN
- 8435297834090
- Sales unit
- pcs
- Rated current
- 16 A
- System configuration DC
- No
- System configuration IT
- Yes
- System configuration TN
- Yes
- System configuration TN-C
- Yes
- System configuration TT
- Yes
- Number of conductors (without earthing)
- 2
- Nominal discharge surge current (8/20)
- 3 kA
- Max. discharge surge current (8/20)
- 3 kA
- Nominal voltage AC
- 230 V
- Max. continuous voltage AC
- 275 V
- Voltage protection level L-N
- 1.2 kV
- Voltage protection level N-PE
- 1.5 kV
- Integrated backup fuse
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 1 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 6 mm²
- Max. conductor cross section flexible (fine-strand)
- 6 mm²
- With remote signalling contact
- Yes
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 8435297834090
- SAP 1000321663
- Code 81035427
Product Documentation
