Function

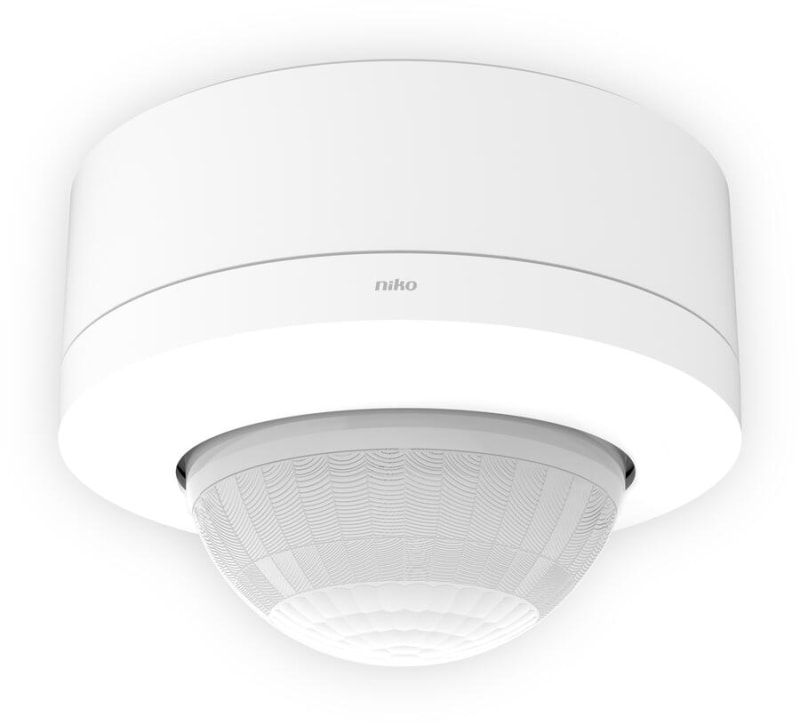

Function P41LR Surface-Mounted Presence Sensor 230 V, 32-37 m, 360 Degrees

Name: Function P41LR Surface-Mounted Presence Sensor 230 V, 32-37 m, 360 Degrees
Brand: Function
SKU: 353-702021

Part number353-702021EAN / GTIN5413736374119HS code8536.50

Lighting & Electrical Accessories

Motion Sensors

MOQ:1

Pricing

Request a quote

We reply within 24 hours

Request Quote

Email Datasheet

Product Description

Function 353-702021 is a P41LR surface-mounted presence detector operating on 230 V AC with a 360 degree scan angle and 32-37 m sideways reach. The white thermoplastic housing is rated IP54 / IK04 and connects via push-in terminals.

Technical Specifications

Manufacturer part number (MPN): 353-702021
EAN / GTIN: 5413736374119
Sales unit: pcs
Package quantity: 36 pcs
Voltage: 230 V
Nominal voltage: 230 V
Mounting method: Surface mounted
Colour: White
Width: 100 mm
Model: Presence detector
Halogen free: Yes
Height: 50 mm
Depth: 50 mm
RAL-number: 9010
Connection type: Push-in clamp
Surface protection: Untreated
Creep-under protection: Yes
Voltage type: AC
Switch-off delay: 7200 s
Built-in depth: 100 mm
Frequency: 50 Hz
With remote control: No
Diameter: 100 mm
Built-in width: 70 mm
Built-in diameter: 70 mm
Staircase light controller: No
Bridging switch: No
Suitable for wireless transmission: Yes
Material quality: Thermoplastic
Max. reach frontally: 10 m
Max. reach sideways: 37 m
Max. switching power: 2300 W
Temperature: -25–40 °C
Max. starting current: 800 A
Material: Plastic
Response value sensitivity adjustable: Yes
Dim function with dimmer basic element: No
Response value luminosity: 20–2000 lx
Suitable for C-load: Yes
Diameter reach on floor: 37 m
Remote operation: Yes
HVAC-control: No
Constant light control: No
Substation input: No
With signal unit: No
Teach-function for response value luminosity: No
Networkable: No
Forced switch off: No
Scan angle: 360 °
Built-in length: 100 mm
Impact strength: IK04
Degree of protection (IP): IP54
With alarm function: No
Transparent: No
Animal zone: No
Surface finishing: Matt
Detection angle horizontal: 360 °
Min. switch-on time: 15 s
Max. duty cycle: 120 min
Suitable for wall mounting: No
Response value luminosity adjustable: Yes
Optimum mounting height: 3 m
Pivoting range sensor, horizontal: 360 °
Pivoting range sensor, vertical: 360 °
Number of switching zones: 5
With DALI interface: No
IFTTT support available: No
Forced switch on: No
Min. starting current: 0 A
Max. presence range: 50 m²
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
Max. switching power LED: 350 W
Sensor type: Passive infrared
Suitable for ceiling mounting: Yes
Anti-bacterial treatment: No
Country of origin: Thailand

Standards & Compliance

HS Code: 8536.50

Cross References

EAN 5413736374119
SAP 1200611961
Code 83006631

Product Documentation

Function P41LR Surface-Mounted Presence Sensor 230 V, 32-37 m, 360 Degrees (353-702021) — Specification sheet Download

Document preview: Function P41LR Surface-Mounted Presence Sensor 230 V, 32-37 m, 360 Degrees (353-702021) — Specification sheet
