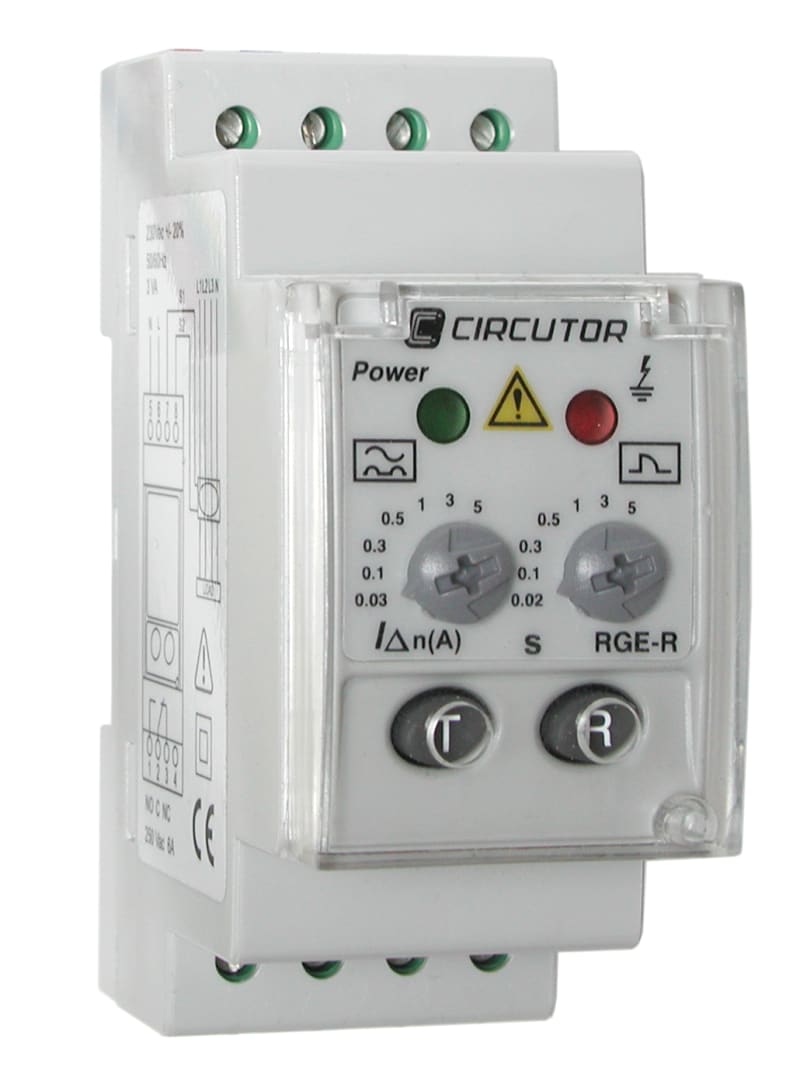

Function RGE-R5A Earth Leakage Relay — Type A, for WG/WGC Toroid, 230 V AC

The RGE series are compact electronic earth leakage relays that work with an external toroidal transformer of the Circutor WG/WGC range, ordered separately and sized to the cable it encircles. The relay measures the residual current — the difference between the current flowing out to a load and the current returning from it, which is only non-zero when some of it is escaping to earth — and signals a separate switching device to open. That split is what allows the arrangement to protect circuits far larger than any self-contained RCD can handle, and to be set independently of the breaker it drives. They are type A devices with high-frequency filtering and true RMS (TRMS) measurement, occupy a reduced two-module width, carry LED status indication and are built to IEC 60947-2, IEC 60755, IEC 62020 and IEC 61008. This is the RGE-R5A variant. It runs from a 230 V AC supply within a 195–265 V range and provides a change-over output contact together with normally-open and normally-closed contacts. The external toroidal transformer is not included and is selected to suit the cable diameter and the sensitivity required. Manufactured by Circutor (Spain) and supplied under the Function brand; the Circutor catalogue reference is RGE-R5A. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.

Manufacturer part number (MPN)

1661459

Sales unit

pcs

El-nummer (NO)

1661459

ETIM class

SC001444

Operating voltage AC 50 Hz

195–265 V

Operating voltage AC 60 Hz

195–265 V

External power supply required

Yes

Supply voltage AC 50 Hz

195–265 V

Supply voltage AC 60 Hz

195–265 V

Rated operating frequency

50–60 Hz

Voltage type (operating voltage)

AC

Type of electric connection

Screw connection

Rated control supply voltage AC 50 Hz

230 V

Rated control supply voltage AC 60 Hz

230 V

Voltage type for actuating

AC

With detachable clamps

No

Function

For AC-current system

Rated frequency

50–60 Hz

Indication of insulation value

No

Error registration possible

No

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Number of contacts as change-over contact

1

Width

60 mm

Height

95 mm

Depth

95 mm

Country of origin

Spain

Device type

Earth leakage relay for external toroidal transformer

Residual current type

Type A, with high-frequency filtering and TRMS measurement

Toroidal transformer series

Circutor WG / WGC range (external, ordered separately)

Standards

IEC 60947-2, IEC 60755, IEC 62020, IEC 61008

Indication

LED status indication

Manufacturer

Circutor, Spain

Manufacturer model

RGE-R5A

Model

RGE-R5A

HS Code

8536.20
