Function
Tilst.-sensor P41MR 230V S 12-13M SF
Part number353-601021EAN / GTIN5413736374287HS code8536.90
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

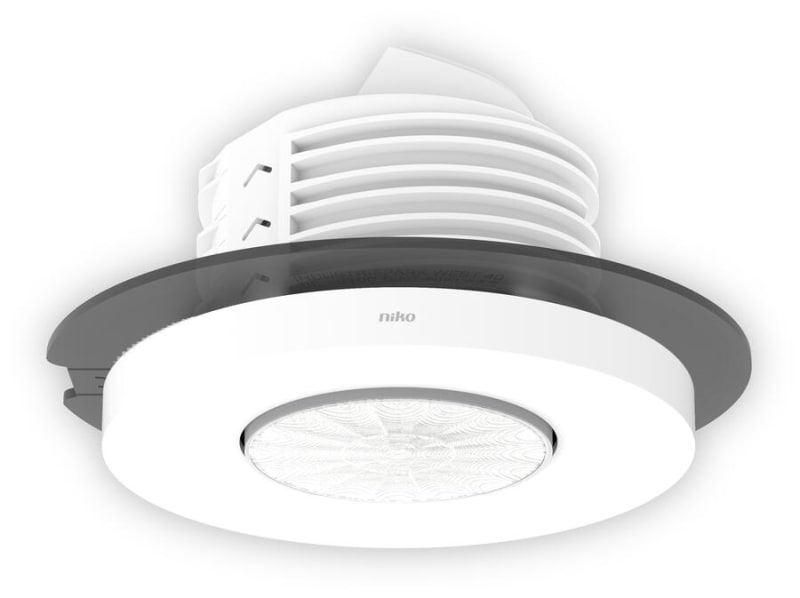

Presence sensor P41MR, 230 V, secondary, 12-13 m, 360°, SnapFit,.
Technical Specifications
- Manufacturer part number (MPN)
- 353-601021
- EAN / GTIN
- 5413736374287
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 45 pcs
- Voltage
- 230 V
- Nominal voltage
- 230 V
- Mounting method
- Flush-mounted
- Colour
- White
- Width
- 100 mm
- Model
- Presence detector
- Halogen free
- Yes
- Height
- 66 mm
- Depth
- 66 mm
- RAL-number
- 9010
- Connection type
- Push-in clamp
- Surface protection
- Untreated
- Creep-under protection
- Yes
- Voltage type
- AC
- Built-in depth
- 57 mm
- Frequency
- 50 Hz
- With remote control
- No
- Diameter
- 100 mm
- Built-in width
- 70 mm
- Built-in diameter
- 70 mm
- Staircase light controller
- No
- Bridging switch
- No
- Suitable for wireless transmission
- Yes
- Material quality
- Thermoplastic
- Max. reach frontally
- 3 m
- Max. reach sideways
- 13 m
- Max. switching power
- 2300 W
- Temperature
- -25–40 °C
- Max. starting current
- 800 A
- Material
- Plastic
- Response value sensitivity adjustable
- Yes
- Dim function with dimmer basic element
- No
- Response value luminosity
- 20–2000 lx
- Suitable for C-load
- Yes
- Diameter reach on floor
- 13 m
- Remote operation
- Yes
- HVAC-control
- No
- Constant light control
- No
- Substation input
- Yes
- With signal unit
- No
- Teach-function for response value luminosity
- No
- Networkable
- No
- Forced switch off
- No
- Scan angle
- 360 °
- Built-in length
- 70 mm
- Impact strength
- IK02
- Degree of protection (IP)
- IP20
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Surface finishing
- Matt
- Detection angle horizontal
- 360 °
- Suitable for wall mounting
- No
- Response value luminosity adjustable
- Yes
- Optimum mounting height
- 3 m
- Pivoting range sensor, horizontal
- 360 °
- Pivoting range sensor, vertical
- 360 °
- Number of switching zones
- 1
- With DALI interface
- No
- IFTTT support available
- No
- Forced switch on
- No
- Min. depth of built-in installation box
- 60 mm
- Max. presence range
- 20 m²
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Max. switching power LED
- 350 W
- Sensor type
- Passive infrared
- Suitable for ceiling mounting
- Yes
- Anti-bacterial treatment
- No
- Country of origin
- Thailand
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 5413736374287
- SAP 1200611955
- Code 83006615
Product Documentation
Document preview: Tilst.-sensor P41MR 230V S 12-13M SF (353-601021) — Specification sheet
