Function CBS-1600A Multi-Channel Earth Leakage Monitoring Relay — 16 Channels, Type A, 30–3000 mA, RS-485 Modbus

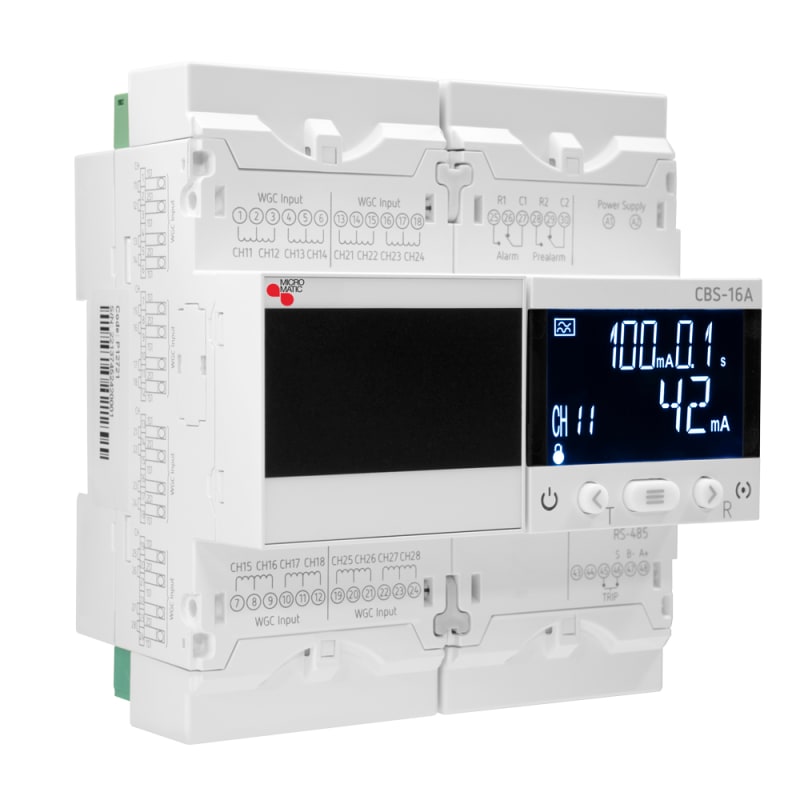

The CBS-1600A monitors sixteen circuits for earth leakage from a single three-module-wide unit, each channel through its own external toroidal transformer of the Circutor WGC range. Circutor's own designation for it is "multi-channel leakage current monitoring relay, type A". Every channel is measured and displayed independently, so the unit answers the question a single relay cannot: not merely that the installation is leaking, but which of the sixteen outgoing ways is doing it. Sensitivity is adjustable from 30 to 3000 mA. Two change-over output relays provide the alarm and the pre-alarm, and an integrated RS-485 port speaks Modbus/RTU so the readings can be logged continuously rather than read off the front panel after a trip — the basis of preventive rather than reactive maintenance. It is suitable for TT, TN and IT systems and runs from 230 V AC. It is a type A device: it responds to sinusoidal AC residual currents and to pulsating DC residual currents. Circutor specify it as superimmunised, with high-frequency filtering and true RMS (TRMS) measurement, so that the harmonic leakage normal in an installation full of switch-mode loads does not read as a fault. Manufactured by Circutor (Spain) and supplied under the Function brand; the Circutor catalogue reference is CBS-1600A. This item is listed in the Norwegian trade under the supplier shorthand "CBS-16A", which is not a Circutor model code — the manufacturer designation is CBS-1600A. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.

Manufacturer part number (MPN)

1602030

Sales unit

pcs

El-nummer (NO)

1602030

ETIM class

SC001444

External power supply required

Yes

Supply voltage AC 50 Hz

195–265 V

Supply voltage AC 60 Hz

195–265 V

Rated operating frequency

50–60 Hz

Voltage type (operating voltage)

AC

Type of electric connection

Screw connection

Rated control supply voltage AC 50 Hz

196–264 V

Rated control supply voltage AC 60 Hz

196–264 V

Voltage type for actuating

AC

With detachable clamps

Yes

Function

For AC-current system

Rated voltage

196–264 V

Rated frequency

50–60 Hz

Indication of insulation value

Yes

Error registration possible

Yes

Number of contacts as change-over contact

2

Width

105 mm

Height

118 mm

Depth

74 mm

Country of origin

Spain

Device type

Multi-channel residual current monitoring and protection relay

Number of channels

16, independently measured and displayed

Residual current type

Type A, superimmunised, TRMS measurement

Sensitivity range (IΔn)

30 – 3000 mA

Toroidal transformer series

Circutor WGC range (external, ordered separately)

Communications

RS-485, Modbus/RTU

Output relays

2 change-over (alarm and pre-alarm)

Neutral earthing arrangements

TT, TN and IT

Mounting

DIN rail

Manufacturer

Circutor, Spain

Manufacturer model

CBS-1600A

HS Code

8536.20
