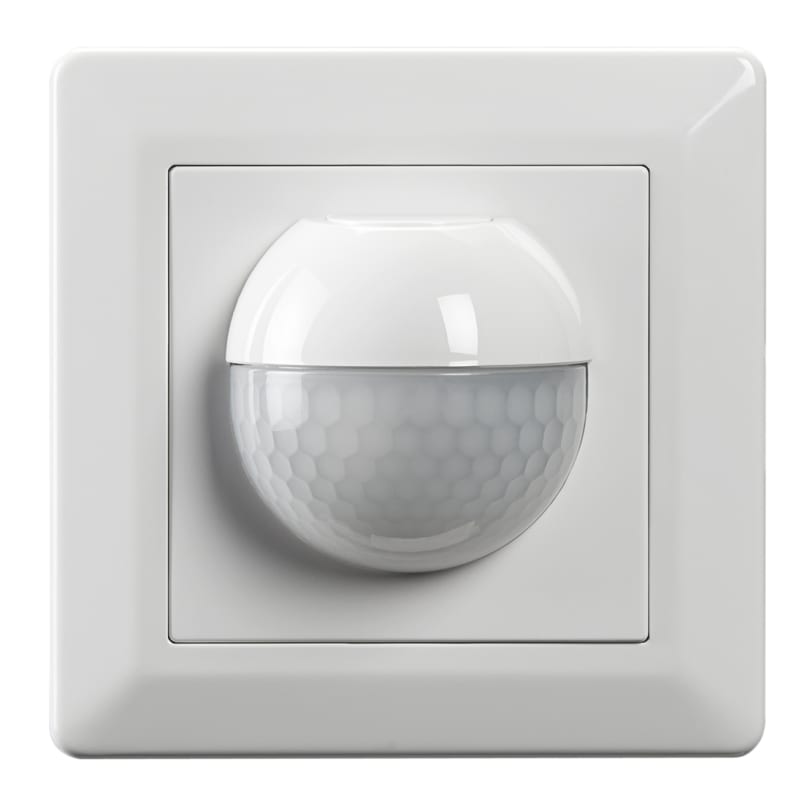

Bevegelsesmelder 180 10A
Pricing
Request a quote
We reply within 24 hours
Product Description
Function SE41204 Bevegelsesmelder 180° 10A.
Technical Specifications
- Manufacturer part number (MPN)
- SE41204
- EAN / GTIN
- 5703102206114
- Sales unit
- pcs
- Package quantity
- 80 pcs
- Rated current
- 10 A
- Nominal voltage
- 230 V
- Mounting method
- Flush-mounted
- Colour
- White
- Width
- 84 mm
- Model
- Movement sensor
- Height
- 84 mm
- Depth
- 57 mm
- Connection type
- Screwed terminal
- Voltage type
- AC
- Switch-off delay
- 1800 s
- Built-in depth
- 25 mm
- Diameter
- 84 mm
- Built-in width
- 45 mm
- Built-in diameter
- 45 mm
- Material quality
- Thermoplastic
- Max. reach frontally
- 9 m
- Max. reach sideways
- 9 m
- Max. switching power
- 2300 W
- Temperature
- -5–50 °C
- Max. starting current
- 800 A
- Material
- Plastic
- Diameter reach on floor
- 18 m
- RAL-number (similar)
- 9010
- Scan angle
- 180 °
- Built-in length
- 45 mm
- Impact strength
- IK04
- Degree of protection (IP)
- IP54
- Surface finishing
- Matt
- Min. switch-on time
- 60 s
- Max. duty cycle
- 30 min
- Suitable for wall mounting
- Yes
- Optimum mounting height
- 1.2 m
- Number of switching zones
- 1
- With DALI interface
- No
- Min. starting current
- 0 A
- Min. depth of built-in installation box
- 25 mm
- Max. presence range
- 127 m²
- Sensor type
- Passive infrared/ultrasonic (dual)
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 5703102206114
- SAP 1000333179
- Code 81077568
