Function WRU-10 RAL Self-Reclosing Earth Leakage Relay with Built-In Toroid — Type A, Ø28 mm Integral Toroid, Automatic Reclosing

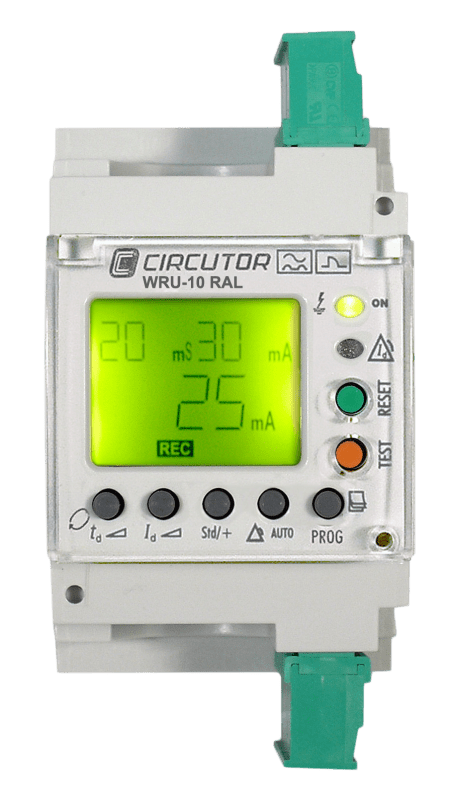

The WRU-10 RAL is the automatic self-reclosing version of the WRU-10, with the toroidal transformer built in as a Ø28 mm aperture through which the circuit conductors pass directly — relay and transformer in one three-module device, with no separate toroid to size, order or wire. Automatic reclosing is the point of the RAL variant. The great majority of earth faults on an outdoor or buried circuit are transient — moisture, a wind-blown branch, a momentary flashover — and clear themselves the instant the circuit is opened. A conventional relay treats those identically to a failed cable and leaves the load off until someone attends. This device re-closes on a programmed sequence of attempts, restoring supply in seconds, and locks out only if the fault is still present after the sequence, which is precisely the behaviour wanted on street lighting, pumping stations, irrigation, telecoms cabinets and any other unmanned site where an attendance costs more than the outage. Sensitivity and delay are adjustable. It is a type A device: it responds to sinusoidal AC residual currents and to pulsating DC residual currents. Circutor specify it as superimmunised, with high-frequency filtering and true RMS (TRMS) measurement, so that the harmonic leakage normal in an installation full of switch-mode loads does not read as a fault. Manufactured by Circutor (Spain) and supplied under the Function brand; the Circutor catalogue reference is WRU-10 RAL. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.

Manufacturer part number (MPN)

CI244530007000 EAN / GTIN: 8433059342661 Sales unit: pcs External power supply required: Yes Supply voltage AC 50 Hz: 195–265 V Supply voltage AC 60 Hz: 195–265 V Rated operating frequency: 50–60 Hz Voltage type (operating voltage): AC Type of electric connection: Screw connection With detachable clamps: Yes Function: For AC-current system Indication of insulation value: Yes Error registration possible: No Number of contacts as normally closed contact: 1 Number of contacts as normally open contact: 1 Number of contacts as change-over contact: 1 Width: 52 mm Height: 85 mm Depth: 75 mm Country of origin: Spain

Device type

Self-reclosing earth leakage relay with built-in toroidal transformer

Integral toroid aperture

Ø28 mm

Residual current type

Type A, superimmunised, TRMS measurement

Sensitivity

Adjustable

Self-reclosing

Automatic, programmable reclosing sequence with lock-out on a persistent fault

Typical application

Unmanned and remote installations — street lighting, pumping, irrigation, telecoms cabinets

Mounting

DIN rail, 3 modules

Manufacturer

Circutor, Spain

Manufacturer model

WRU-10 RAL

HS Code

8536.20
