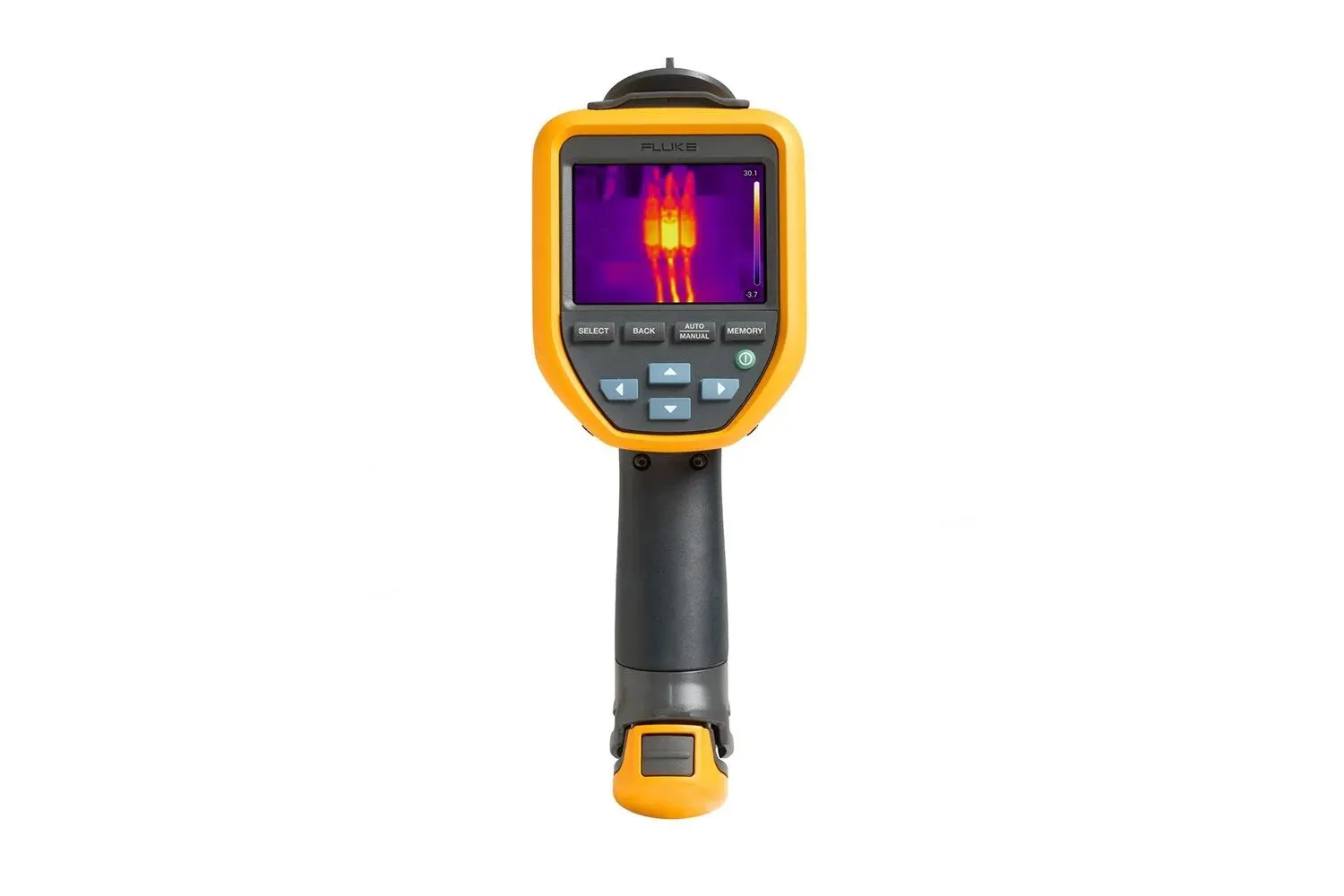

Fluke TIS20+ / TIS20+ MAX Thermal Imaging Camera

An ideal thermal imaging camera for HVAC, mechanical and electrical inspections, the Fluke TiS20+ infrared camera is 2-meter drop tested, IP54 water/dust resistant, and has a 16+ hour battery.

Manufacturer part number (MPN)

5206249 Brand: Fluke Category: Tools Infrared resolution: 120 x 90 (10,800pixels) IFOV (spatial resolution): 7.6 mRad, D:S 130:1 Field of view: 50° H x 38° V minimum focus distance: 50cm (20 inches) Focus system: Fixed focus Data transfer: Mini USB used to transfer image to PC Wireless connectivity: Yes, (802.11 b/g/n (2.4 GHz)) Fluke Connect instant upload: Yes, connect your camera to your building’s WiFi network (802.11 b/g/n (2.4 GHz)), and images taken automatically upload to the Fluke Connect system for storage and viewing on your PC IR-Fusion technology: AutoBlend continuous 0 % to 100 %. Adds the context of the visible details to your infrared image Display: 3.5" LCD touchscreen (landscape) Display resolution: 320 x 240 LCD Thermal sensitivity (NETD): 60 mK Frame rate: 9 Hz Memory: Internal 4GB memory (includes slot for optional micro SD card up to 32GB) Image capture, review, save mechanism: One-handed image capture, review, and save capability Image file formats: Non-radiometric (jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (jpeg) files Software: Fluke Connect desktop software—full analysis and reporting software with access to the Fluke Connect system Export file formats with software: JPG, IS2 Batteries (field-replaceable, rechargable): Lithium ion smart battery pack with five-segment LED display to show charge level Battery life: ≥ 5 hours continuous (without WiFi) Battery charging time: 2.5 hours to full charge Battery charging system: In-imager charging. Optional 12 V automotive charging adapter AC operation: AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) Power saving: Automatic Shutdown: 5, 10, 15 and 20 minutes or never Temperature measurement range (not calibrated below -10 °C): TiS20+: -20 °C to 150 °C (-4°F to 302°F) TiS20+ MAX -20 °C to 400°C (-4°F to 752°F) Accuracy: Target temp at or over 0 °C: Accuracy: ± 2 °C or ± 2 % at 25 °C, whichever is the greater. On-screen emissivity correction: Yes, material table On-screen reflected background temperature compensation: Yes Center-point temperature: Yes Spot temperature: Hot and cold spot markers Standard palettes: 6: Ironbow, Blue-Red, High Contrast, Amber, Hot Metal, Grayscale Infrared spectral band: 8 μm to 14 μm (long wave) Operating temperature: -10 °C to 50 °C (14 °F to 122 °F) Storage temperature: -20 °C to 50 °C without batteries Relative humidity: 95 % non-condensing Safety: IEC 61010-1: Pollution Degree 2 Electromagnetic compatibility: EN 61326-1, CISPR 11: Group 1, Class A US FCC: CFR, Part 15C Vibration and shock: 10 Hz to 150 Hz, 0.15 mm, IEC 60068-2-6; 30 g, 11 ms, IEC 60068-2-27 Drop: Engineered to withstand 2 meter drop Size (H x W x L): 26.7 cm x 10.1 cm x 14.5 cm (10.5 in x 4.0 in x 5.7 in) Weight: 0.72 kg (1.6 lb) Enclosure rating: IP54 (protected against dust, limited ingress; protection against water spray from all directions) Warranty: Two-years (standard) Supported languages: Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
