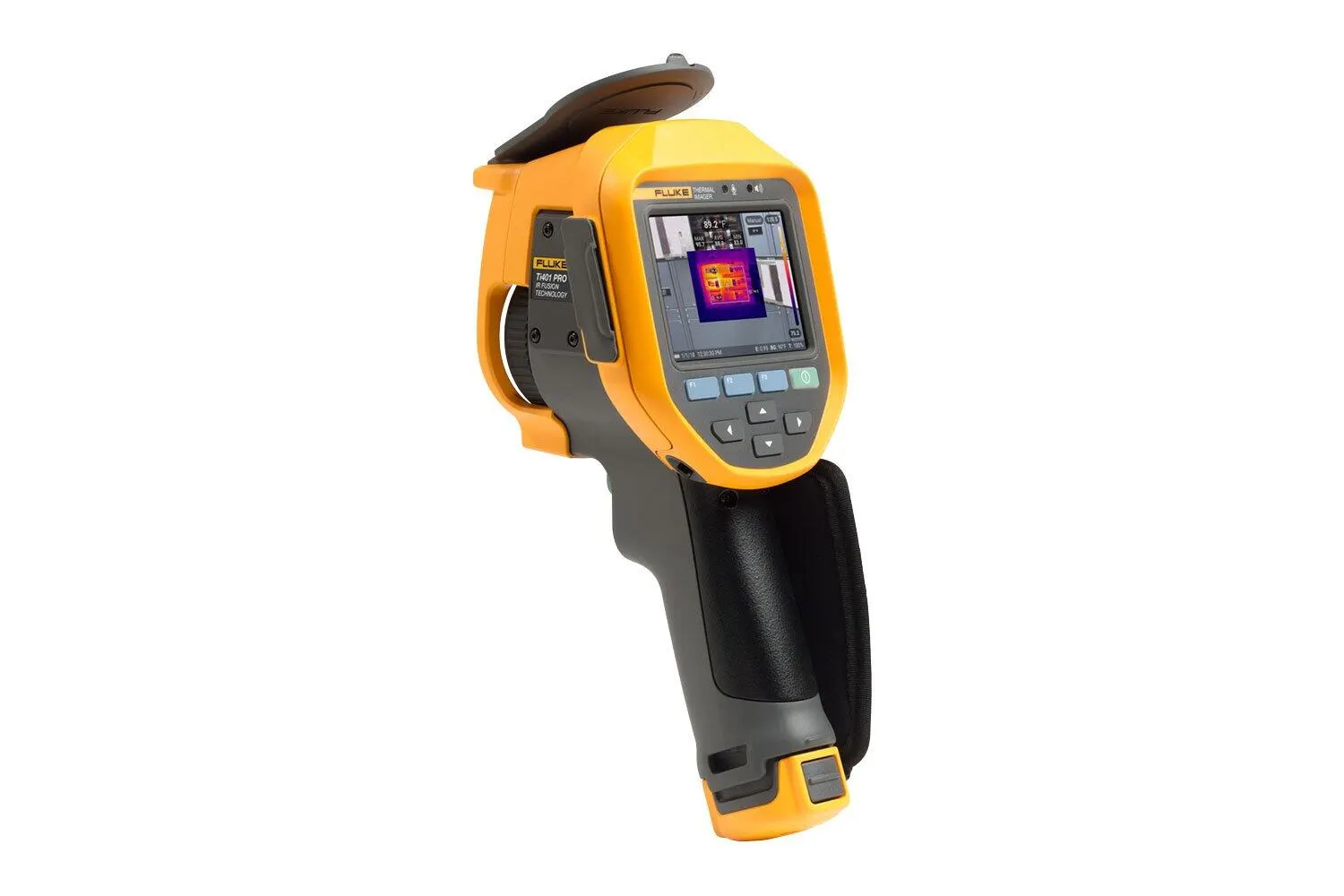

Fluke TI401 PRO Thermal Camera 5085041

Choose the highest resolution thermal camera in its price range. The Fluke Ti401 PRO thermal camera with 640x480 resolution is a valuable tool for your preventive maintenance program. Take advantage of advanced analytics software that offers asset tagging, streaming IR data and trend analysis.

Manufacturer part number (MPN)

5085041 Brand: Fluke Category: Tools Infrared resolution: 640 x 480 (307,200 pixels) SuperResolution: No IFOV with standard lens (spatial resolution): 0.93 mRad, D:S 1065:1 Field of view: 34 °H x 24 °V minimum focus distance: 15 cm (approx. 6 in) MultiSharp Focus: No LaserSharp Auto Focus: Yes, for consistently in-focus images. Every. Single. Time. Laser distance meter: Yes, calculates distance to the target for precisely focused images and displays distance on screen Advanced manual focus: Yes Wireless connectivity: Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available) Fluke Connect app compatible: Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing Fluke Connect Assets: Through the desktop, assign images to assets, easily compare measurement types in one location and create reports. Fluke Connect instant cloud upload: Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC Fluke Connect instant server upload: Yes** IR-Fusion technology: Yes, adds the context of the visible details to your infrared image Ruggedized touchscreen display: 3.5 inch (landscape), 640 x 480 LCD Ergonomic design: Pistol-grip design for one-handed use Thermal sensitivity (NETD)**: ≤0.075 °C at 30 °C target temp (75 mK) Level and span: Smooth auto and manual scaling Touchscreen adjustable level/span: Yes. Span and level can be easily and quickly set by simply touching the screen Fast auto toggle between manual and auto modes: Yes Fast auto-rescale in manual mode: Yes minimum span (in manual mode): 2.0 °C (3.6 °F) minimum span (in auto mode): 3.0 °C (5.4 °F) Built-in digital camera (visible light): 5MP Frame rate: 60 Hz or 9 Hz versions Laser pointer: Yes LED light (torch): Yes digital zoom: No Extensive memory options: Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload for permanent storage Image capture, review, save mechanism: One-handed image capture, review, and save capability Image file formats: bmp, jpeg, is2 Memory review: Thumbnail and full screen review Software: Full analysis and reporting software with access to the Fluke Connect system Analyze and store radiometric data on a PC: Yes Export file formats with Fluke Connect software: Bitmap (.bmp), GIF, JPEG, PNG, TIFF Voice annotation: 60 seconds maximum recording time per image; reviewable playback on camera, optional Bluetooth headset available but not required IR-PhotoNotes: Yes - 2 images Text annotations: Yes. Including standard shortcuts as well as user programmable options Video recording and formats: No Remote control operations: Remote display through Fluke Connect Auto capture (temperature and interval): No Batteries (field-replaceable, rechargeable): Two lithium ion smart battery packs with five-segment LED display to show charge level Battery life: 2-3 hours per battery (actual life varies depending on settings and usage) Battery charging time: 2.5 hours to full charge Battery charging system: Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter AC operation: AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) Power saving: User selectable sleep and power off modes Temperature measurement range (not calibrated below -10 °C): -20 °C to +650 °C (-4 °F to +1,202 °F) Accuracy: ±2 °C or 2 % (at 25 °C nominal, whichever is greater) On-screen emissivity correction: Yes (both value and table) On-screen reflected background temperature compensation: Yes On-screen transmission correction: Yes Line temperature graph: No Standard palettes: 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted Ultra Contrast palettes: 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted Color alarms (temperature alarms): High temperature, low temperature, and isotherms (within range) Infrared spectral band: 7.5 μm to 14 μm (long wave) Operating temperature: -10 °C to +50 °C (+14 °F to +122 °F) Storage temperature: -20 °C to +50 °C (-4 °F to +122 °F) Relative humidity: 10 % to 95 % non-condensing Center-point temperature measurement: Yes Spot temperature: Hot and cold spot markers User-definable spot markers: No User defined measurement boxes: 1 expandable-contractible measurement box with MIN-MAX-AVG temp display Hard Case: Rugged, hard carrying case; soft transport bag Safety: IEC 61010-1: Overvoltage category II, Pollution Degree 2 Electromagnetic compatibility: IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A Australian RCM: IEC 61326-1 US FCC: CFR 47, Part 15 Subpart B Vibration: 0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6 Shock: 25 g, IEC 68-2-29 Drop: Engineered to withstand 2 meter (6.5 feet) drop with standard lens Size (H x W x L): 27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in) Weight (battery included): 1.04 kg (2.3 lb) Enclosure rating: IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions) Warranty: Two-years (standard), extended warranties are available Recommended calibration cycle: Two-years (assumes normal operation and normal aging) Supported languages: Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish RoHS compliant: Yes

• OEM-URL https://www.fluke.com/en-us/product/thermal-cameras/ti401-pro
